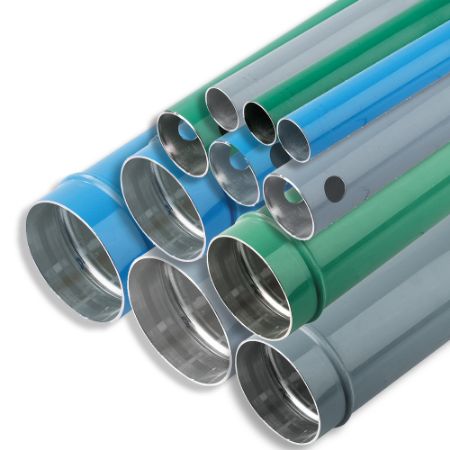

Transair® Aluminum Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair’s modular aluminum pipe delivers superior performance for compressed air, vacuum, and inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe overtime. All Transair aluminum pipes leave the factory with a QUALICOAT certified coating for protection against environmental effects. Transair will not add additional contaminates into a compressed air system. The quality of air leaving the compressor room will remain unchanged in a Transair system.
With Transair, there is no need to paint the piping to indicate the media being conveyed. Transair comes in 3 standard colors: Blue for compressed air, Gray for vacuum, and Green for industrial/inert gases. For additional colors, please contact Transair customer service.
A Transair system can integrate into existing copper and steel compressed air systems without compromising performance, making it ideal for system upgrades or expansions. The lightweight materials, quick connection technology and minimal required tooling allow a Transair system to be installed 4x faster than traditional methods. All Transair components are 100% recyclable, reusable, and silicone free. Parker warranties all Transair parts for 10 years against manufacturing defects.
Markets:
• Automotive Assembly
• Food &Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Optimum flow rate
• 100% Recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (16bar) when the system is operated between -4 to +115 F (-20 to +46.1 C)
• 6" to 8": 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
Read More...With Transair, there is no need to paint the piping to indicate the media being conveyed. Transair comes in 3 standard colors: Blue for compressed air, Gray for vacuum, and Green for industrial/inert gases. For additional colors, please contact Transair customer service.
A Transair system can integrate into existing copper and steel compressed air systems without compromising performance, making it ideal for system upgrades or expansions. The lightweight materials, quick connection technology and minimal required tooling allow a Transair system to be installed 4x faster than traditional methods. All Transair components are 100% recyclable, reusable, and silicone free. Parker warranties all Transair parts for 10 years against manufacturing defects.
Markets:
• Automotive Assembly
• Food &Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Optimum flow rate
• 100% Recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (16bar) when the system is operated between -4 to +115 F (-20 to +46.1 C)
• 6" to 8": 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
| Action | Part No. | Availability | Partner Available | Price | Quantity per Box | Brand | Division | Shape | Maximum Operating Temperature | Minimum Operating Temperature | Industry | Technology | Division | Application | Color | Length | Weight | Product Type | Assembly Time | Body Material | Configuration | Outside Diameter | Specifications Met | Vacuum Pressure Rating | Maximum Operating Pressure | Size | For Fluid Type | Connection 1 Type | Length (m) | Length (ft) | Pipe O.D. (mm) | Pipe O.D. (inch) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1003A17 04 00 | Quote Required | TBD | 10 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -4 °F | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Blue | 3 m | 1,455 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1/2 inch | EN 573.3 | 0.03 inch-Hg | 232 psi | 16.5 mm | Industrial Gas | Pipe | 3 | 10 | 16.5 | 1/2 | Blue | ||
| 1003A17 06 00 | Quote Required | TBD | 10 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -4 °F | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Compressed Air | Gray | 3 m | 1,455 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1/2 inch | ASME B31.1 - 31.9 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 16.5 mm | Air | Pipe | 3 | 10 | 16.5 | 1/2 | Gray | ||
| 1003A25 04 00 | Quote Required | TBD | 6 | Parker | Low Pressure Connectors Europe Division | Straight | 85 °C | -4 °F | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Blue | 3 m | 2,292 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1 inch | ASME B31.1 - 31.9 | 1 mbar | 232 psi | 1 inch | Industrial Gas | Pipe | 3 | 10 | 25 | 1 | Blue | ||
| 1003A25 06 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -20 °C | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Vacuum | Gray | 3 m | 2,292 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1 inch | ASME B31.1 - 31.9 | 1 mbar | 232 psi | 1 inch | Industrial Gas | Pipe | 3 | 10 | 25 | 1 | Gray | ||
| 1003A40 04 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -4 °F | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Vacuum | Blue | 10 ft | 3,262 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1-1/2 inch | TUV | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 40 mm | Air | Pipe | 3 | 10 | 40 | 1-1/2 | Blue | ||
| 1003A40 06 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 185 °F | -20 °C | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Gray | 3 m | 1,48 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1-1/2 inch | EN 573.3 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 40 mm | Air | Pipe | 3 | 10 | 40 | 1-1/2 | Gray | ||
| 1003A50 04 | Quote Required | TBD | 5 | Parker | Low Pressure Connectors Europe Division | Straight | 85 °C | -20 °C | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Compressed Air | Blue | 10 ft | 2,142 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 50 mm | EN 573.3 | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 50.8 mm | Air | Pipe | 3 | 10 | 50.8 | 2 | Blue | ||
| 1003A50 06 | Quote Required | TBD | 5 | Transair | Low Pressure Connectors Europe Division | Straight | 185 °F | -20 °C | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Vacuum | Gray | 10 ft | 4,722 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 2 inch | ASME B31.1 - 31.9 | 0.03 inch-Hg | 232 psi | 2 inch | Air | Pipe | 3 | 10 | 50.8 | 2 | Gray | ||
| 1003A63 04 | Quote Required | TBD | 4 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -20 °C | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Industrial Gas | Blue | 10 ft | 6,922 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 63 mm | EN 755.2 | 0.03 inch-Hg | 232 psi | 2-1/2 inch | Air | Pipe | 3 | 10 | 63 | 2-1/2 | Blue | ||
| 1003A63 06 | Quote Required | TBD | 4 | Parker | Low Pressure Connectors Europe Division | Straight | 185 °F | -4 °F | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Gray | 10 ft | 3,140 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 63 mm | QUALICOAT | 1 mbar | 232 psi | 2-1/2 inch | Industrial Gas | Pipe | 3 | 10 | 63 | 2-1/2 | Gray | ||
| 1004A17 02 | Quote Required | TBD | 10 | Parker | Low Pressure Connectors Europe Division | Straight | 185 °F | -4 °F | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Compressed Air | Green | 4,5 m | 0,990 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 16.5 mm | EN 755.8 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 16.5 mm | Industrial Gas | Pipe | 4,5 | 15 | 16.5 | 1/2 | Green | ||
| 1004A17 04 | Quote Required | TBD | 10 | Parker | Low Pressure Connectors Europe Division | Straight | 85 °C | -20 °C | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Compressed Air | Blue | 4,5 m | 0,99 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 16.5 mm | ISO 9001 | 1 mbar | 232 psi | 16.5 mm | Industrial Gas | Pipe | 4,5 | 15 | 16.5 | 1/2 | Blue | ||
| 1006A25 02 00 | Quote Required | TBD | 6 | Parker | Low Pressure Connectors Europe Division | Straight | 185 °F | -4 °F | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Green | 6 m | 4,261 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1 inch | ISO 8573 (Air Quality) | 1 mbar | 232 psi | 1 inch | Industrial Gas | Pipe | 6 | 20 | 25 | 1 | Green | ||
| 1006A25 04 00 | Quote Required | TBD | 6 | Parker | Low Pressure Connectors Europe Division | Straight | 85 °C | -4 °F | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Inert Gases | Blue | 20 ft | 4,261 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1 inch | CE 2014/68/EU | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 1 inch | Industrial Gas | Pipe | 6 | 20 | 25 | 1 | Blue | ||
| 1006A25 06 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -20 °C | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Vacuum | Gray | 6 m | 4,261 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 25 mm | EN 573.3 | 1 mbar | 232 psi | 25 mm | Air | Pipe | 6 | 20 | 25 | 1 | Gray | ||
| 1006A40 02 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 185 °F | -20 °C | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Green | 6 m | 2,86 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 40 mm | EN 755.2 | 0.03 inch-Hg | 232 psi | 1-1/2 inch | Air | Pipe | 6 | 20 | 40 | 1-1/2 | Green | ||
| 1006A40 04 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 185 °F | -20 °C | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Vacuum | Blue | 20 ft | 2,860 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 1-1/2 inch | TUV | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 40 mm | Air | Pipe | 6 | 20 | 40 | 1-1/2 | Blue | ||
| 1006A40 06 00 | Quote Required | TBD | 6 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -4 °F | General Industrial | Fluid & Gas Handling | Low Pressure Connectors Europe Division | Industrial Gas | Gray | 6 m | 6,305 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 40 mm | QUALICOAT | 1 mbar | 232 psi | 1-1/2 inch | Air | Pipe | 6 | 20 | 40 | 1-1/2 | Gray | ||
| 1006A50 02 | Quote Required | TBD | 5 | Transair | Low Pressure Connectors Europe Division | Straight | 85 °C | -20 °C | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Industrial Gas | Green | 6 m | 9,523 lb | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 50 mm | EN 755.2 | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 2 inch | Industrial Gas | Pipe | 6 | 20 | 50.8 | 2 | Green | ||
| 1006A50 04 | Quote Required | TBD | 5 | Parker | Low Pressure Connectors Europe Division | Straight | 185 °F | -4 °F | General Industrial | Pneumatics | Low Pressure Connectors Europe Division | Compressed Air | Blue | 20 ft | 4,320 kg | Rigid Aluminum Pipe | 0.05 Hours | Treated Aluminum | Pipe to Pipe | 50 mm | ASME B31.1 - 31.9 | 1 mbar | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 50.8 mm | Industrial Gas | Pipe | 6 | 20 | 50.8 | 2 | Blue |
