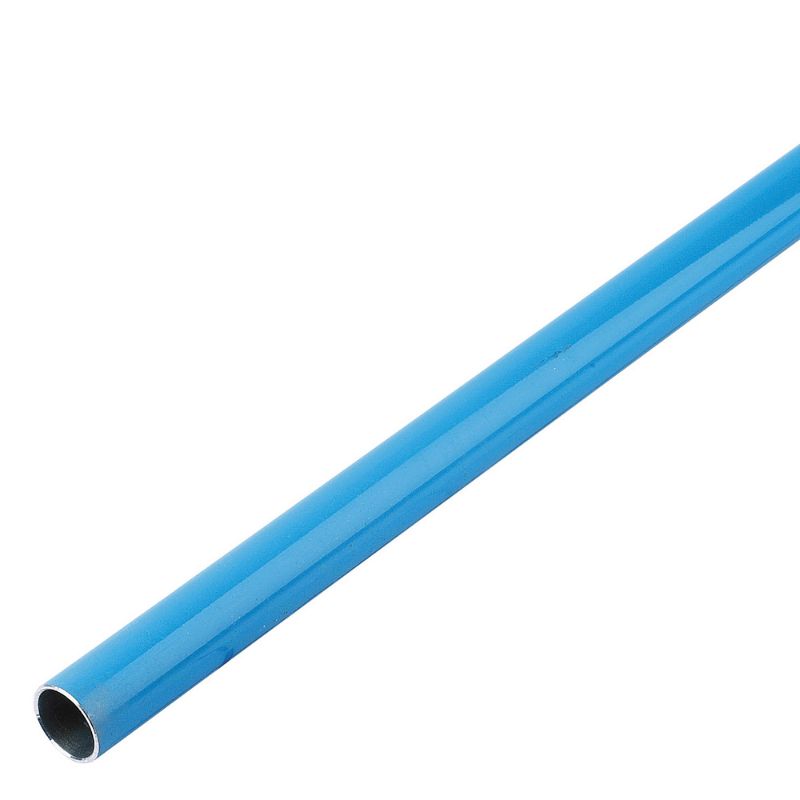

Parker 1016A25 04 00 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	2003 In Stock

Brand Parker

Part No. 1016A25 04 00

$114.67

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Application	Vacuum	Color	Blue
Length	6 m	Product Type	Rigid Aluminum Pipe
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Outside Diameter	25 mm
Quantity per Box	6	Specifications Met	EN 755.2
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Size	1 inch
For Fluid Type	Air	Connection 1 Type	Pipe
Weight	1,923 kg	Length (m)	6
Length (ft)	20	Pipe O.D. (mm)	25
Pipe O.D. (inch)	1	Color	Blue
