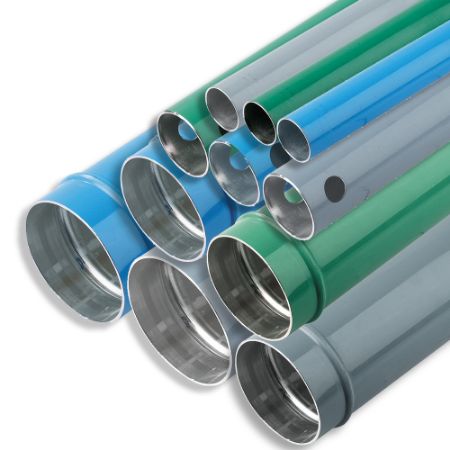

Transair® Aluminum Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair’s modular aluminum pipe delivers superior performance for compressed air, vacuum, and inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe overtime. All Transair aluminum pipes leave the factory with a QUALICOAT certified coating for protection against environmental effects. Transair will not add additional contaminates into a compressed air system. The quality of air leaving the compressor room will remain unchanged in a Transair system.
With Transair, there is no need to paint the piping to indicate the media being conveyed. Transair comes in 3 standard colors: Blue for compressed air, Gray for vacuum, and Green for industrial/inert gases. For additional colors, please contact Transair customer service.
A Transair system can integrate into existing copper and steel compressed air systems without compromising performance, making it ideal for system upgrades or expansions. The lightweight materials, quick connection technology and minimal required tooling allow a Transair system to be installed 4x faster than traditional methods. All Transair components are 100% recyclable, reusable, and silicone free. Parker warranties all Transair parts for 10 years against manufacturing defects.
Markets:
• Automotive Assembly
• Food &Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Optimum flow rate
• 100% Recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (16bar) when the system is operated between -4 to +115 F (-20 to +46.1 C)
• 6" to 8": 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
Read More...With Transair, there is no need to paint the piping to indicate the media being conveyed. Transair comes in 3 standard colors: Blue for compressed air, Gray for vacuum, and Green for industrial/inert gases. For additional colors, please contact Transair customer service.
A Transair system can integrate into existing copper and steel compressed air systems without compromising performance, making it ideal for system upgrades or expansions. The lightweight materials, quick connection technology and minimal required tooling allow a Transair system to be installed 4x faster than traditional methods. All Transair components are 100% recyclable, reusable, and silicone free. Parker warranties all Transair parts for 10 years against manufacturing defects.
Markets:
• Automotive Assembly
• Food &Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Optimum flow rate
• 100% Recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (16bar) when the system is operated between -4 to +115 F (-20 to +46.1 C)
• 6" to 8": 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
| Action | Part No. | Availability | Partner Available | Price | Division | Technology | Assembly Time | Maximum Operating Temperature | Size | Quantity per Box | Color | Brand | Outside Diameter | Vacuum Pressure Rating | Configuration | For Fluid Type | Specifications Met | Length | Connection 1 Type | Weight | Maximum Operating Pressure | Industry | Body Material | Minimum Operating Temperature | Shape | Division | Product Type | Application | Color | Length (m) | Length (ft) | Pipe O.D. (mm) | Pipe O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1012A17 04 00 | Quote Required | 43 In Stock | $37.77/each | Fluid System Connectors Division | Pneumatics | 0.05 Hours | 185 °F | 16.5 mm | 10 | Blue | Parker | 16.5 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | EN 755.2 | 3 m | Pipe | 0,639 kg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Compressed Air | Blue | 3 | 9 | 16.5 | 1/2 | |
| 1012A25 04 00 | Quote Required | 99 In Stock | $53.22/each | Low Pressure Connectors Europe Division | Fluid & Gas Handling | 0.05 Hours | 185 °F | 25 mm | 6 | Blue | Transair | 1 inch | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | ISO 8573 (Air Quality) | 3 m | Pipe | 2,120 lb | 232 psi | General Industrial | Treated Aluminum | -20 °C | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Compressed Air | Blue | 3 | 9 | 25 | 1 | |
| 1012A40 04 00 | Quote Required | 39 In Stock | $83.96/each | Low Pressure Connectors Europe Division | Pneumatics | 0.05 Hours | 185 °F | 1-1/2 inch | 6 | Blue | Parker | 40 mm | 0.03 inch-Hg | Pipe to Pipe | Air | EN 573.3 | 3 m | Pipe | 3,110 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -20 °C | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Vacuum | Blue | 3 | 9 | 40 | 1-1/2 | |
| 1013A50 04 | Quote Required | 1 Limited Stock | $59.13/each | Fluid System Connectors Division | Pneumatics | 0.05 Hours | 85 °C | 50 mm | n/a | Blue | Parker | 50 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | QUALICOAT | 10 ft | Pipe | 2,177 kg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Inert Gases | Blue | 3 | 10 | 50.8 | 2 | |
| 1014A17 04 | Quote Required | 185 In Stock | $61.40/each | Fluid System Connectors Division | Pneumatics | 0.05 Hours | 85 °C | 16.5 mm | 10 | Blue | Parker | 16.5 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | EN 755.2 | 15 ft | Pipe | 2,110 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Vacuum | Blue | 4,5 | 15 | 16.5 | 1/2 | |
| 1016A25 02 00 | Quote Required | 76 In Stock | $123.80/each | Low Pressure Connectors Europe Division | Pneumatics | 0.05 Hours | 85 °C | 1 inch | 6 | Green | Parker | 25 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | ISO 9001 | 20 ft | Pipe | 1,923 kg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -20 °C | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Compressed Air | Green | 6 | 20 | 25 | 1 | |
| 1016A25 04 00 | Quote Required | 1384 In Stock | $139.01/each | Low Pressure Connectors Europe Division | Fluid & Gas Handling | 0.05 Hours | 185 °F | 1 inch | 6 | Blue | Parker | 25 mm | 0.03 inch-Hg | Pipe to Pipe | Air | EN 755.2 | 6 m | Pipe | 1,923 kg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -20 °C | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Vacuum | Blue | 6 | 20 | 25 | 1 | |
| 1016A25 06 00 | Quote Required | 58 In Stock | $123.80/each | Fluid System Connectors Division | Pneumatics | 0.05 Hours | 85 °C | 25 mm | 6 | Gray | Transair | 25 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | TUV | 6 m | Pipe | 4,240 lb | 232 psi | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Vacuum | Gray | 6 | 20 | 25 | 1 | |
| 1016A40 04 00 | Quote Required | 1088 In Stock | $175.00/each | Fluid System Connectors Division | Fluid & Gas Handling | 0.05 Hours | 185 °F | 40 mm | 6 | Blue | Parker | 40 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | CE 2014/68/EU | 20 ft | Pipe | 6,220 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Compressed Air | Blue | 6 | 20 | 40 | 1-1/2 | |
| 1016A40 06 00 | Quote Required | 3 In Stock | $175.00/each | Fluid System Connectors Division | Fluid & Gas Handling | 0.05 Hours | 185 °F | 1-1/2 inch | 6 | Gray | Parker | 1-1/2 inch | 0.03 inch-Hg | Pipe to Pipe | Air | CE 2014/68/EU | 6 m | Pipe | 2,821 kg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Inert Gases | Gray | 6 | 20 | 40 | 1-1/2 | |
| 1016A50 04 | Quote Required | 1529 In Stock | $199.40/each | Low Pressure Connectors Europe Division | Fluid & Gas Handling | 0.05 Hours | 185 °F | 2 inch | 4 | Blue | Transair | 50 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | ISO 9001 | 6 m | Pipe | 9,676 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Inert Gases | Blue | 6 | 20 | 50.8 | 2 | |
| 1016A63 04 | Quote Required | 193 In Stock | $262.50/each | Low Pressure Connectors Europe Division | Fluid & Gas Handling | 0.05 Hours | 85 °C | 63 mm | 4 | Blue | Parker | 63 mm | 0.03 inch-Hg | Pipe to Pipe | Air | ISO 8573 (Air Quality) | 6 m | Pipe | 13,840 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Compressed Air | Blue | 6 | 20 | 63 | 2-1/2 | |
| TA16 L1 04 | Quote Required | 166 In Stock | $335.31/each | Low Pressure Connectors Europe Division | Pneumatics | 0.15 Hours | 85 °C | 3 inch | 1 | Blue | Transair | 3 inch | 0.03 inch-Hg | Pipe to Pipe | Air | EN 755.8 | 6 m | Pipe | 16,980 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Industrial Gas | Blue | 6 | 20 | 76.3 | 3 | |
| TA16 L1 06 | Quote Required | $326.12/each | Fluid System Connectors Division | Fluid & Gas Handling | 0.15 Hours | 85 °C | 76.3 mm | 1 | Gray | Parker | 76 mm | 0.03 inch-Hg | Pipe to Pipe | Industrial Gas | EN 755.2 | 20 ft | Pipe | 16,980 lb | 232 psi | General Industrial | Treated Aluminum | -20 °C | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Vacuum | Gray | 6 | 20 | 76.3 | 3 | ||
| TA16 L3 04 | Quote Required | 115 In Stock | $492.45/each | Low Pressure Connectors Europe Division | Pneumatics | 0.15 Hours | 185 °F | 101.8 mm | 1 | Blue | Transair | 4 inch | 0.03 inch-Hg | Pipe to Pipe | Air | ISO 8573 (Air Quality) | 20 ft | Pipe | 25,690 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | General Industrial | Treated Aluminum | -4 °F | Straight | Fluid System Connectors Division | Rigid Aluminum Pipe | Vacuum | Blue | 6 | 20 | 101.8 | 4 |
