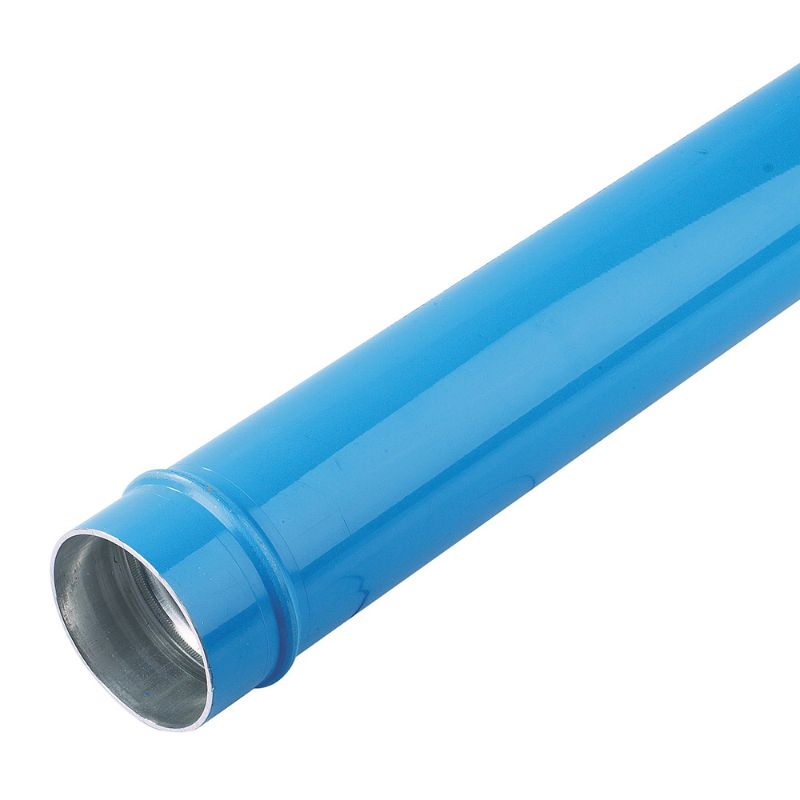

Parker TA16 L1 04 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

AFP Availability:	Quote Required
Partner Available:	124 In Stock

Brand Parker

Part No. TA16 L1 04

$335.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Low Pressure Connectors Europe Division
Assembly Time	0.15 Hours	Technology	Pneumatics
Maximum Operating Temperature	85 °C	Vacuum Pressure Rating	0.03 inch-Hg
Configuration	Pipe to Pipe	For Fluid Type	Air
Body Material	Treated Aluminum	Quantity per Box	1
Size	3 inch	Connection 1 Type	Pipe
Length	6 m	Specifications Met	EN 755.8
Minimum Operating Temperature	-4 °F	Application	Industrial Gas
Division	Fluid System Connectors Division	Product Type	Rigid Aluminum Pipe
Shape	Straight	Industry	General Industrial
Outside Diameter	3 inch	Color	Blue
Brand	Transair	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Weight	16,980 lb	Pipe O.D. (inch)	3
Length (m)	6	Length (ft)	20
Color	Blue	Pipe O.D. (mm)	76.3
