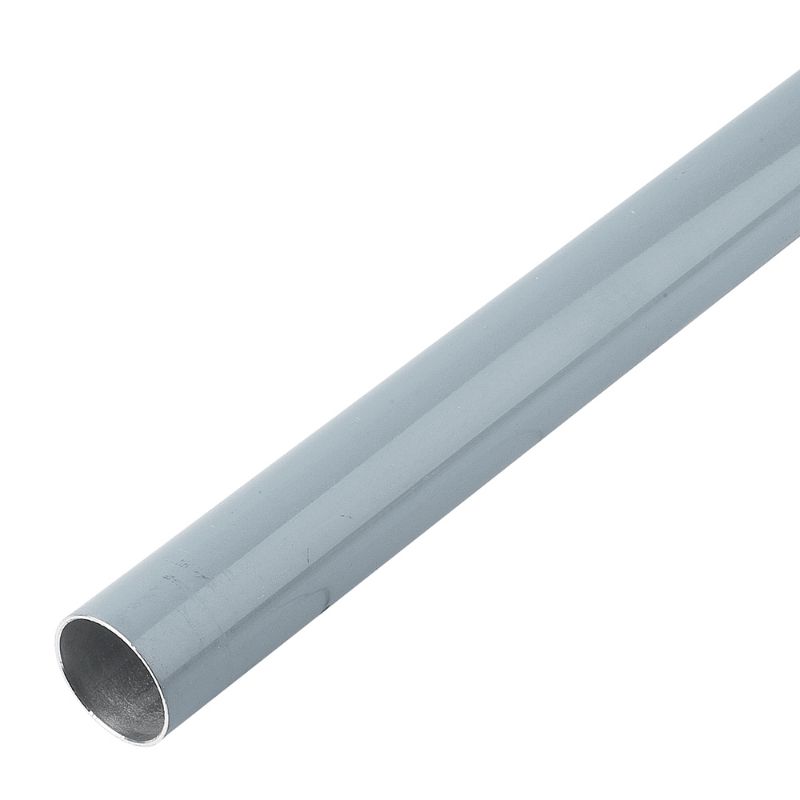

Parker 1016A40 06 00 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

AFP Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. 1016A40 06 00

$175.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	185 °F
Technology	Fluid & Gas Handling	Assembly Time	0.05 Hours
Quantity per Box	6	Size	1-1/2 inch
Outside Diameter	1-1/2 inch	Vacuum Pressure Rating	0.03 inch-Hg
Configuration	Pipe to Pipe	For Fluid Type	Air
Division	Fluid System Connectors Division	Specifications Met	CE 2014/68/EU
Length	6 m	Connection 1 Type	Pipe
Brand	Parker	Weight	2,821 kg
Industry	General Industrial	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Color	Gray	Body Material	Treated Aluminum
Shape	Straight	Product Type	Rigid Aluminum Pipe
Division	Fluid System Connectors Division	Minimum Operating Temperature	-4 °F
Application	Inert Gases	Length (m)	6
Length (ft)	20	Pipe O.D. (mm)	40
Pipe O.D. (inch)	1-1/2	Color	Gray
