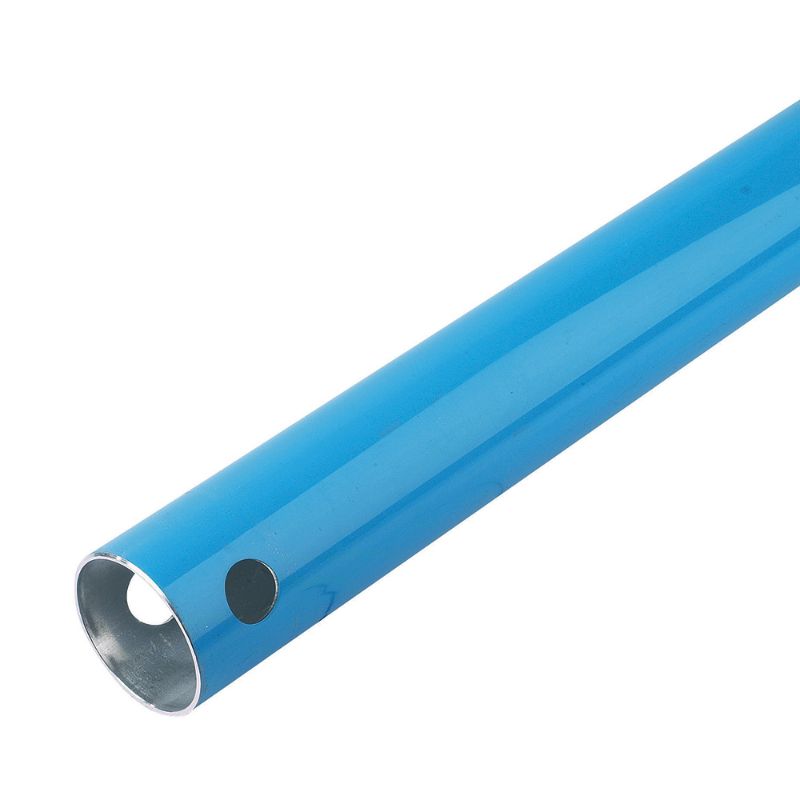

Parker 1016A50 04 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

AFP Availability:	Quote Required
Partner Available:	2093 In Stock

Brand Parker

Part No. 1016A50 04

$199.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Industrial Gas
Vacuum Pressure Rating	0.03 inch-Hg	Configuration	Pipe to Pipe
Technology	Fluid & Gas Handling	Maximum Operating Temperature	185 °F
Assembly Time	0.05 Hours	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Weight	9,676 lb
Brand	Transair	Outside Diameter	50 mm
Industry	General Industrial	Color	Blue
Division	Fluid System Connectors Division	Product Type	Rigid Aluminum Pipe
Application	Inert Gases	Shape	Straight
Minimum Operating Temperature	-4 °F	Connection 1 Type	Pipe
Specifications Met	ISO 9001	Length	6 m
Quantity per Box	4	Size	2 inch
Body Material	Treated Aluminum	Length (m)	6
Length (ft)	20	Pipe O.D. (mm)	50.8
Pipe O.D. (inch)	2	Color	Blue
