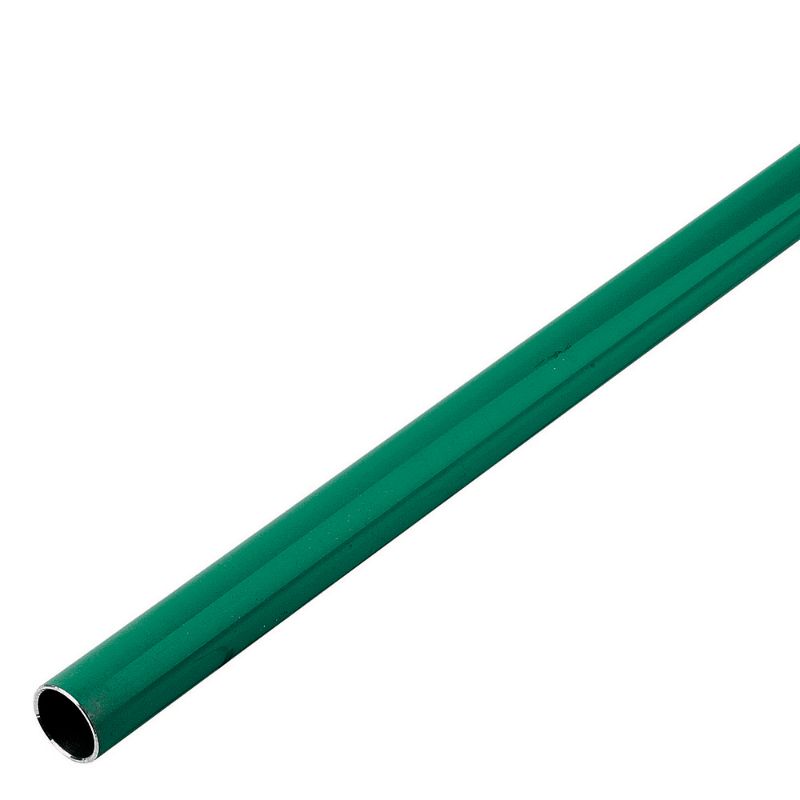

Parker 1016A25 02 00 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	77 In Stock

Brand Parker

Part No. 1016A25 02 00

$114.67

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Application	Compressed Air	Color	Green
Length	20 ft	Technology	Pneumatics
Product Type	Rigid Aluminum Pipe	Assembly Time	0.05 Hours
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
Outside Diameter	25 mm	Quantity per Box	6
Specifications Met	ISO 9001	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Size	1 inch
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Weight	1,923 kg	Length (m)	6
Length (ft)	20	Pipe O.D. (mm)	25
Pipe O.D. (inch)	1	Color	Green
