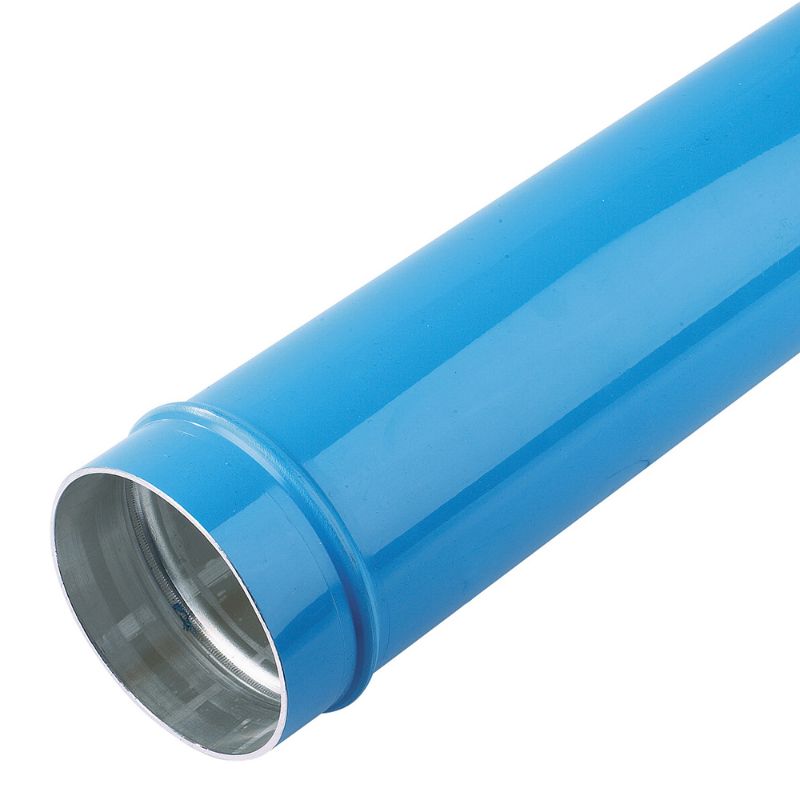

Parker TA16 L3 04 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	67 In Stock

Brand Parker

Part No. TA16 L3 04

$456.14

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Rigid Aluminum Pipe
Length	20 ft	Minimum Operating Temperature	-4 °F
Maximum Operating Temperature	185 °F	Shape	Straight
Division	Low Pressure Connectors Europe Division	Technology	Pneumatics
Configuration	Pipe to Pipe	Vacuum Pressure Rating	0.03 inch-Hg
For Fluid Type	Air	Industry	General Industrial
Specifications Met	ISO 8573 (Air Quality)	Brand	Transair
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Body Material	Treated Aluminum
Assembly Time	0.15 Hours	Outside Diameter	4 inch
Color	Blue	Size	101.8 mm
Connection 1 Type	Pipe	Quantity per Box	1
Weight	25,690 lb	Application	Vacuum
Division	Fluid System Connectors Division	Color	Blue
Length (ft)	20	Length (m)	6
Pipe O.D. (mm)	101.8	Pipe O.D. (inch)	4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)
