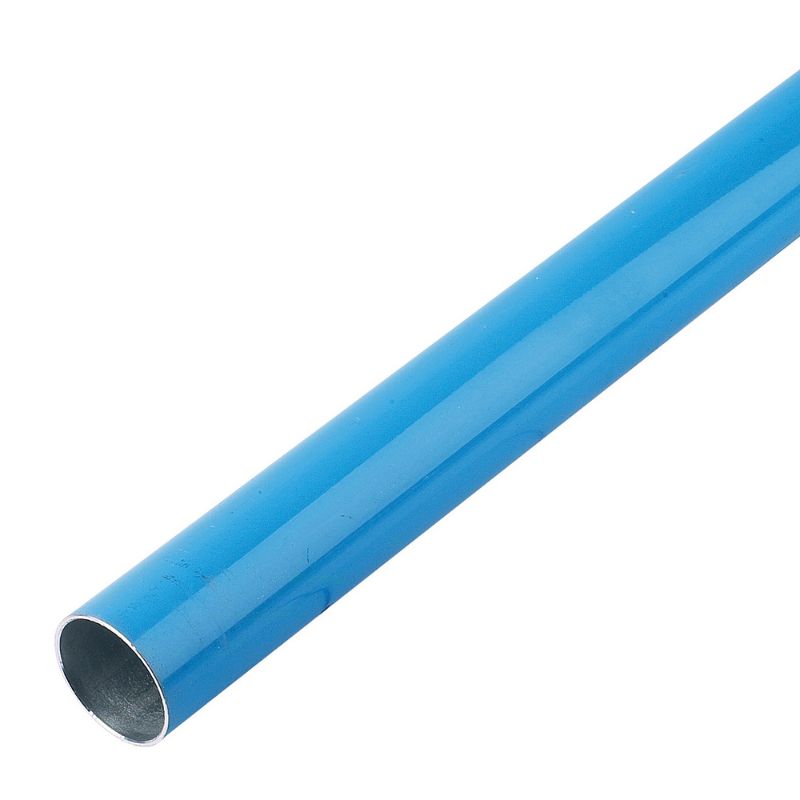

Parker 1016A40 04 00 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	1247 In Stock

Brand Parker

Part No. 1016A40 04 00

$162.11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Application	Compressed Air	Color	Blue
Length	20 ft	Product Type	Rigid Aluminum Pipe
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Outside Diameter	40 mm
Quantity per Box	6	Specifications Met	CE 2014/68/EU
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Size	40 mm
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Weight	6,220 lb	Length (m)	6
Length (ft)	20	Pipe O.D. (mm)	40
Pipe O.D. (inch)	1-1/2	Color	Blue
