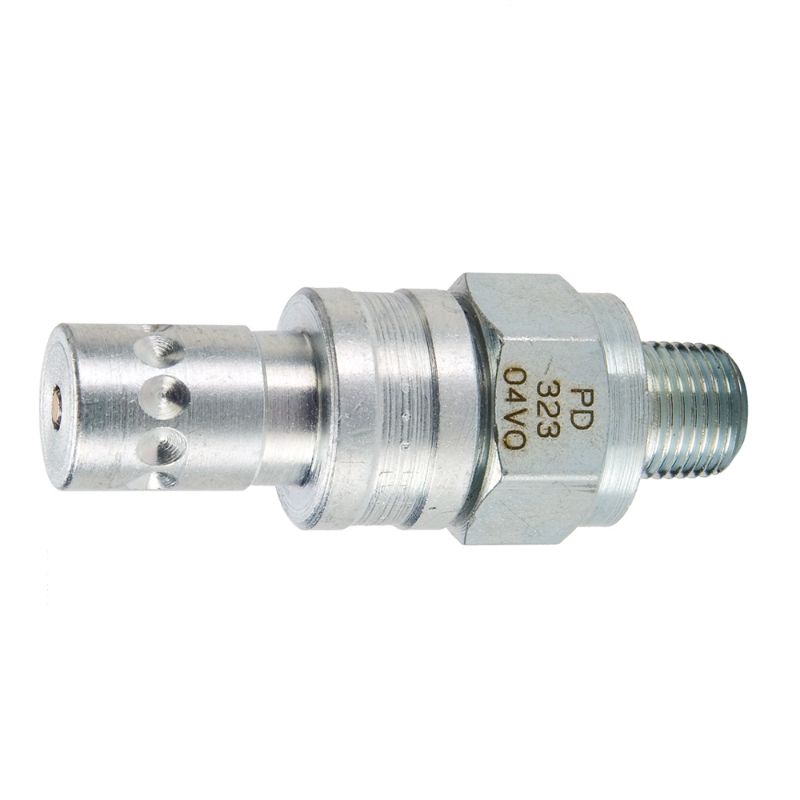

Parker PDP343 - Connect Under Pressure, Test Port, Diagnostic Quick Couplings - PDP Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	42 In Stock

Brand Parker

Part No. PDP343

$82.40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	6000 psi
Application	Diagnostic	Valve Type	Ball
Plating Type	Zinc with clear trivalent chromate	Product Type	Push to Connect
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	Steel	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Hex Size	0.79 inch	Coupling Half	Male Nipple
Tube Size (inch)	na	Connection Type	Male NPTF
Connection Thread Size (inch)	1/4 - 18
