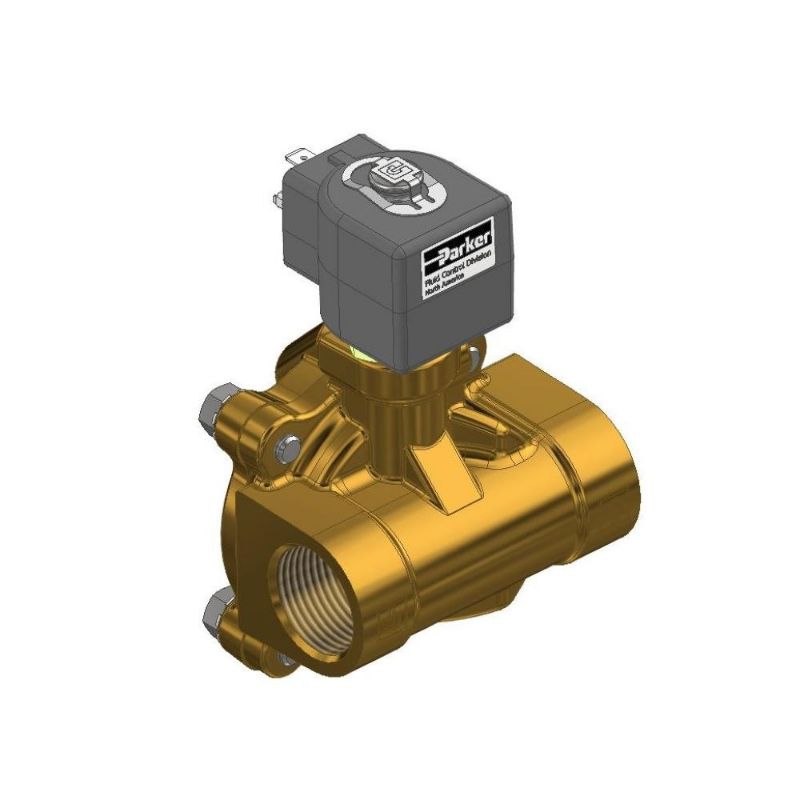

Parker 20F24C2172A3FPH80 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20F24C2172A3FPH80

$501.02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1-1/4 inch
Division	Fluid Control Division	Input Voltage	24.0 VDC
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Coil Type	DIN 43650A / ISO 4400
Actuation Type	Internally Piloted	Power Consumption	11.5 W
Maximum Fluid Temperature	150.0 °F	Minimum Pressure Differential	5.0 psi
Insulation Class	Class F	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Maximum Ambient Temperature	77.0 °F
Installation	IOM 7235	Specifications Met	UL, CSA Recognized General Purpose Valve
Maximum Pressure Differential	125.0 psi	Orifice Size	1-1/8 inch
Main Flow Coefficient	15.0 Cv	Preventive Maintenance Kit	20F24C2172A3FR
Port Type	NPT	Body Material	BRASS
Seal Material	NBR	Coil Type	DIN 43650A / ISO 4400
Media	General Purpose	Function	Normally Closed
Input Voltage	24.0	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	11.5
Valve Configuration	2 Way	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	150.0	Maximum Ambient Temperature	77.0
Minimum Pressure Differential	5.0	Installation	IOM 7235
Specifications Met	CE - Low Voltage, EMC	Maximum Pressure Differential	125.0
Port Size	1-1/4	Orifice Size	1-1/8
Main Flow Coefficient	15.0	Preventive Maintenance Kit	20F24C2172A3FR
