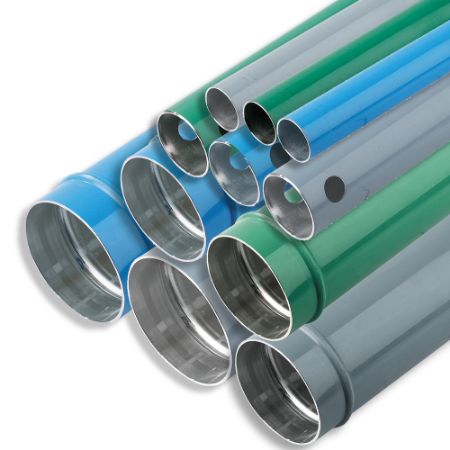

Transair® Aluminum Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair’s modular aluminum pipe delivers superior performance for compressed air, vacuum, and inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe overtime. All Transair aluminum pipes leave the factory with a QUALICOAT certified coating for protection against environmental effects. Transair will not add additional contaminates into a compressed air system. The quality of air leaving the compressor room will remain unchanged in a Transair system.
With Transair, there is no need to paint the piping to indicate the media being conveyed. Transair comes in 3 standard colors: Blue for compressed air, Gray for vacuum, and Green for industrial/inert gases. For additional colors, please contact Transair customer service.
A Transair system can integrate into existing copper and steel compressed air systems without compromising performance, making it ideal for system upgrades or expansions. The lightweight materials, quick connection technology and minimal required tooling allow a Transair system to be installed 4x faster than traditional methods. All Transair components are 100% recyclable, reusable, and silicone free. Parker warranties all Transair parts for 10 years against manufacturing defects.
Markets:
• Automotive Assembly
• Food &Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Optimum flow rate
• 100% Recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (16bar) when the system is operated between -4 to +115 F (-20 to +46.1 C)
• 6" to 8": 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
Read More...With Transair, there is no need to paint the piping to indicate the media being conveyed. Transair comes in 3 standard colors: Blue for compressed air, Gray for vacuum, and Green for industrial/inert gases. For additional colors, please contact Transair customer service.
A Transair system can integrate into existing copper and steel compressed air systems without compromising performance, making it ideal for system upgrades or expansions. The lightweight materials, quick connection technology and minimal required tooling allow a Transair system to be installed 4x faster than traditional methods. All Transair components are 100% recyclable, reusable, and silicone free. Parker warranties all Transair parts for 10 years against manufacturing defects.
Markets:
• Automotive Assembly
• Food &Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Optimum flow rate
• 100% Recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (16bar) when the system is operated between -4 to +115 F (-20 to +46.1 C)
• 6" to 8": 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
| Action | Part No. | Availability | Partner Available | Price | UOM | Shape | Division | Brand | Division | Technology | Application | Product Type | Quantity per Box | Size | Color | Length | Weight | Industry | Assembly Time | Body Material | Configuration | For Fluid Type | Outside Diameter | Connection 1 Type | Specifications Met | Vacuum Pressure Rating | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Color | Length (m) | Length (ft) | Pipe O.D. (mm) | Pipe O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1012A17 04 00 | Quote Required | 43 In Stock | $37.77/each | EA | Straight | Fluid System Connectors Division | Parker | Fluid System Connectors Division | Pneumatics | Compressed Air | Rigid Aluminum Pipe | 10 | 16.5 mm | Blue | 3 m | 0,639 kg | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 16.5 mm | Pipe | EN 755.2 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -4 °F | Blue | 3 | 9 | 16.5 | 1/2 | |
| 1012A25 04 00 | Quote Required | 103 In Stock | $49.30/each | EA | Straight | Low Pressure Connectors Europe Division | Transair | Fluid System Connectors Division | Fluid & Gas Handling | Compressed Air | Rigid Aluminum Pipe | 6 | 25 mm | Blue | 3 m | 2,120 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 1 inch | Pipe | ISO 8573 (Air Quality) | 0.03 inch-Hg | 232 psi | 185 °F | -20 °C | Blue | 3 | 9 | 25 | 1 | |
| 1012A40 04 00 | Quote Required | 39 In Stock | $77.77/each | EA | Straight | Low Pressure Connectors Europe Division | Parker | Fluid System Connectors Division | Pneumatics | Vacuum | Rigid Aluminum Pipe | 6 | 1-1/2 inch | Blue | 3 m | 3,110 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Air | 40 mm | Pipe | EN 573.3 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -20 °C | Blue | 3 | 9 | 40 | 1-1/2 | |
| 1013A50 04 | Quote Required | 1 Limited Stock | $59.13/each | EA | Straight | Fluid System Connectors Division | Parker | Fluid System Connectors Division | Pneumatics | Inert Gases | Rigid Aluminum Pipe | n/a | 50 mm | Blue | 10 ft | 2,177 kg | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 50 mm | Pipe | QUALICOAT | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | -4 °F | Blue | 3 | 10 | 50.8 | 2 | |
| 1014A17 04 | Quote Required | 241 In Stock | $56.87/each | EA | Straight | Fluid System Connectors Division | Parker | Fluid System Connectors Division | Pneumatics | Vacuum | Rigid Aluminum Pipe | 10 | 16.5 mm | Blue | 15 ft | 2,110 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 16.5 mm | Pipe | EN 755.2 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | -4 °F | Blue | 4,5 | 15 | 16.5 | 1/2 | |
| 1016A25 02 00 | Quote Required | 76 In Stock | $114.67/each | EA | Straight | Low Pressure Connectors Europe Division | Parker | Fluid System Connectors Division | Pneumatics | Compressed Air | Rigid Aluminum Pipe | 6 | 1 inch | Green | 20 ft | 1,923 kg | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 25 mm | Pipe | ISO 9001 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | -20 °C | Green | 6 | 20 | 25 | 1 | |
| 1016A25 04 00 | Quote Required | 1232 In Stock | $114.67/each | EA | Straight | Low Pressure Connectors Europe Division | Parker | Fluid System Connectors Division | Fluid & Gas Handling | Vacuum | Rigid Aluminum Pipe | 6 | 1 inch | Blue | 6 m | 1,923 kg | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Air | 25 mm | Pipe | EN 755.2 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -20 °C | Blue | 6 | 20 | 25 | 1 | |
| 1016A25 06 00 | Quote Required | 85 In Stock | $114.67/each | EA | Straight | Fluid System Connectors Division | Transair | Fluid System Connectors Division | Pneumatics | Vacuum | Rigid Aluminum Pipe | 6 | 25 mm | Gray | 6 m | 4,240 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 25 mm | Pipe | TUV | 0.03 inch-Hg | 232 psi | 85 °C | -4 °F | Gray | 6 | 20 | 25 | 1 | |
| 1016A40 04 00 | Quote Required | 1094 In Stock | $162.11/each | EA | Straight | Fluid System Connectors Division | Parker | Fluid System Connectors Division | Fluid & Gas Handling | Compressed Air | Rigid Aluminum Pipe | 6 | 40 mm | Blue | 20 ft | 6,220 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 40 mm | Pipe | CE 2014/68/EU | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -4 °F | Blue | 6 | 20 | 40 | 1-1/2 | |
| 1016A40 06 00 | Quote Required | 5 In Stock | $162.11/each | EA | Straight | Fluid System Connectors Division | Parker | Fluid System Connectors Division | Fluid & Gas Handling | Inert Gases | Rigid Aluminum Pipe | 6 | 1-1/2 inch | Gray | 6 m | 2,821 kg | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Air | 1-1/2 inch | Pipe | CE 2014/68/EU | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -4 °F | Gray | 6 | 20 | 40 | 1-1/2 | |
| 1016A50 04 | Quote Required | 1117 In Stock | $184.69/each | EA | Straight | Low Pressure Connectors Europe Division | Transair | Fluid System Connectors Division | Fluid & Gas Handling | Inert Gases | Rigid Aluminum Pipe | 4 | 2 inch | Blue | 6 m | 9,676 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 50 mm | Pipe | ISO 9001 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -4 °F | Blue | 6 | 20 | 50.8 | 2 | |
| 1016A63 04 | Quote Required | 203 In Stock | $243.15/each | EA | Straight | Low Pressure Connectors Europe Division | Parker | Fluid System Connectors Division | Fluid & Gas Handling | Compressed Air | Rigid Aluminum Pipe | 4 | 63 mm | Blue | 6 m | 13,840 lb | General Industrial | 0.05 Hours | Treated Aluminum | Pipe to Pipe | Air | 63 mm | Pipe | ISO 8573 (Air Quality) | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | -4 °F | Blue | 6 | 20 | 63 | 2-1/2 | |
| TA16 L1 04 | Quote Required | 55 In Stock | $310.60/each | EA | Straight | Low Pressure Connectors Europe Division | Transair | Fluid System Connectors Division | Pneumatics | Industrial Gas | Rigid Aluminum Pipe | 1 | 3 inch | Blue | 6 m | 16,980 lb | General Industrial | 0.15 Hours | Treated Aluminum | Pipe to Pipe | Air | 3 inch | Pipe | EN 755.8 | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 85 °C | -4 °F | Blue | 6 | 20 | 76.3 | 3 | |
| TA16 L1 06 | Quote Required | $326.12/each | EA | Straight | Fluid System Connectors Division | Parker | Fluid System Connectors Division | Fluid & Gas Handling | Vacuum | Rigid Aluminum Pipe | 1 | 76.3 mm | Gray | 20 ft | 16,980 lb | General Industrial | 0.15 Hours | Treated Aluminum | Pipe to Pipe | Industrial Gas | 76 mm | Pipe | EN 755.2 | 0.03 inch-Hg | 232 psi | 85 °C | -20 °C | Gray | 6 | 20 | 76.3 | 3 | ||
| TA16 L3 04 | Quote Required | 109 In Stock | $456.14/each | EA | Straight | Low Pressure Connectors Europe Division | Transair | Fluid System Connectors Division | Pneumatics | Vacuum | Rigid Aluminum Pipe | 1 | 101.8 mm | Blue | 20 ft | 25,690 lb | General Industrial | 0.15 Hours | Treated Aluminum | Pipe to Pipe | Air | 4 inch | Pipe | ISO 8573 (Air Quality) | 0.03 inch-Hg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | 185 °F | -4 °F | Blue | 6 | 20 | 101.8 | 4 |
