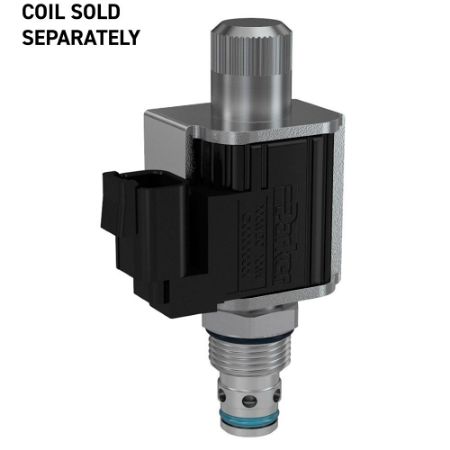

Proportional Poppet Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s selection of 2-way proportional poppet valves provide precise and dependable controls for applications that require a proportional flow control with an extremely low leakage rate. These valves are capable of handling flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi). These valves inspire confidence because of the high level of repeatable and accurate operation throughout the full control range of the valve. Parker’s 2-way proportional poppet valves are available in normally-open or normally-closed configurations and will pair with any Current Controlled Pulse Width Modulation (PWM) valve driver. These valves have uses on a variety of machinery within the agriculture, aerial, material handling, or construction markets.
Markets:
• Agriculture
• Aerial
• Construction
• Material Handling
• Miscellaneous Mobile
Features/Benefits:
• Excellent metering capability and control throughout the full flow range
• Reduced drift
• Low leak control (less than 5 dpm)
• Modular solution to applied problem
• Improved control throughout the control range
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Agriculture
• Aerial
• Construction
• Material Handling
• Miscellaneous Mobile
Features/Benefits:
• Excellent metering capability and control throughout the full flow range
• Reduced drift
• Low leak control (less than 5 dpm)
• Modular solution to applied problem
• Improved control throughout the control range
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | UOM | Actuation Type | Body Material | Division | Division | Maximum Kinematic Viscosity | Minimum Operating Temperature | Maximum Operating Temperature | Maximum Operating Pressure | Weight | Override Functionality | Cavity Size | Maximum Inlet Pressure Rating | Seal Material | Installation Torque | Function | Frequency | Configuration | Flow Direction | For Fluid Type | Valve Material | Filter Efficiency Rating | Variation of Closing Point | Hysteresis | Leak Rate | Operating Temperature | Flow Rate | Maximum Flow Rate | Coil Type | Power Consumption | Coil Nut Tightening Torque | Variation of Opening Point | Minimum Pressure Differential | Configuration | Seal Material | Maximum Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FAP081C | Quote Required | $334.25 | EA | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | +200 °F | 210 bar | 0.17 kg | n/a | C08-2 | 3000 psi | D-Ring (Standard) | 30 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -37 to +93 °C | 7 Gal/min | 7 Gal/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | 20-25% of Input Signal | 21 bar | Normally Closed | D-Ring (Standard) | 7 GAL/MIN, 27 L/MIN | ||
| FAP081CN | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 °F | +250 °F | 3000 psi | 0.17 kg | n/a | C08-2 | 210 bar | Nitrile | 30 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -30 to +250 °F | 7 Gal/min | 27 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | 20-25% of Input Signal | 300 psi | Normally Closed | Nitrile | 7 GAL/MIN, 27 L/MIN | |||
| FAP081CV | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -15 °F | +204 °C | 3000 psi | 0.17 kg | n/a | C08-2 | 3000 psi | Fluorocarbon | 30 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -26 to +204 °C | 27 L/min | 7 Gal/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | 20-25% of Input Signal | 300 psi | Normally Closed | Fluorocarbon | 7 GAL/MIN, 27 L/MIN | |||
| FAP081N | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -37 °C | +200 °F | 210 bar | 0.48 lb | n/a | C08-2 | 210 bar | D-Ring (Standard) | 30 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Open | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 60-65% of Input Signal | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -37 to +93 °C | 40 L/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | N/A | 300 psi | Normally Open | D-Ring (Standard) | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP081NN | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -34 °C | +121 °C | 210 bar | 0.22 kg | n/a | C08-2 | 3000 psi | Nitrile | 20 lb-ft | Proportional Flow Control/Regulator | 100-400 Hz | Normally Open | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 60-65% of Input Signal | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -30 to +250 °F | 10.5 Gal/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | N/A | 300 psi | Normally Open | Nitrile | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP081NV | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -15 °F | +400 °F | 210 bar | 0.22 kg | n/a | C08-2 | 3000 psi | Fluorocarbon | 30 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Open | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 60-65% of Input Signal | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -15 to +400 °F | 10.5 Gal/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | N/A | 21 bar | Normally Open | Fluorocarbon | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP101C | Quote Required | $357.00 | EA | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -37 °C | +93 °C | 3000 psi | 0.19 kg | n/a | C10-2 | 3000 psi | D-Ring (Standard) | 34 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -37 to +93 °C | 10.5 Gal/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | 20-25% of Input Signal | 21 bar | Normally Closed | D-Ring (Standard) | 10.5 GAL/MIN, 40 L/MIN | ||
| FAP101CH | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -37 °C | +200 °F | 210 bar | 0.42 lb | n/a | C10-2 | 3000 psi | D-Ring (Standard) | 34 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed, High Flow | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -35 to +200 °F | 13 Gal/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | 20-25% of Input Signal | 300 psi | Normally Closed | D-Ring (Standard) | 13 GAL/MIN, 45 L/MIN | |||
| FAP101CHM | Quote Required | TBD | Electrical, Manual | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | +93 °C | 210 bar | 0.42 lb | Screw Type | C10-2 | 3000 psi | D-Ring (Standard) | 25 lb-ft | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed, High Flow | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -35 to +200 °F | 45 L/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | 20-25% of Input Signal | 300 psi | Normally Closed | D-Ring (Standard) | 13 GAL/MIN, 45 L/MIN | |||
| FAP101CHMN | Quote Required | TBD | Electrical | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 | +250 | 3000 | 0.42 | n/a | C10-2 | 3000 | Nitrile | 25 | Proportional Flow Control/Regulator | 100-400 | Normally Closed, High Flow | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) | -30 to +250 | 13 | 10.5 | 5/8" Super Coil Low Watt (CAS) | 18 | 1 | 20-25% of Input Signal | 300 | Normally Closed | Nitrile | 13 GAL/MIN, 45 L/MIN | |||
| FAP101CHMV | Quote Required | TBD | Electrical, Manual | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -15 | +400 | 3000 | 0.42 | Screw Type | C10-2 | 3000 | Fluorocarbon | 25 | Proportional Flow Control/Regulator | 100-400 | Normally Closed, High Flow | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) | -15 to +400 | 13 | 10.5 | 5/8" Super Coil Low Watt (CAS) | 18 | 1 | 20-25% of Input Signal | 300 | Normally Closed | Fluorocarbon | 13 GAL/MIN, 45 L/MIN | |||
| FAP101CHV | Quote Required | TBD | Electrical, Manual | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 | +250 | 3000 | 0.42 | Screw Type | C10-2 | 3000 | Nitrile | 25 | Proportional Flow Control/Regulator | 100-400 | Normally Closed, High Flow | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) | -30 to +250 | 13 | 10.5 | 5/8" Super Coil Low Watt (CAS) | 18 | 1 | 20-25% of Input Signal | 300 | Normally Closed | Nitrile | 13 GAL/MIN, 45 L/MIN | |||
| FAP101CM | Quote Required | TBD | Electrical, Manual | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -35 °F | +200 °F | 3000 psi | 0.42 lb | Screw Type | C10-2 | 210 bar | D-Ring (Standard) | 25 lb-ft | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -35 to +200 °F | 40 L/min | 10.5 Gal/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | 20-25% of Input Signal | 300 psi | Normally Closed | D-Ring (Standard) | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP101CMN | Quote Required | TBD | Electrical, Manual | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -30 | +250 | 3000 | 0.42 | Screw Type | C10-2 | 3000 | Nitrile | 25 | Proportional Flow Control/Regulator | 100-400 | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) | -30 to +250 | 10.5 | 10.5 | 5/8" Super Coil Low Watt (CAS) | 18 | 1 | 20-25% of Input Signal | 300 | Normally Closed | Nitrile | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP101CMV | Quote Required | TBD | Electrical, Manual | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -15 | +400 | 3000 | 0.42 | Screw Type | C10-2 | 3000 | Fluorocarbon | 25 | Proportional Flow Control/Regulator | 100-400 | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) | -15 to +400 | 10.5 | 10.5 | 5/8" Super Coil Low Watt (CAS) | 18 | 1 | 20-25% of Input Signal | 300 | Normally Closed | Fluorocarbon | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP101CN | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -34 °C | +121 °C | 3000 psi | 0.42 lb | n/a | C10-2 | 210 bar | Nitrile | 25 lb-ft | Proportional Flow Control/Regulator | 100-400 Hz | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -30 to +250 °F | 10.5 Gal/min | 40 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | 20-25% of Input Signal | 21 bar | Normally Closed | Nitrile | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP101CV | Quote Required | TBD | Electrical | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -15 | +400 | 3000 | 0.42 | n/a | C10-2 | 3000 | Fluorocarbon | 25 | Proportional Flow Control/Regulator | 100-400 | Normally Closed | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | N/A | < 15% | 5 @ 3000 PSI (210 BAR) | -15 to +400 | 10.5 | 10.5 | 5/8" Super Coil Low Watt (CAS) | 18 | 1 | 20-25% of Input Signal | 300 | Normally Closed | Fluorocarbon | 10.5 GAL/MIN, 40 L/MIN | |||
| FAP101N | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -37 °C | +93 °C | 210 bar | 0.23 kg | n/a | C10-2 | 3000 psi | D-Ring (Standard) | 34 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Open | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 60-65% of Input Signal | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -35 to +200 °F | 55 L/min | 55 L/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1 lb-ft | N/A | 300 psi | Normally Open | D-Ring (Standard) | 14.5 GAL/MIN, 55 L/MIN | |||
| FAP101NN | Quote Required | TBD | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -34 °C | +121 °C | 3000 psi | 0.23 kg | n/a | C10-2 | 210 bar | Nitrile | 34 Nm | Proportional Flow Control/Regulator | 100-400 Hz | Normally Open | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 60-65% of Input Signal | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -30 to +250 °F | 55 L/min | 14.5 Gal/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | N/A | 300 psi | Normally Open | Nitrile | 14.5 GAL/MIN, 55 L/MIN | |||
| FAP101NV | Quote Required | $498.25 | EA | Electrical | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | 45-2000 SSU (6 to 420 cSt) | -15 °F | +400 °F | 210 bar | 0.23 kg | n/a | C10-2 | 3000 psi | Fluorocarbon | 25 lb-ft | Proportional Flow Control/Regulator | 100-400 Hz | Normally Open | Side to Nose (2 - 1) | Mineral-based or synthetic hydraulic fluids | All parts steel. All operating parts hardened steel | ISO 4406 18/16/13, SAE Class 4 | 60-65% of Input Signal | < 15% | 5 @ 3000 PSI (210 BAR) drops/min | -26 to +204 °C | 14.5 Gal/min | 14.5 Gal/min | 5/8" Super Coil Low Watt (CAS) | 18 W | 1.4 Nm | N/A | 300 psi | Normally Open | Fluorocarbon | 14.5 GAL/MIN, 55 L/MIN |
