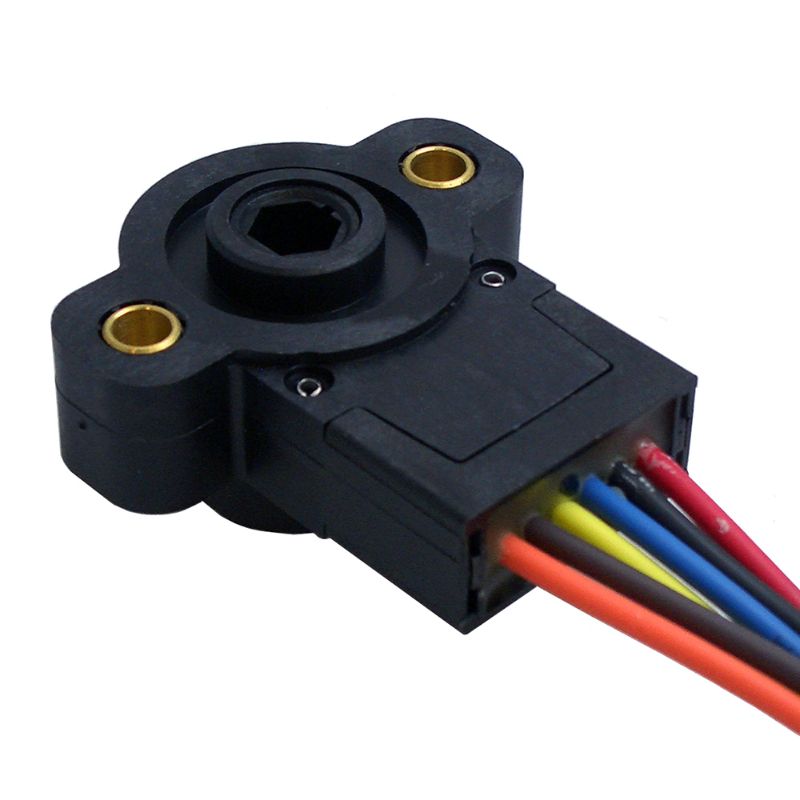

Parker 01707ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01707ECD

$158.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Option	Hole Spacing 38 mm
Signal Output	0.5 to 4.5 VDC	Return Type	Spring CCW
Maximum Travel Angle	180 °	Industry	Agriculture
Model Number	RS70	Drive Axis Type	Hex Driver
Minimum Operating Temperature	-40 °C	Electrical Connection	DTM04
Operating Current	24 mA max.	Sensor Type	Rotation
Mounting Hole Diameter	5.3 mm	Division	Electronic Motion and Controls Division
Maximum Output Error	3 %	Output Current Rating	1 mA
Hysteresis	1 %	Housing Material	Glass-filled Nylon
Maximum Operating Temperature	125 °C	Number of Outputs	2 redundant
Ingress Protection Rating	66	Power Supply Voltage	5 VDC Regulated
Electrical Output Range	170°
