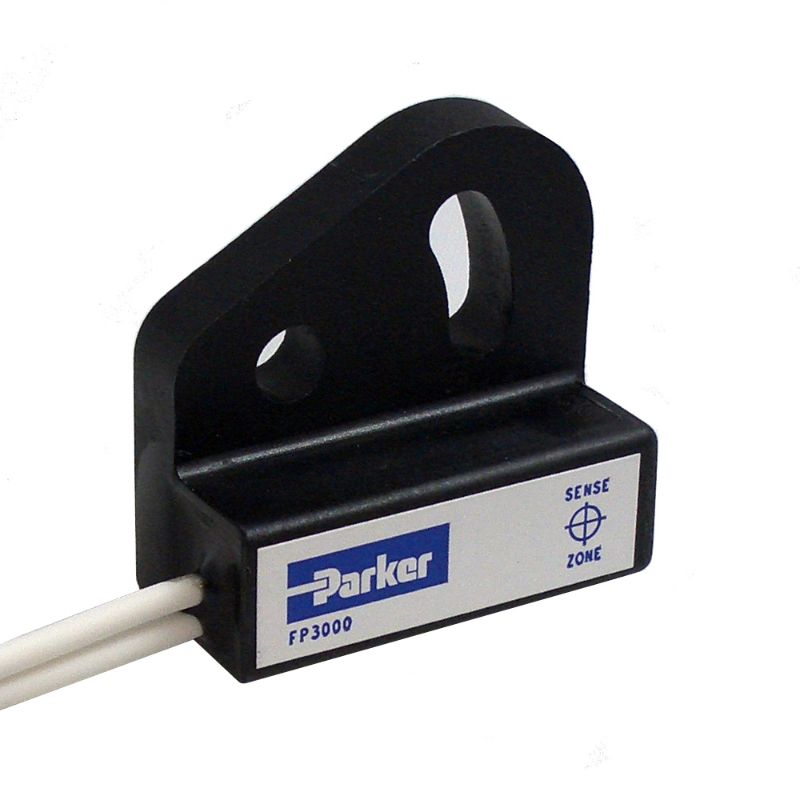

Parker 01778ECD - Ferrous Proximity Sensor - FP

Parker's Ferrous Proximity Sensors use back-biased reed switch technology non-contacting technology to detect the presence of ferrous targets. Because they are non-contacting with no moving external components they are well suited for many applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01778ECD

$72.75/each

Products specifications

Attribute name	Attribute value
Model Number	FP3000	Division	Electronic Motion and Controls Division
Contact Rating	10	Mounting Hole Diameter	7.0 mm (x1)
Maximum Switching Voltage	100	Ingress Protection Rating	67
Sensor Type	Proximity	Release Air Gap	17.8
Electrical Connection	DTM04-2P	Housing Material	Glass-filled Nylon
Sense Air Gap	11.9	Maximum Switching Current	0.5
Sense Air Gap Min (mm)	10.2	Sensing Surface	Site B
Switch Type	NO
