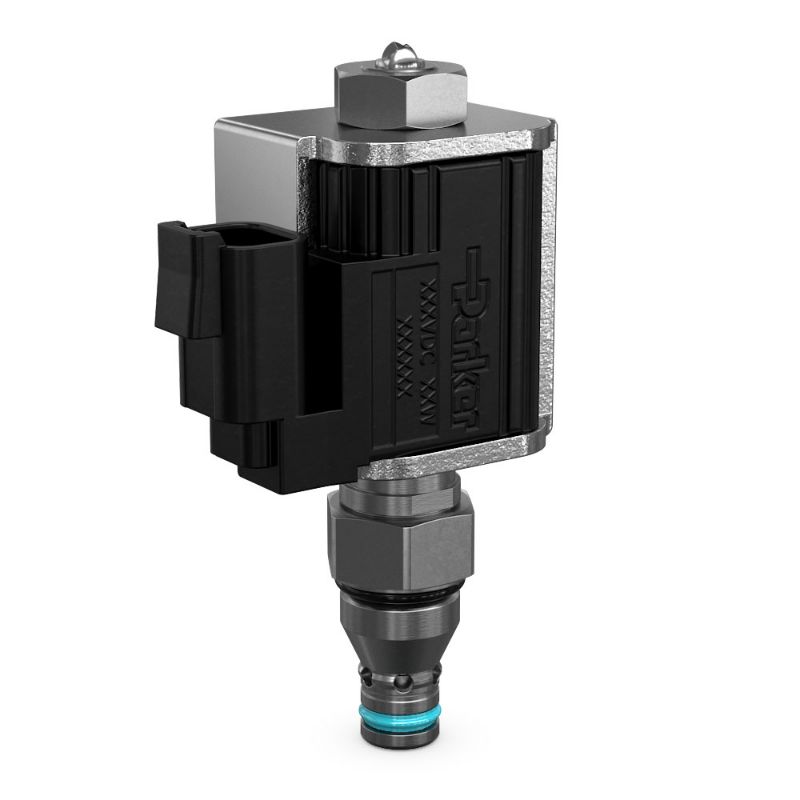

Parker FAP081C - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAP081C

$341.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Coil Nut Tightening Torque	1.4 Nm	Actuation Type	Electrical
Weight	0.17 kg	Power Consumption	18 W
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Pressure	210 bar	Flow Direction	Side to Nose (2 - 1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3000 psi
Frequency	100-400 Hz	Configuration	Normally Closed
Function	Proportional Flow Control/Regulator	Division	Hydraulic Cartridge Systems Division
Variation of Closing Point	N/A	Hysteresis	< 15%
Cavity Size	C08-2	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	N/A	Maximum Operating Temperature	+200 °F
Coil Type	5/8" Super Coil Low Watt (CAS)	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Body Material	N/A	Variation of Opening Point	20-25% of Input Signal
Minimum Pressure Differential	21 bar	Minimum Operating Temperature	-35 °F
Maximum Flow Rate	7 Gal/min	Division	Hydraulic Systems Division
Operating Temperature	-37 to +93 °C	Flow Rate	7 Gal/min
Installation Torque	30 Nm	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Maximum Flow Rate	7 GAL/MIN, 27 L/MIN
