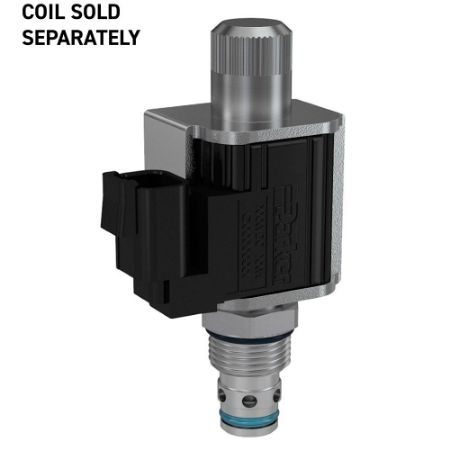

Proportional Poppet Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s selection of 2-way proportional poppet valves provide precise and dependable controls for applications that require a proportional flow control with an extremely low leakage rate. These valves are capable of handling flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi). These valves inspire confidence because of the high level of repeatable and accurate operation throughout the full control range of the valve. Parker’s 2-way proportional poppet valves are available in normally-open or normally-closed configurations and will pair with any Current Controlled Pulse Width Modulation (PWM) valve driver. These valves have uses on a variety of machinery within the agriculture, aerial, material handling, or construction markets.
Markets:
• Agriculture
• Aerial
• Construction
• Material Handling
• Miscellaneous Mobile
Features/Benefits:
• Excellent metering capability and control throughout the full flow range
• Reduced drift
• Low leak control (less than 5 dpm)
• Modular solution to applied problem
• Improved control throughout the control range
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Agriculture
• Aerial
• Construction
• Material Handling
• Miscellaneous Mobile
Features/Benefits:
• Excellent metering capability and control throughout the full flow range
• Reduced drift
• Low leak control (less than 5 dpm)
• Modular solution to applied problem
• Improved control throughout the control range
Applications:
• Applications requiring precise controls
• Variable flow applications
• Actuator control
• Motor speed control
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Coil Nut Tightening Torque | Actuation Type | Weight | Power Consumption | Filter Efficiency Rating | Valve Material | Maximum Operating Pressure | Flow Direction | Maximum Kinematic Viscosity | Maximum Inlet Pressure Rating | Frequency | Configuration | Function | Division | Variation of Closing Point | Hysteresis | Cavity Size | For Fluid Type | Override Functionality | Maximum Operating Temperature | Coil Type | Leak Rate | Body Material | Variation of Opening Point | Minimum Pressure Differential | Minimum Operating Temperature | Maximum Flow Rate | Division | Operating Temperature | Flow Rate | Installation Torque | Configuration | Seal Material | Maximum Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FAP081C | Quote Required | $341.00/each | EA | D-Ring (Standard) | 1.4 Nm | Electrical | 0.17 kg | 18 W | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 210 bar | Side to Nose (2 - 1) | 45-2000 SSU (6 to 420 cSt) | 3000 psi | 100-400 Hz | Normally Closed | Proportional Flow Control/Regulator | Hydraulic Cartridge Systems Division | N/A | < 15% | C08-2 | Mineral-based or synthetic hydraulic fluids | N/A | +200 °F | 5/8" Super Coil Low Watt (CAS) | 5 @ 3000 PSI (210 BAR) drops/min | N/A | 20-25% of Input Signal | 21 bar | -35 °F | 7 Gal/min | Hydraulic Systems Division | -37 to +93 °C | 7 Gal/min | 30 Nm | Normally Closed | D-Ring (Standard) | 7 GAL/MIN, 27 L/MIN | ||
| FAP101C | Quote Required | $364.25/each | EA | D-Ring (Standard) | 1 lb-ft | Electrical | 0.19 kg | 18 W | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 3000 psi | Side to Nose (2 - 1) | 45-2000 SSU (6 to 420 cSt) | 3000 psi | 100-400 Hz | Normally Closed | Proportional Flow Control/Regulator | Hydraulic Cartridge Systems Division | N/A | < 15% | C10-2 | Mineral-based or synthetic hydraulic fluids | N/A | +93 °C | 5/8" Super Coil Low Watt (CAS) | 5 @ 3000 PSI (210 BAR) drops/min | N/A | 20-25% of Input Signal | 21 bar | -37 °C | 40 L/min | Hydraulic Systems Division | -37 to +93 °C | 10.5 Gal/min | 34 Nm | Normally Closed | D-Ring (Standard) | 10.5 GAL/MIN, 40 L/MIN | ||
| FAP101NV | Quote Required | $508.25/each | EA | Fluorocarbon | 1.4 Nm | Electrical | 0.23 kg | 18 W | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 210 bar | Side to Nose (2 - 1) | 45-2000 SSU (6 to 420 cSt) | 3000 psi | 100-400 Hz | Normally Open | Proportional Flow Control/Regulator | Hydraulic Cartridge Systems Division | 60-65% of Input Signal | < 15% | C10-2 | Mineral-based or synthetic hydraulic fluids | N/A | +400 °F | 5/8" Super Coil Low Watt (CAS) | 5 @ 3000 PSI (210 BAR) drops/min | N/A | N/A | 300 psi | -15 °F | 14.5 Gal/min | Hydraulic Systems Division | -26 to +204 °C | 14.5 Gal/min | 25 lb-ft | Normally Open | Fluorocarbon | 14.5 GAL/MIN, 55 L/MIN | ||
| FAP121CN | Quote Required | 1 Limited Stock | $441.80/each | EA | Nitrile | 1.4 Nm | Electrical | 0.65 lb | 18 W | ISO 4406 18/16/13, SAE Class 4 | All parts steel. All operating parts hardened steel | 3000 psi | Side to Nose (2 - 1) | 45-2000 SSU (6 to 420 cSt) | 3000 psi | 100-400 Hz | Normally Closed | Proportional Flow Control/Regulator | Hydraulic Cartridge Systems Division | N/A | < 15% | C12-2F | Mineral-based or synthetic hydraulic fluids | N/A | +121 °C | 5/8" Super Coil Low Watt (CAS) | 5 @ 3000 PSI (210 BAR) drops/min | N/A | 20-25% of Input Signal | 21 bar | -34 °C | 21.5 Gal/min | Hydraulic Systems Division | -30 to +250 °F | 21.5 Gal/min | 55 lb-ft | Normally Closed | Nitrile | 21.5 GAL/MIN, 81.5 L/MIN |
