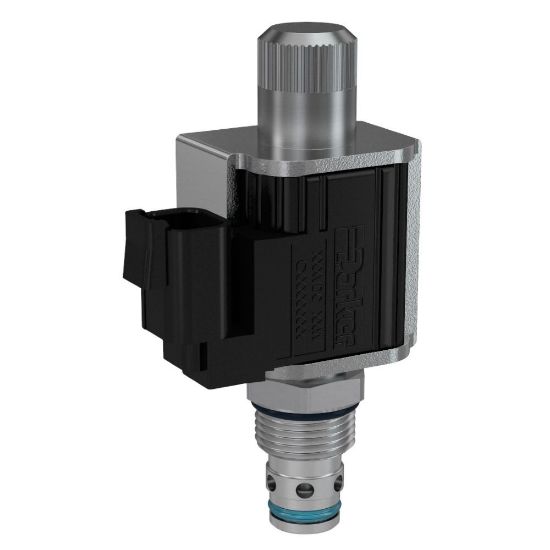

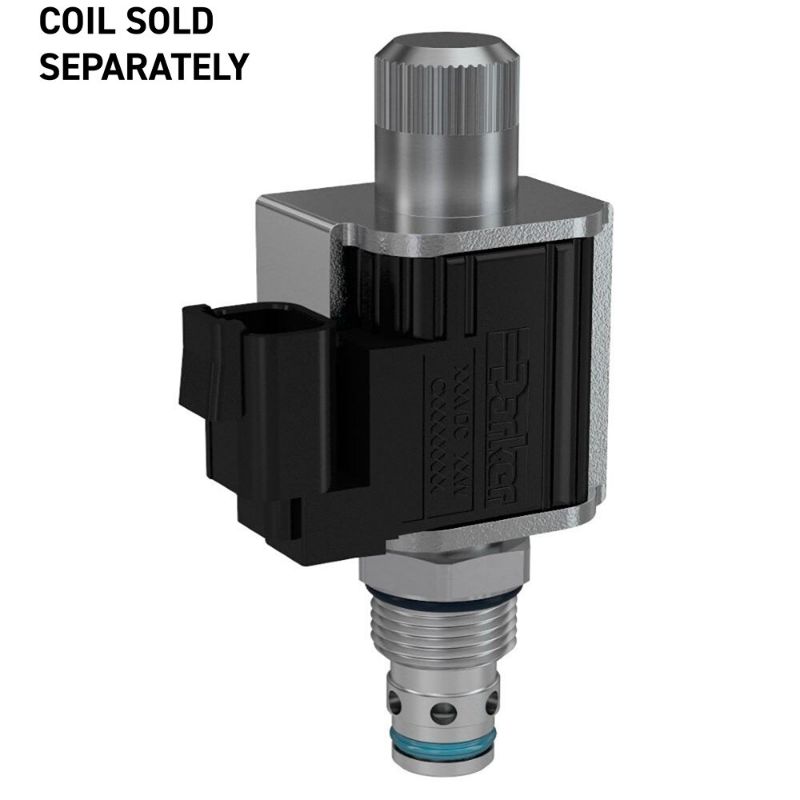

Parker FAP101NV - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAP101NV

$498.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Weight	0.23 kg	Maximum Operating Pressure	210 bar
Override Functionality	n/a	Cavity Size	C10-2
Maximum Inlet Pressure Rating	3000 psi	Installation Torque	25 lb-ft
Maximum Operating Temperature	+400 °F	Function	Proportional Flow Control/Regulator
Frequency	100-400 Hz	Configuration	Normally Open
Flow Direction	Side to Nose (2 - 1)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Variation of Opening Point	N/A
Hysteresis	< 15%	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Flow Rate	14.5 Gal/min	Maximum Flow Rate	14.5 Gal/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Power Consumption	18 W
Coil Nut Tightening Torque	1.4 Nm	Variation of Closing Point	60-65% of Input Signal
Minimum Pressure Differential	300 psi	Seal Material	Fluorocarbon
Configuration	Normally Open	Maximum Flow Rate	14.5 GAL/MIN, 55 L/MIN
