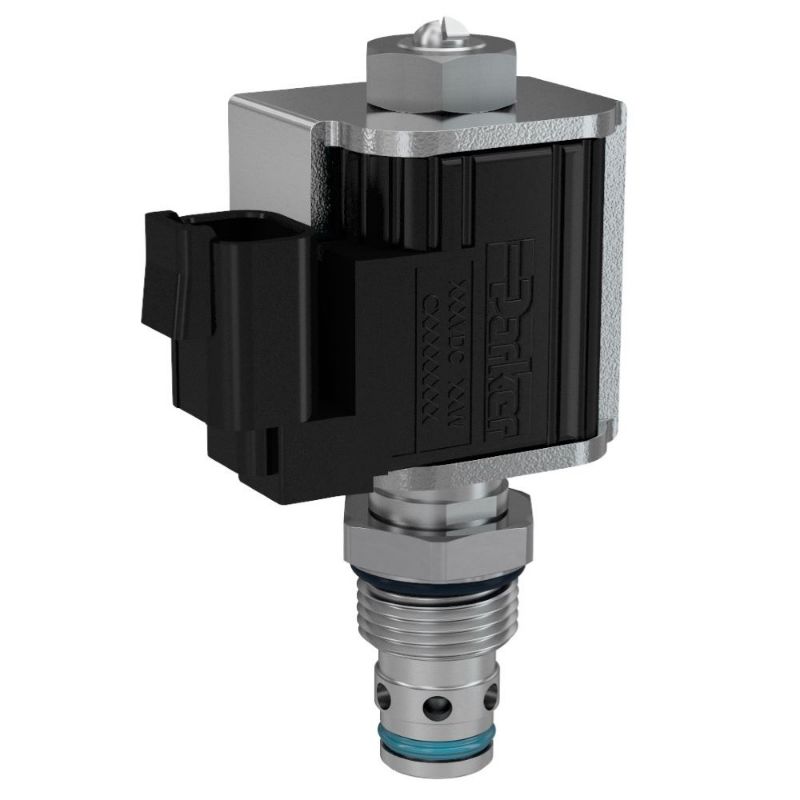

Parker FAP101C - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAP101C

$357.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Maximum Operating Pressure	3000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Override Functionality	n/a	Cavity Size	C10-2
Maximum Inlet Pressure Rating	3000 psi	Maximum Flow Rate	40 L/min
Seal Material	D-Ring (Standard)	Installation Torque	34 Nm
Function	Proportional Flow Control/Regulator	Frequency	100-400 Hz
Configuration	Normally Closed	Flow Direction	Side to Nose (2 - 1)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Variation of Closing Point	N/A
Hysteresis	< 15%	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Operating Temperature	-37 to +93 °C	Maximum Operating Temperature	+93 °C
Weight	0.19 kg	Flow Rate	10.5 Gal/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Power Consumption	18 W
Coil Nut Tightening Torque	1 lb-ft	Variation of Opening Point	20-25% of Input Signal
Minimum Pressure Differential	21 bar	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Maximum Flow Rate	10.5 GAL/MIN, 40 L/MIN
