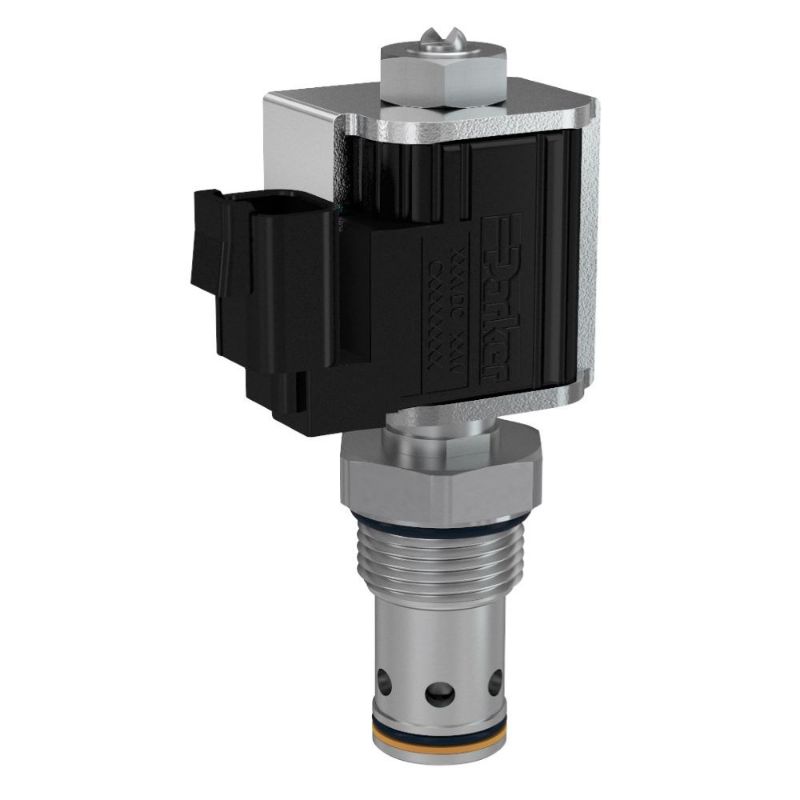

Parker FAP121CN - Proportional Poppet Valves

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAP121CN

$413.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	0.65 lb
Override Functionality	n/a	Maximum Inlet Pressure Rating	3000 psi
Cavity Size	C12-2F	Maximum Operating Temperature	+121 °C
Function	Proportional Flow Control/Regulator	Frequency	100-400 Hz
Configuration	Normally Closed	Flow Direction	Side to Nose (2 - 1)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Variation of Closing Point	N/A	Hysteresis	< 15%
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Installation Torque	55 lb-ft
Flow Rate	21.5 Gal/min	Maximum Flow Rate	21.5 Gal/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Power Consumption	18 W
Coil Nut Tightening Torque	1.4 Nm	Variation of Opening Point	20-25% of Input Signal
Minimum Pressure Differential	21 bar	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Flow Rate	21.5 GAL/MIN, 81.5 L/MIN
