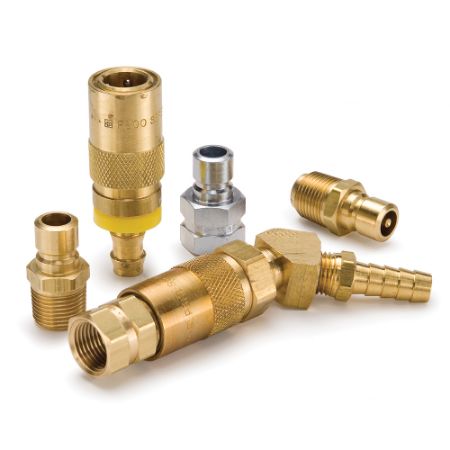

Injection Molding, Coolant Quick Couplings - Moldmate Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Moldmate Series Couplers (water, oil, coolant) up to 200 psi, connect with Moldmate Series Nipples.
Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
Read More...Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Hex Size | Dimensional Weight | Product Type | Application | Seal Material | Division | Plating Type | Minimum Operating Temperature | Maximum Operating Temperature | Connection Type | Body Material | Valve Style | Connection Thread Size (inch) | Flow Rate | Coupling Half | Connection Hose I.D. (inch) | Body Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPN251F | 7 In Stock | 143 In Stock | $6.26 | EA | 200 psi | 0.50 inch | 0.007997601918465227 lb | Manual Connect | Mold Coolant | na | Quick Coupling Division | na | -20 °F | 400 °F | Female NPTF | BRASS | Unvalved | 1/8 - 27 | 3 | Male Nipple | na | 1/4 | |
| BPN252F | Quote Required | 178 In Stock | $5.28 | EA | 200 psi | 0.63 inch | 0.007997601918465227 lb | Manual Connect | Mold Coolant | na | Quick Coupling Division | na | -20 °F | 400 °F | Female NPTF | BRASS | Unvalved | 1/4 - 18 | 3 | Male Nipple | na | 1/4 | |
| BPN253F | Quote Required | TBD | 200 psi | 0.75 inch | 0.01335431654676259 lb | Manual Connect | Hydraulics | na | Quick Coupling Division | na | -20 °F | 400 °F | Female NPTF | BRASS | Unvalved | 3/8 - 18 | 3 | Male Nipple | na | 1/4 | |||
| BPN352F | Quote Required | 554 In Stock | $5.02 | EA | 200 psi | 0.63 inch | 0.007997601918465227 lb | Manual Connect | Hydraulics | na | Quick Coupling Division | na | -20 °F | 400 °F | Female NPTF | BRASS | Unvalved | 1/4 - 18 | 6 | Male Nipple | na | 3/8 | |
| BPN353F | 8 In Stock | 669 In Stock | $11.67 | EA | 200 psi | 0.75 inch | 0.007997601918465227 lb | Manual Connect | Hydraulics | na | Quick Coupling Division | na | -20 °F | 400 °F | Female NPTF | BRASS | Unvalved | 3/8 - 18 | 6 | Male Nipple | na | 3/8 | |
| BPV252 | Quote Required | 12 In Stock | $16.73 | EA | 200 psi | 0.56 inch | 0.006677158273381295 lb | Manual Connect | Mold Coolant | Fluorocarbon | Quick Coupling Division | na | -15 °F | 400 °F | Male NPTF | BRASS | Poppet | 1/4 - 18 | 3 | Male Nipple | na | 1/4 | |
| BPV353 | Quote Required | 32 In Stock | $20.80 | EA | 200 psi | 0.69 inch | 0.01335431654676259 lb | Manual Connect | Hydraulics | Fluorocarbon | Quick Coupling Division | na | -15 °F | 400 °F | Male NPTF | BRASS | Poppet | 3/8 - 18 | 6 | Male Nipple | na | 3/8 | |
| PC204 | Quote Required | 92 In Stock | $20.00 | EA | 200 psi | 0.63 inch | 0.013329336530775381 lb | Manual Connect | Hydraulics | Silicone | Quick Coupling Division | na | -20 °F | 400 °F | Hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 1/4 | 1/4 | |
| PC204AV | Quote Required | 68 In Stock | $27.60 | EA | 200 psi | 0.63 inch | 0.01335431654676259 lb | Manual Connect | Mold Coolant | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 °F | 400 °F | Hose barb | BRASS | Poppet | na | 3 | Female Coupler | 1/4 | 1/4 | |
| PC204AV-BP | Quote Required | TBD | 200 psi | 0.63 inch | 0.01335431654676259 lb | Manual Connect | Mold Coolant | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 °F | 400 °F | Push-Lok hose barb | BRASS | Poppet | na | 3 | Female Coupler | 1/4 | 1/4 | |||
| PC204-BP | Quote Required | 195 In Stock | $27.99 | EA | 200 psi | 0.63 inch | 0.01335431654676259 lb | Manual Connect | Hydraulics | Silicone | Quick Coupling Division | na | -20 °F | 400 °F | Push-Lok hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 1/4 | 1/4 | |
| PC205 | Quote Required | TBD | 200 psi | 0.63 inch | 0.012606115107913667 lb | Manual Connect | Mold Coolant | Silicone | Quick Coupling Division | na | -20 °F | 400 °F | Hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 5/16 | 1/4 | |||
| PC205AV | Quote Required | TBD | 200 | 0.63 | Manual Connect | Hydraulic, mold coolant | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 | 400 | Hose barb | BRASS | Poppet | na | 3 | Female Coupler | 5/16 | 1/4 | ||||
| PC206 | Quote Required | TBD | 200 psi | 0.63 inch | 0.013329336530775381 lb | Manual Connect | Hydraulics | Silicone | Quick Coupling Division | na | -20 °F | 400 °F | Hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 3/8 | 1/4 | |||
| PC206AV | Quote Required | 11 In Stock | $28.08 | EA | 200 psi | 0.63 inch | 0.013329336530775381 lb | Manual Connect | Hydraulics | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 °F | 400 °F | Hose barb | BRASS | Poppet | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC206AV-BP | 1 Limited Stock | 10 In Stock | $26.35 | EA | 200 psi | 0.63 inch | 0.02670863309352518 lb | Manual Connect | Hydraulics | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 °F | 400 °F | Push-Lok hose barb | BRASS | Poppet | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC206-BP | Quote Required | 157 In Stock | $19.76 | EA | 200 psi | 0.63 inch | 0.013329336530775381 lb | Manual Connect | Mold Coolant | Silicone | Quick Coupling Division | na | -20 °F | 400 °F | Push-Lok hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC214 | Quote Required | TBD | 200 psi | 0.63 inch | 0.02670863309352518 lb | Manual Connect | Mold Coolant | Silicone | Quick Coupling Division | na | -20 °F | 400 °F | Hose barb, 90 degree | BRASS | Unvalved | na | 3 | Female Coupler | 1/4 | 1/4 | |||
| PC214AV | Quote Required | TBD | 200 psi | 0.63 inch | 0.02670863309352518 lb | Manual Connect | Hydraulics | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 °F | 400 °F | Hose barb, 90 degree | BRASS | Poppet | na | 3 | Female Coupler | 1/4 | 1/4 | |||
| PC214AV-BP | Quote Required | TBD | 200 psi | 0.63 inch | 0.02670863309352518 lb | Manual Connect | Hydraulics | Silicone - Fluorocarbon | Quick Coupling Division | Zinc with clear trivalent chromate on sleeve | -15 °F | 400 °F | Push-Lok hose barb, 90 degree | BRASS | Poppet | na | 3 | Female Coupler | 1/4 | 1/4 |
