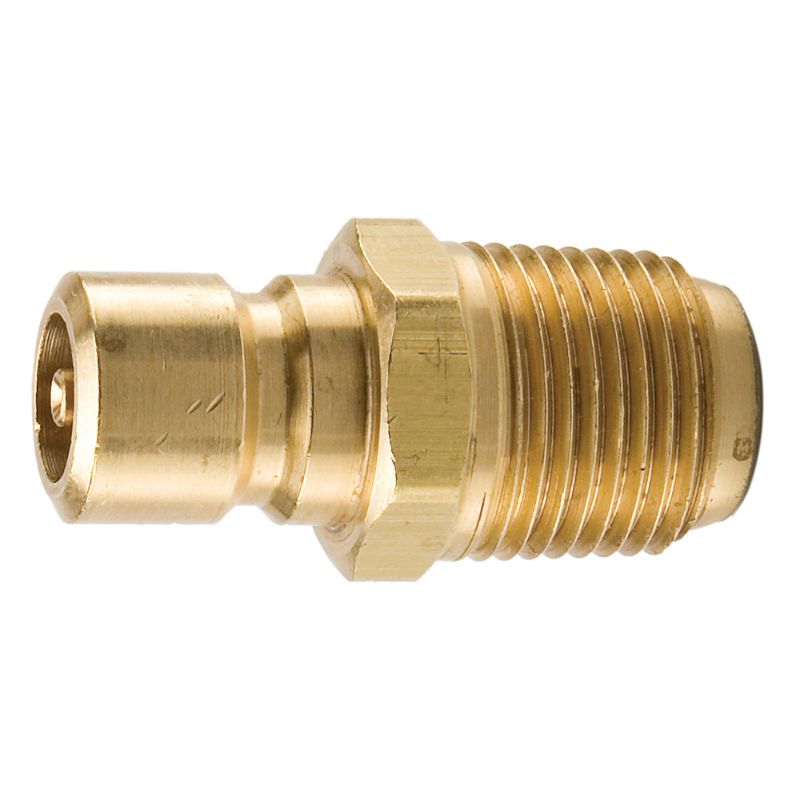

Parker BPV252 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. BPV252

$17.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Dimensional Weight	0.006677158273381295 lb	Maximum Operating Temperature	400 °F
Hex Size	0.56 inch	Minimum Operating Temperature	-15 °F
Application	Mold Coolant	Plating Type	na
Product Type	Manual Connect	Seal Material	Fluorocarbon
Maximum Operating Pressure	200 psi	Flow Rate	3
Connection Type	Male NPTF	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/4 - 18	Valve Style	Poppet
Body Size (inch)	1/4	Connection Hose I.D. (inch)	na
Body Material	BRASS
