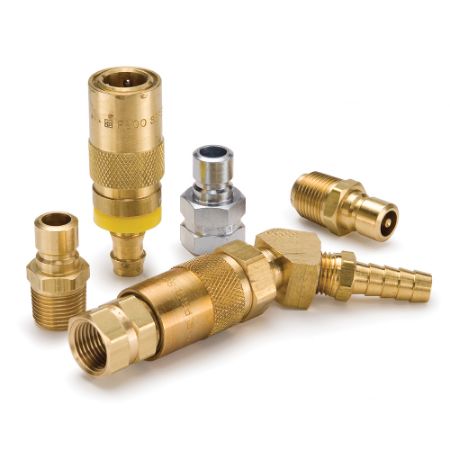

Injection Molding, Coolant Quick Couplings - Moldmate Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Moldmate Series Couplers (water, oil, coolant) up to 200 psi, connect with Moldmate Series Nipples.
Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
Read More...Parker's Moldmate Series, in valved and unvalved styles, are specifically designed for connecting low pressure coolant lines to molds and dies on injection molding machinery and die casting equipment. Valved couplers have fluorocarbon poppet seals and can be used with either valved or unvalved nipples. Couplers and nipples are available in sizes, materials, and configurations to be compatible with molding systems.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2”
• Material: Brass
• Port Ends: Push-Lok Hose Barb, Standard Hose Barb
• Interface Seal Options: Silicone, Fluorocarbon
• Other Coupler options include: Straight, 45 degree, 90 degree hose barbs
Markets:
• Industrial die casting
• Injection molding
Features/Benefits:
• Valved couplers have silver colored sleeves for easy visual identification
• Fluorocarbon interface seal option for oil based media
• Standard and Push-Lok hose barb ends available in straight, 45, and 90 degree shapes
• Valved couplers can be used with valved or unvalved nipples
Applications:
• Mold coolant lines
• Die casting equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Dimensional Weight | Maximum Operating Temperature | Division | Hex Size | Plating Type | Application | Minimum Operating Temperature | Product Type | Seal Material | Connection Type | Body Material | Valve Style | Connection Thread Size (inch) | Flow Rate | Coupling Half | Connection Hose I.D. (inch) | Body Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPN251F | 7 In Stock | 149 In Stock | $6.64/each | EA | 200 psi | 0.007997601918465227 lb | 400 °F | Quick Coupling Division | 0.50 inch | na | Mold Coolant | -20 °F | Manual Connect | na | Female NPTF | BRASS | Unvalved | 1/8 - 27 | 3 | Male Nipple | na | 1/4 | |
| BPN252F | Quote Required | 161 In Stock | $5.59/each | EA | 200 psi | 0.007997601918465227 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Mold Coolant | -20 °F | Manual Connect | na | Female NPTF | BRASS | Unvalved | 1/4 - 18 | 3 | Male Nipple | na | 1/4 | |
| BPN352F | Quote Required | 221 In Stock | $5.32/each | EA | 200 psi | 0.007997601918465227 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Hydraulics | -20 °F | Manual Connect | na | Female NPTF | BRASS | Unvalved | 1/4 - 18 | 6 | Male Nipple | na | 3/8 | |
| BPN353F | 8 In Stock | 328 In Stock | $12.37/each | EA | 200 psi | 0.007997601918465227 lb | 400 °F | Quick Coupling Division | 0.75 inch | na | Hydraulics | -20 °F | Manual Connect | na | Female NPTF | BRASS | Unvalved | 3/8 - 18 | 6 | Male Nipple | na | 3/8 | |
| BPV252 | Quote Required | $17.73/each | EA | 200 psi | 0.006677158273381295 lb | 400 °F | Quick Coupling Division | 0.56 inch | na | Mold Coolant | -15 °F | Manual Connect | Fluorocarbon | Male NPTF | BRASS | Poppet | 1/4 - 18 | 3 | Male Nipple | na | 1/4 | ||
| BPV353 | Quote Required | 40 In Stock | $22.05/each | EA | 200 psi | 0.01335431654676259 lb | 400 °F | Quick Coupling Division | 0.69 inch | na | Hydraulics | -15 °F | Manual Connect | Fluorocarbon | Male NPTF | BRASS | Poppet | 3/8 - 18 | 6 | Male Nipple | na | 3/8 | |
| PC204 | Quote Required | 62 In Stock | $21.20/each | EA | 200 psi | 0.013329336530775381 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 1/4 | 1/4 | |
| PC204AV | Quote Required | 65 In Stock | $29.25/each | EA | 200 psi | 0.01335431654676259 lb | 400 °F | Quick Coupling Division | 0.63 inch | Zinc with clear trivalent chromate on sleeve | Mold Coolant | -15 °F | Manual Connect | Silicone - Fluorocarbon | Hose barb | BRASS | Poppet | na | 3 | Female Coupler | 1/4 | 1/4 | |
| PC204-BP | Quote Required | 209 In Stock | $29.67/each | EA | 200 psi | 0.01335431654676259 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Push-Lok hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 1/4 | 1/4 | |
| PC206AV | Quote Required | 11 In Stock | $29.76/each | EA | 200 psi | 0.013329336530775381 lb | 400 °F | Quick Coupling Division | 0.63 inch | Zinc with clear trivalent chromate on sleeve | Hydraulics | -15 °F | Manual Connect | Silicone - Fluorocarbon | Hose barb | BRASS | Poppet | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC206AV-BP | 1 Limited Stock | 10 In Stock | $27.93/each | EA | 200 psi | 0.02670863309352518 lb | 400 °F | Quick Coupling Division | 0.63 inch | Zinc with clear trivalent chromate on sleeve | Hydraulics | -15 °F | Manual Connect | Silicone - Fluorocarbon | Push-Lok hose barb | BRASS | Poppet | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC206-BP | Quote Required | 157 In Stock | $20.95/each | EA | 200 psi | 0.013329336530775381 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Mold Coolant | -20 °F | Manual Connect | Silicone | Push-Lok hose barb | BRASS | Unvalved | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC216-BP | 35 In Stock | 79 In Stock | $29.28/each | EA | 200 psi | 0.026658673061550762 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Push-Lok hose barb, 90 degree | BRASS | Unvalved | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC226-BP | 18 In Stock | 25 In Stock | $27.98/each | EA | 200 psi | 0.02670863309352518 lb | 400 °F | Quick Coupling Division | 0.63 inch | na | Mold Coolant | -20 °F | Manual Connect | Silicone | Push-Lok hose barb, 45 degree | BRASS | Unvalved | na | 3 | Female Coupler | 3/8 | 1/4 | |
| PC306 | 2 Limited Stock | 127 In Stock | $25.38/each | EA | 200 psi | 0.03998800959232614 lb | 400 °F | Quick Coupling Division | 0.88 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Hose barb | BRASS | Unvalved | na | 6 | Female Coupler | 3/8 | 3/8 | |
| PC306-BP | 1 Limited Stock | 1173 In Stock | $24.78/each | EA | 200 psi | 0.03998800959232614 lb | 400 °F | Quick Coupling Division | 0.88 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Push-Lok hose barb | BRASS | Unvalved | na | 6 | Female Coupler | 3/8 | 3/8 | |
| PC306V | 50 In Stock | 10 In Stock | $40.50/each | EA | 200 psi | 0.03998800959232614 lb | 400 °F | Quick Coupling Division | 0.88 inch | Zinc with clear trivalent chromate on sleeve | Mold Coolant | -15 °F | Manual Connect | Silicone - Fluorocarbon | Hose barb | BRASS | Poppet | na | 6 | Female Coupler | 3/8 | 3/8 | |
| PC308 | Quote Required | 994 In Stock | $24.96/each | EA | 200 psi | 0.03998800959232614 lb | 400 °F | Quick Coupling Division | 0.88 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Hose barb | BRASS | Unvalved | na | 6 | Female Coupler | 1/2 | 3/8 | |
| PC308-BP | 250 In Stock | 321 In Stock | $25.03/each | EA | 200 psi | 0.03998800959232614 lb | 400 °F | Quick Coupling Division | 0.88 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Push-Lok hose barb | BRASS | Unvalved | na | 6 | Female Coupler | 1/2 | 3/8 | |
| PC316-BP | 5 In Stock | 94 In Stock | $34.14/each | EA | 200 psi | 0.053317346123101524 lb | 400 °F | Quick Coupling Division | 0.88 inch | na | Hydraulics | -20 °F | Manual Connect | Silicone | Push-Lok hose barb, 90 degree | BRASS | Unvalved | na | 6 | Female Coupler | 3/8 | 3/8 |
