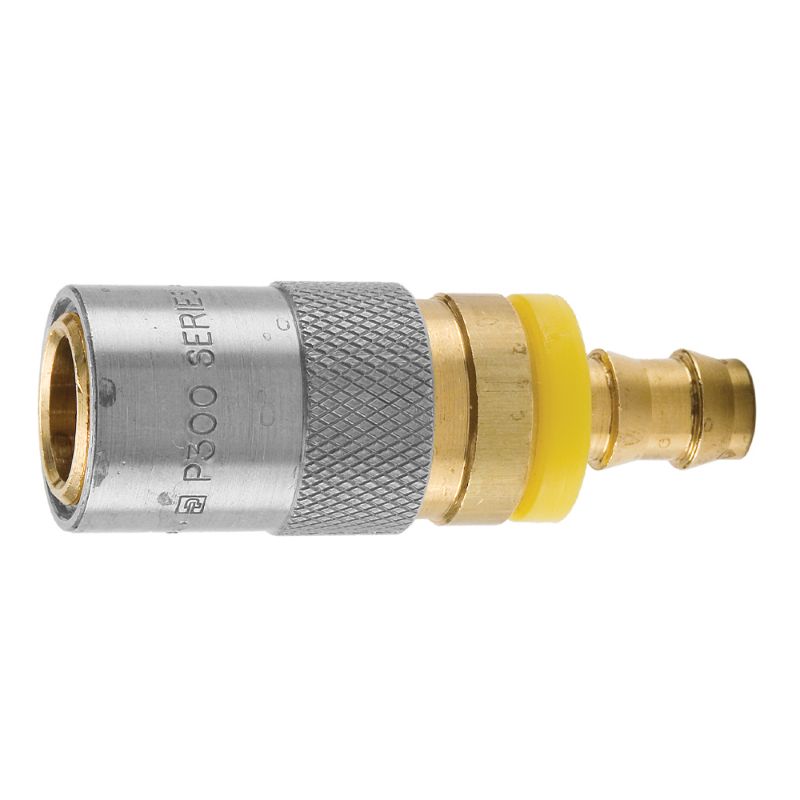

Parker PC206AV-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: Parker PC206AV-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PC206AV-BP
Price: 27.93 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:

1 Limited Stock

Jacksonville, FL

Partner Available:

10 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PC206AV-BP

$27.93/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Silicone - Fluorocarbon
Maximum Operating Pressure	200 psi	Plating Type	Zinc with clear trivalent chromate on sleeve
Product Type	Manual Connect	Minimum Operating Temperature	-15 °F
Application	Hydraulics	Maximum Operating Temperature	400 °F
Hex Size	0.63 inch	Dimensional Weight	0.02670863309352518 lb
Division	Quick Coupling Division	Body Size (inch)	1/4
Body Material	BRASS	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Valve Style	Poppet
Connection Type	Push-Lok hose barb	Flow Rate	3
Connection Hose I.D. (inch)	3/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
