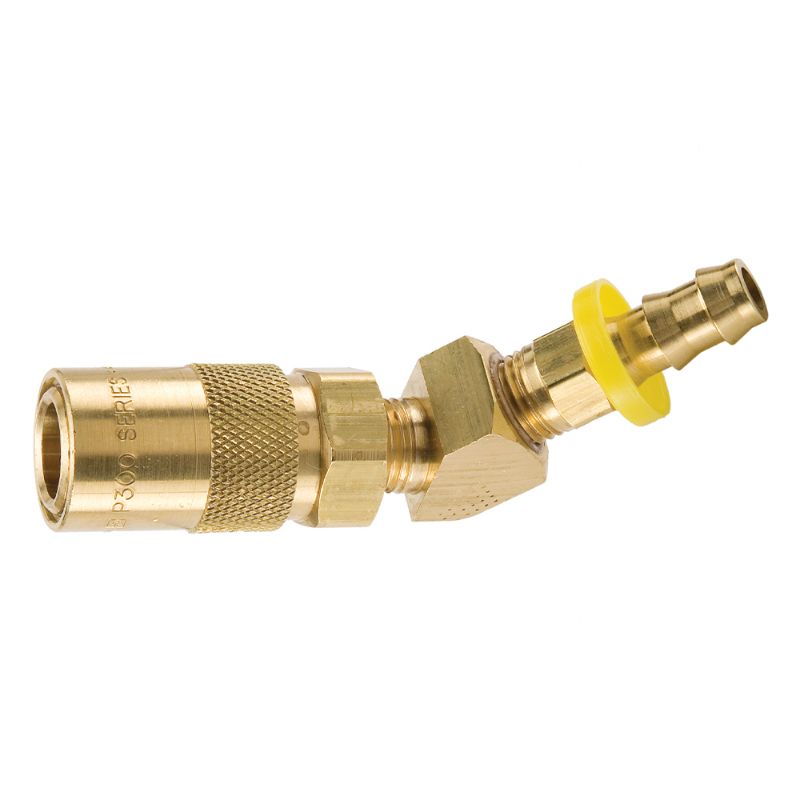

Parker PC226-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: Parker PC226-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PC226-BP
Price: 27.98 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:

18 In Stock

North Chesterfield, VA

Partner Available:

25 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PC226-BP

$27.98/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-20 °F
Plating Type	na	Application	Mold Coolant
Product Type	Manual Connect	Maximum Operating Temperature	400 °F
Hex Size	0.63 inch	Division	Quick Coupling Division
Dimensional Weight	0.02670863309352518 lb	Maximum Operating Pressure	200 psi
Seal Material	Silicone	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb, 45 degree
Flow Rate	3	Connection Hose I.D. (inch)	3/8
Valve Style	Unvalved	Body Size (inch)	1/4
Body Material	BRASS

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
