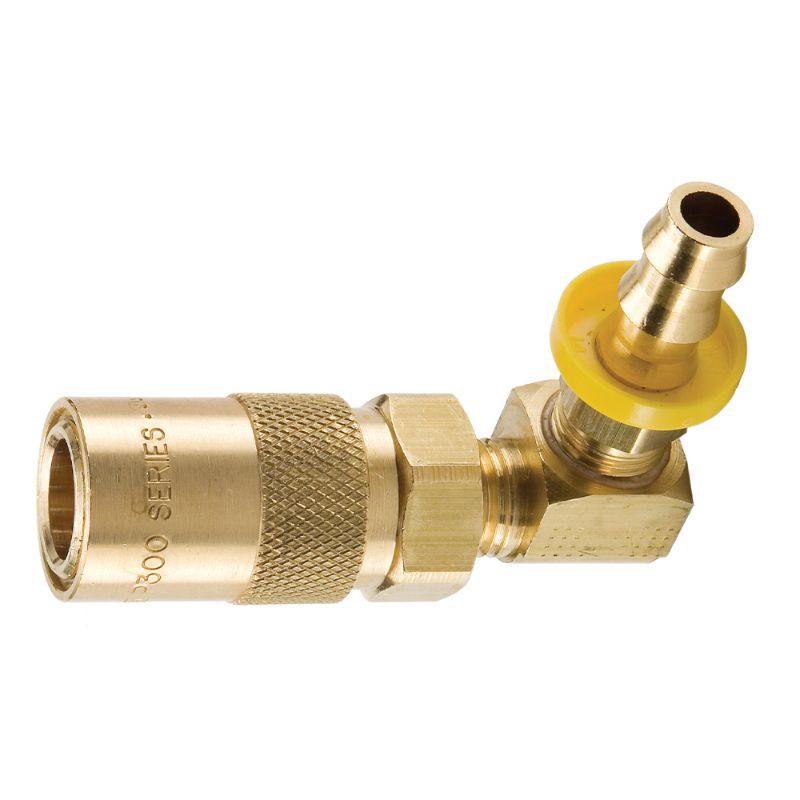

Parker PC316-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: Parker PC316-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PC316-BP
Price: 34.14 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:

5 In Stock

North Chesterfield, VA	4
Sumter, SC	1

Partner Available:

94 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. PC316-BP

$34.14/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Hydraulics
Plating Type	na	Minimum Operating Temperature	-20 °F
Product Type	Manual Connect	Hex Size	0.88 inch
Dimensional Weight	0.053317346123101524 lb	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Seal Material	Silicone
Maximum Operating Pressure	200 psi	Flow Rate	6
Connection Type	Push-Lok hose barb, 90 degree	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Valve Style	Unvalved
Connection Hose I.D. (inch)	3/8	Body Size (inch)	3/8
Body Material	BRASS

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
