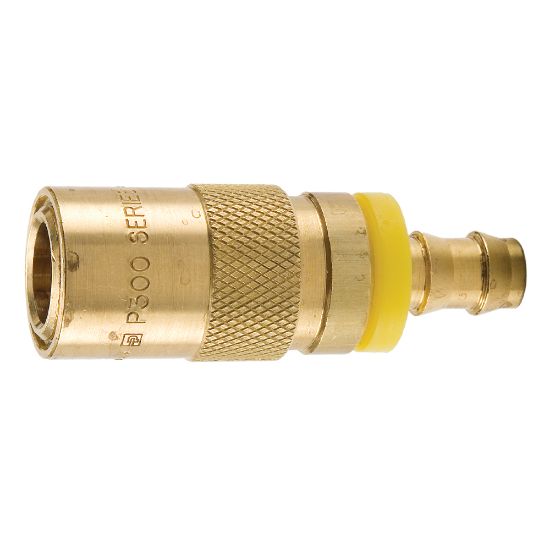

Parker PC206-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:	Quote Required
Partner Available:	157 In Stock

Brand Parker

Part No. PC206-BP

$20.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	200 psi
Dimensional Weight	0.013329336530775381 lb	Application	Mold Coolant
Product Type	Manual Connect	Plating Type	na
Seal Material	Silicone	Hex Size	0.63 inch
Minimum Operating Temperature	-20 °F	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Body Material	BRASS
Connection Hose I.D. (inch)	3/8	Valve Style	Unvalved
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Coupling Half	Female Coupler	Connection Type	Push-Lok hose barb
Flow Rate	3
