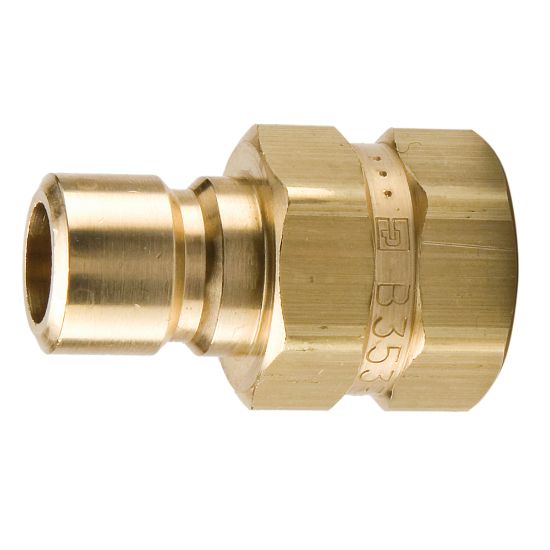

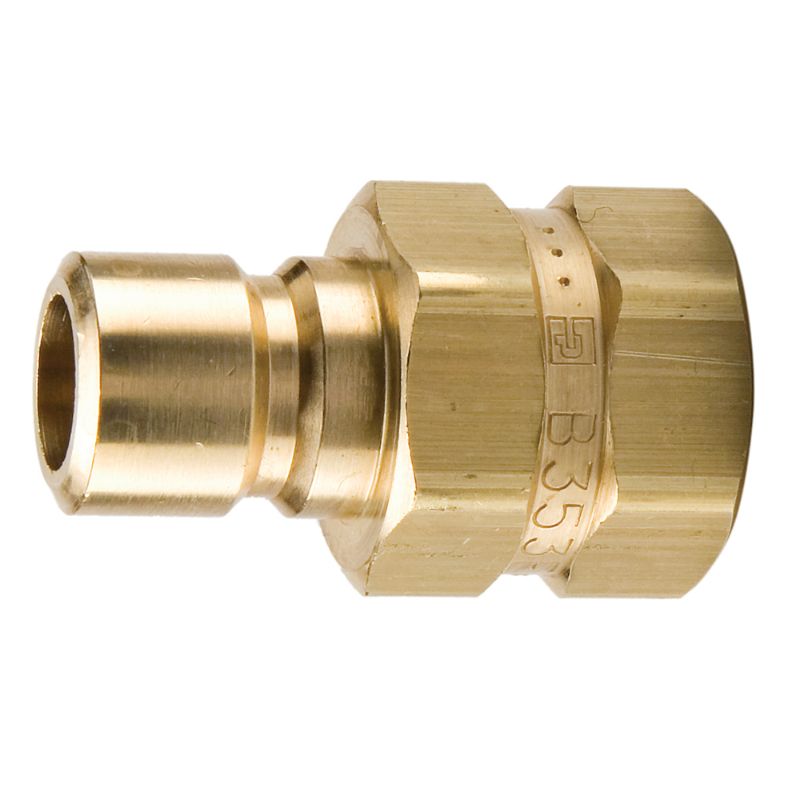

Parker BPN352F - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

AFP Availability:	Quote Required
Partner Available:	221 In Stock

Brand Parker

Part No. BPN352F

$5.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Hex Size	0.63 inch
Plating Type	na	Product Type	Manual Connect
Application	Hydraulics	Minimum Operating Temperature	-20 °F
Seal Material	na	Maximum Operating Pressure	200 psi
Dimensional Weight	0.007997601918465227 lb	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Male Nipple	Flow Rate	6
Connection Hose I.D. (inch)	na	Connection Type	Female NPTF
Body Material	BRASS	Body Size (inch)	3/8
Valve Style	Unvalved
