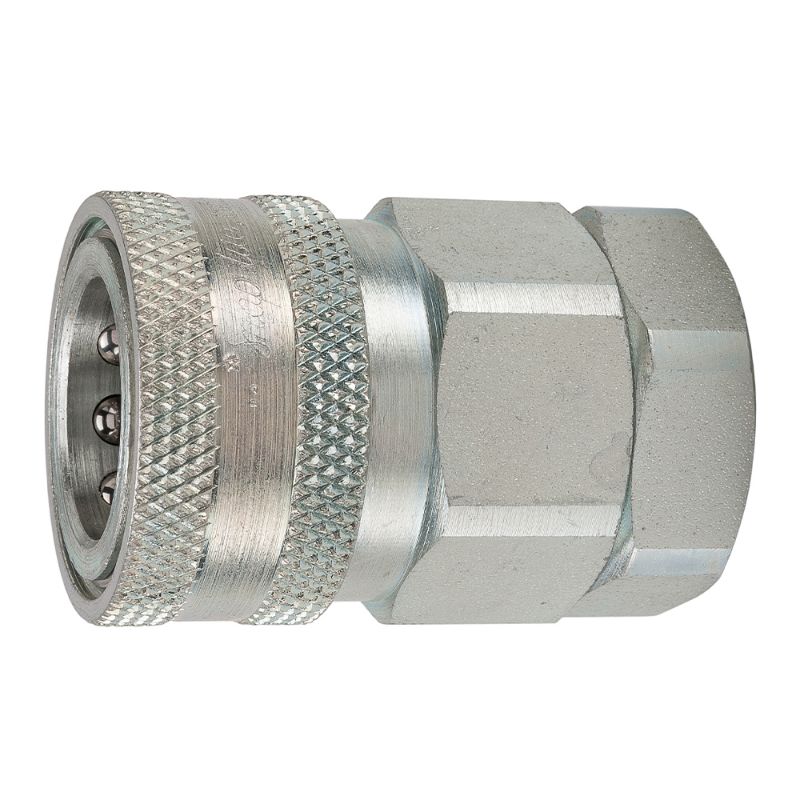

Parker PHC6-6FV - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PHC6-6FV

$25.20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Minimum Operating Temperature	-15 °F
Hex Size	1 inch	Product Type	Manual Connect
Valve Type	Unvalved	Application	General Purpose
Seal Material	Fluorocarbon	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Connection Thread Size (inch)	3/8 - 18
Connection Type	Female NPTF	Valve Type	Unvalved
Maximum Operating Pressure	4500	Coupling Half	Female Coupler
Body Size (inch)	3/8	Body Material	Steel
