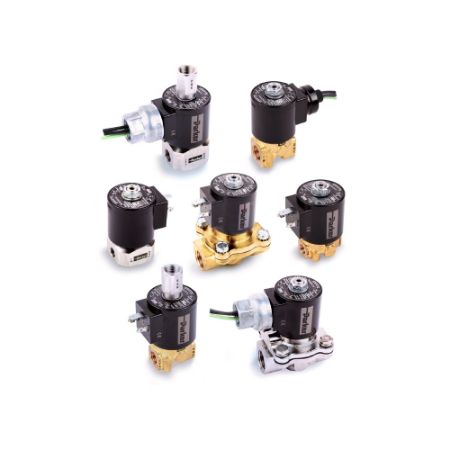

G7 SERIES Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring™ and Skinner® valves have evolved.
The next generation of 2/2 and 3/2 solenoid valves delivers the confidence to get the job done in the most demanding applications.
High performance, Express Ship Program-eligibility, and a host of new and innovative features make doing business easier than ever before.
Ensuring high performance and an optimized total cost of ownership, Parker continues to focus on Engineering Your Success.
Features/ Benefits:
• Engineered for Long Life (up to 20 million cycles)
• Industry-Leading Pressure, Flow, and Temperature ratings - even in DC voltages
• IP69-rated Solenoid Coils
• Corrosion-Resistant Construction
• 24-Hour Express Ship Program
• Durable Laser-Marked Identification
• Innovative Parker Tracking System (PTS)
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Applications
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Commercial and Industrial Plumbing
• Oil Burners
• Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
Read More...The next generation of 2/2 and 3/2 solenoid valves delivers the confidence to get the job done in the most demanding applications.
High performance, Express Ship Program-eligibility, and a host of new and innovative features make doing business easier than ever before.
Ensuring high performance and an optimized total cost of ownership, Parker continues to focus on Engineering Your Success.
Features/ Benefits:
• Engineered for Long Life (up to 20 million cycles)
• Industry-Leading Pressure, Flow, and Temperature ratings - even in DC voltages
• IP69-rated Solenoid Coils
• Corrosion-Resistant Construction
• 24-Hour Express Ship Program
• Durable Laser-Marked Identification
• Innovative Parker Tracking System (PTS)
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Applications
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Commercial and Industrial Plumbing
• Oil Burners
• Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | Preventive Maintenance Kit | Actuation Type | Seal Material | Installation | Exhaust Flow Coefficient | Power Consumption | Division | Function | Configuration | Main Flow Coefficient | Body Material | Port Size | Minimum Pressure Differential | Input Voltage | Coil Specifications Met | Maximum Ambient Temperature | Orifice Size | Maximum Fluid Temperature | Specifications Met | Maximum Pressure Differential | Coil Type | Seal Material | Configuration | Voltage | Function | Body Material | Port Size (inch) | Orifice Size (inch) | Minimum Pressure Differential (psi) | Maximum Operating Pressure Differential (psig) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20CC041V7C7F | Quote Required | 35 In Stock | $155.51/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 1.06 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 110/50 VAC | IP69 | 150 °F | 9/32 inch | 185 °F | CULus Safety Shutoff | 40 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 9/32 | 0 | 40 | |
| 20CC041V7D7B | 2 Limited Stock | Quote Required | $140.80/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Closed (NC) | 1.06 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 24.0 VDC | IP65 | 150 °F | 9/32 inch | 185 °F | CURus Safety Shutoff | 15 psig | DIN 43650A / ISO 4400 | FKM | Normally Closed | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 9/32 | 0 | 15 | |
| 20CC04GV7B7A | Quote Required | $148.21/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Closed (NC) | 0.1 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 12.0 VDC | IP69 | 150 °F | 1/16 inch | 185 °F | CURus Safety Shutoff | 750 psig | Leads-only (Incl. Ground Lead) | FKM | Normally Closed | 12 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 1/16 | 0 | 750 | ||
| 20CC04GV7D7B | Quote Required | $139.31/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.1 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 24.0 VDC | IP65 | 150 °F | 1/16 inch | 185 °F | CURus Safety Shutoff | 750 psig | DIN 43650A / ISO 4400 | FKM | Normally Closed | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 1/16 | 0 | 750 | ||
| 20CC04LV7C7B | Quote Required | $153.57/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.18 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 24.0 VDC | IP69 | 150 °F | 3/32 inch | 185 °F | CULus Safety Shutoff | 520 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 520 | ||
| 20CC04LV7C7F | Quote Required | $149.42/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.18 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 110/50 VAC | IP69 | 150 °F | 3/32 inch | 185 °F | CULus Safety Shutoff | 550 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 550 | ||
| 20CC04PV7C7F | Quote Required | $149.76/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Closed (NC) | 0.29 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 120/60 VAC | IP69 | 150 °F | 1/8 inch | 185 °F | CULus Safety Shutoff | 375 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 1/8 | 0 | 375 | ||
| 20CC04QV7B7A | Quote Required | $148.47/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.43 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 12.0 VDC | IP69 | 150 °F | 5/32 inch | 185 °F | CURus Safety Shutoff | 85 psig | Leads-only (Incl. Ground Lead) | FKM | Normally Closed | 12 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 5/32 | 0 | 85 | ||
| 20CC04TV7C7F | Quote Required | $150.83/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Closed (NC) | 0.79 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 110/50 VAC | IP69 | 150 °F | 7/32 inch | 185 °F | CULus Safety Shutoff | 110 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 7/32 | 0 | 110 | ||
| 20CC06TV7 | Quote Required | 4 In Stock | $139.07/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.79 Cv | Stainless Steel 303 | NPT 3/8 inch | 0 psi | Pressure Vessel Only (AC or DC Voltage) | Requires G7 Series Coil Kit | 150 °F | 7/32 inch | 185 °F | - | 110.0 psig (AC) | Requires G7 Series Coil Kit | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | 303 Stainless Steel | 3/8 NPT | 7/32 | 0 | 110 (AC) / 40 (DC) | |
| 20CC06TV7C7F | Quote Required | $175.87/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Closed (NC) | 0.79 Cv | Stainless Steel 303 | NPT 3/8 inch | 0 psi | 120/60 VAC | IP69 | 150 °F | 7/32 inch | 185 °F | CULus Safety Shutoff | 110 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 3/8 NPT | 7/32 | 0 | 110 | ||
| 20CF04LV7 | Quote Required | 1 Limited Stock | $149.10/each | 7R002 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Open (NO) | 0.17 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | Pressure Vessel Only (AC or DC Voltage) | Requires G7 Series Coil Kit | 150 °F | 3/32 inch | 185 °F | - | 275 psig | Requires G7 Series Coil Kit | FKM | Normally Open | Pressure Vessel Only (AC or DC Voltage) | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 275 | |
| 20CF04LV7C7A | Quote Required | $187.99/each | 7R002 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Pressure In Body - Out Sleeve | 0.17 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 12.0 VDC | IP69 | 150 °F | 3/32 inch | 185 °F | CULus General Purpose | 275 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Open | 12 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 275 | ||
| 20CF04LV7C7B | Quote Required | $187.99/each | 7R002 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Pressure In Body - Out Sleeve | 0.17 Cv | Stainless Steel 303 | NPT 1/4 inch | 0 psi | 24.0 VDC | IP69 | 150 °F | 3/32 inch | 185 °F | CULus General Purpose | 275 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Open | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 275 | ||
| 20LC04QN7 | Quote Required | $90.61/each | 7R004 | Direct Acting | NBR | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.43 Cv | Lead-Free Brass | NPT 1/4 inch | 0 psi | Pressure Vessel Only (AC or DC Voltage) | Requires G7 Series Coil Kit | 150 °F | 5/32 inch | 185 °F | - | 230 psig (AC) | Requires G7 Series Coil Kit | NBR | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 230 (AC) / 85 (DC) | ||
| 20LC04QV7 | Quote Required | $94.83/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | Normally Closed (NC) | 0.43 Cv | Lead-Free Brass | NPT 1/4 inch | 0 psi | Pressure Vessel Only (AC or DC Voltage) | Requires G7 Series Coil Kit | 150 °F | 5/32 inch | 185 °F | - | 230 psig (AC) | Requires G7 Series Coil Kit | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 230 (AC) / 85 (DC) | ||
| 20LC04QV7B7B | 10 In Stock | Quote Required | $142.97/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 | Fluid Control Division | 2-Way | Normally Closed (NC) | 0.43 | Lead-Free Brass | NPT 1/4 | 0 | 24.0 | IP69 | 150 | 5/32 | 185 | CURus Safety Shutoff | 85 | Leads-only (Incl. Ground Lead) | FKM | Normally Closed | 24 VDC | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 85 | |
| 20LC04QV7C7F | Quote Required | $138.93/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.43 Cv | Lead-Free Brass | NPT 1/4 inch | 0 psi | 120/60 VAC | IP69 | 150 °F | 5/32 inch | 185 °F | CULus Safety Shutoff | 230 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 230 | ||
| 20LC04TV7 | Quote Required | $94.82/each | 7R003 | Direct Acting | FKM | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.79 Cv | Lead-Free Brass | NPT 1/4 inch | 0 psi | Pressure Vessel Only (AC or DC Voltage) | Requires G7 Series Coil Kit | 150 °F | 7/32 inch | 185 °F | - | 110.0 psig (AC) | Requires G7 Series Coil Kit | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Lead-Free Brass | 1/4 NPT | 7/32 | 0 | 110 (AC) / 40 (DC) | ||
| 20LC06TN7C7F | Quote Required | $156.20/each | 7R004 | Direct Acting | NBR | IOM7220 | n/a | 10 W | Fluid Control Division | 2-Way | All Ports in Body | 0.79 Cv | Lead-Free Brass | NPT 3/8 inch | 0 psi | 110/50 VAC | IP69 | 150 °F | 7/32 inch | 185 °F | CULus Safety Shutoff | 110 psig | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NBR | Normally Closed | 120/60, 110/50 | 2-Way | Lead-Free Brass | 3/8 NPT | 7/32 | 0 | 110 |
