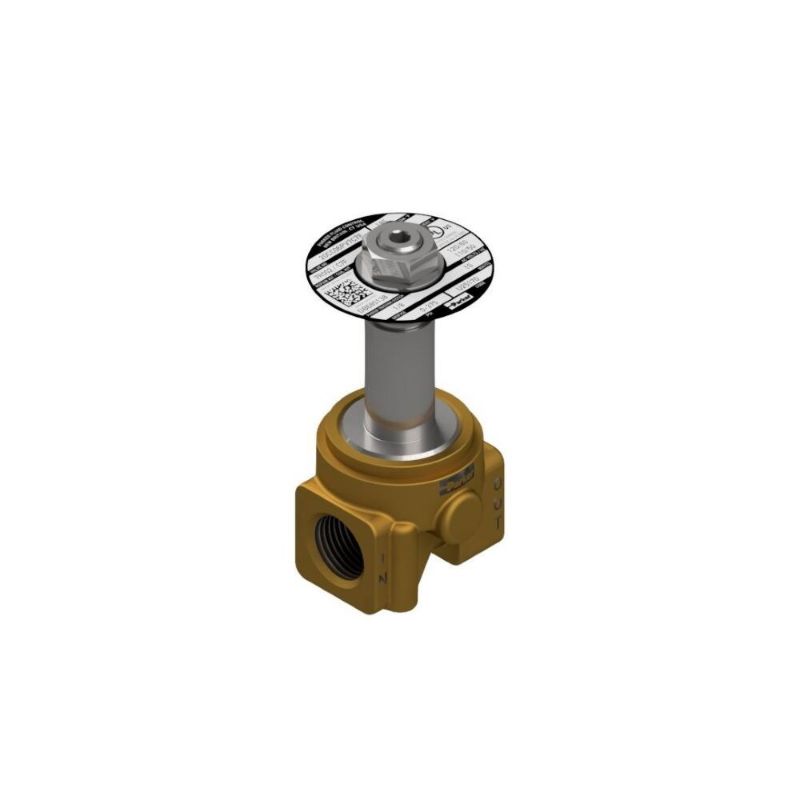

Parker 20LC04TV7 - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20LC04TV7

$89.29

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Actuation Type	Direct Acting	Minimum Pressure Differential	0 psi
Seal Material	FKM	Body Material	Lead-Free Brass
Configuration	All Ports in Body	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Function	2-Way	Port Size	NPT 1/4 inch
Installation	IOM7220	Power Consumption	10 W
Specifications Met	-	Maximum Fluid Temperature	185 °F
Preventive Maintenance Kit	7R003	Maximum Ambient Temperature	150 °F
Coil Specifications Met	Requires G7 Series Coil Kit	Exhaust Flow Coefficient	n/a
Orifice Size	7/32 inch	Main Flow Coefficient	0.79 Cv
Maximum Pressure Differential	110.0 psig (AC)	Seal Material	FKM
Body Material	Lead-Free Brass	Configuration	Normally Closed
Voltage	Pressure Vessel Only (AC or DC Voltage)	Function	2-Way
Coil Type	Requires G7 Series Coil Kit	Port Size (inch)	1/4 NPT
Minimum Pressure Differential (psi)	0	Orifice Size (inch)	7/32
Maximum Operating Pressure Differential (psig)	110 (AC) / 40 (DC)
