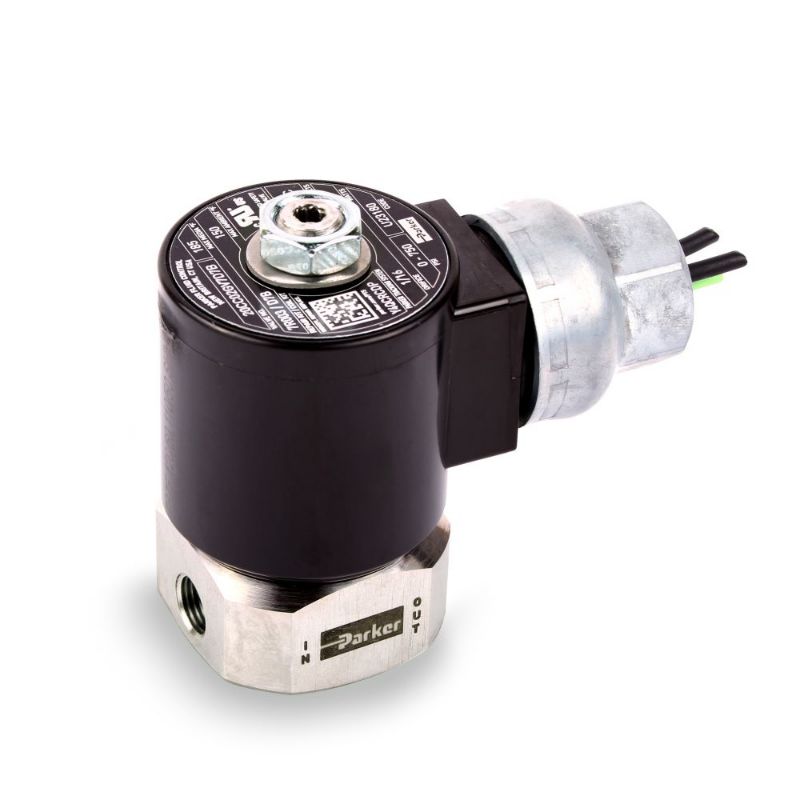

Parker 20CF04LV7C7A - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CF04LV7C7A

$187.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel 303
Main Flow Coefficient	0.17 Cv	Input Voltage	12.0 VDC
Minimum Pressure Differential	0 psi	Port Size	NPT 1/4 inch
Coil Specifications Met	IP69	Specifications Met	CULus General Purpose
Maximum Pressure Differential	275 psig	Exhaust Flow Coefficient	n/a
Maximum Fluid Temperature	185 °F	Orifice Size	3/32 inch
Actuation Type	Direct Acting	Function	2-Way
Power Consumption	10 W	Installation	IOM7220
Seal Material	FKM	Preventive Maintenance Kit	7R002
Maximum Ambient Temperature	150 °F	Division	Fluid Control Division
Configuration	Pressure In Body - Out Sleeve	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Seal Material	FKM	Configuration	Normally Open
Voltage	12 VDC	Function	2-Way
Body Material	303 Stainless Steel	Port Size (inch)	1/4 NPT
Orifice Size (inch)	3/32	Minimum Pressure Differential (psi)	0
Maximum Operating Pressure Differential (psig)	275
