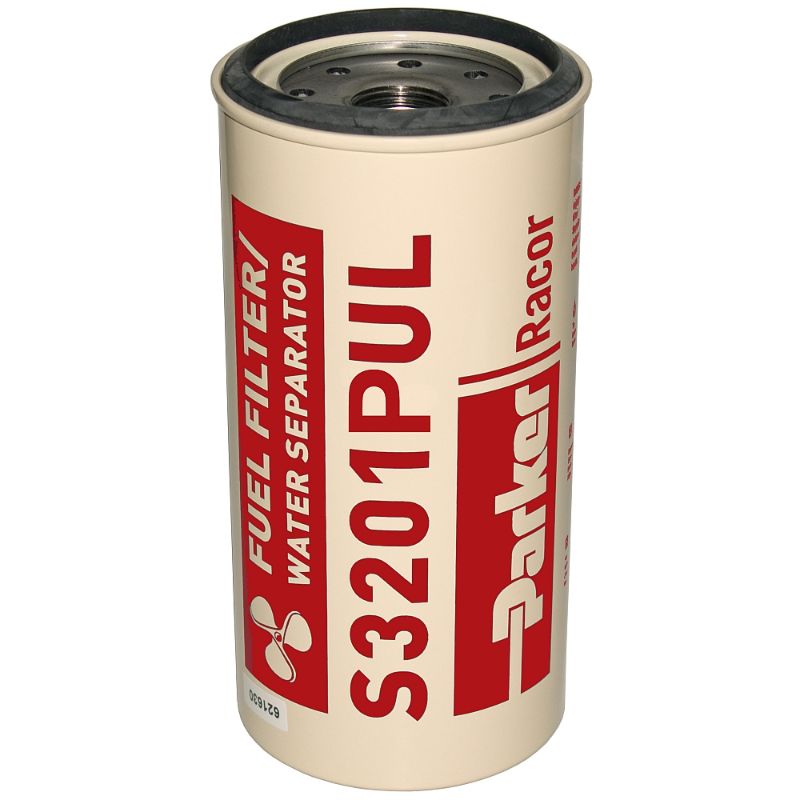

Parker S3201PUL - Marine Replacement Filter Elements – Racor Marine Spin-on Series

Spin-on Series Marine Replacement Filter Elements utilize Racor’s proprietary Aquabloc® media to reliably remove dirt and water from fuel, thus providing maximum protection of inboard and outboard engines. UL-approved versions available.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S3201PUL

$64.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Racor
Flow Direction	Outside-to-Inside	Product Series	Marine Diesel Spin-on FF/WS
Filter Element Type	30 Micron Aquabloc® Spin-on	Division	Engine Mobile Original Equipment Division
Connection Type	1"-14	Related Parts	Metal Bowl: RK 30495
UL Certification	Yes	Micron Rating	98% @ 30 Micron
Height	7.4 in / 189 mm	Series	490MAM, 4120MAM
Outside Diameter	3.8 in / 97 mm

Product resources

Literature and Reference Materials
