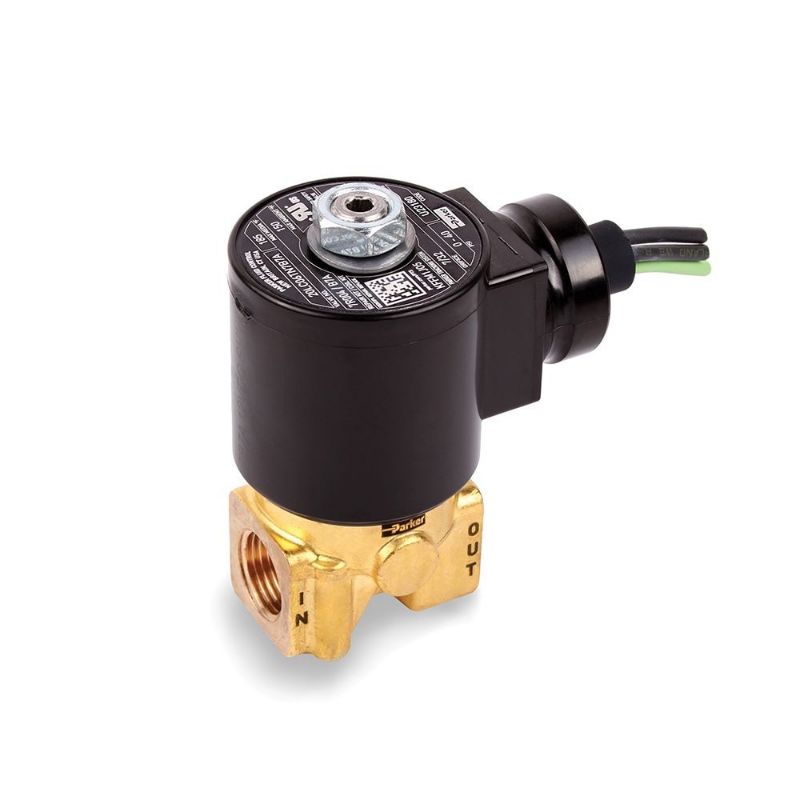

Parker 20LC04QV7B7B - G7 SERIES Solenoid Valves

Name: Parker 20LC04QV7B7B - G7 SERIES Solenoid Valves
SKU: 20LC04QV7B7B
Price: 142.97 USD
Availability: InStock

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

AFP Availability:

10 In Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 20LC04QV7B7B

$142.97/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Input Voltage	24.0
Minimum Pressure Differential	0	Main Flow Coefficient	0.43
Body Material	Lead-Free Brass	Maximum Ambient Temperature	150
Port Size	NPT 1/4	Coil Specifications Met	IP69
Maximum Pressure Differential	85	Specifications Met	CURus Safety Shutoff
Orifice Size	5/32	Maximum Fluid Temperature	185
Preventive Maintenance Kit	7R003	Exhaust Flow Coefficient	n/a
Power Consumption	10	Seal Material	FKM
Installation	IOM7220	Actuation Type	Direct Acting
Division	Fluid Control Division	Function	2-Way
Configuration	Normally Closed (NC)	Seal Material	FKM
Body Material	Lead-Free Brass	Configuration	Normally Closed
Voltage	24 VDC	Function	2-Way
Coil Type	Leads-only (Incl. Ground Lead)	Port Size (inch)	1/4 NPT
Minimum Pressure Differential (psi)	0	Orifice Size (inch)	5/32
Maximum Operating Pressure Differential (psig)	85

Product resources

Literature and Reference Materials
