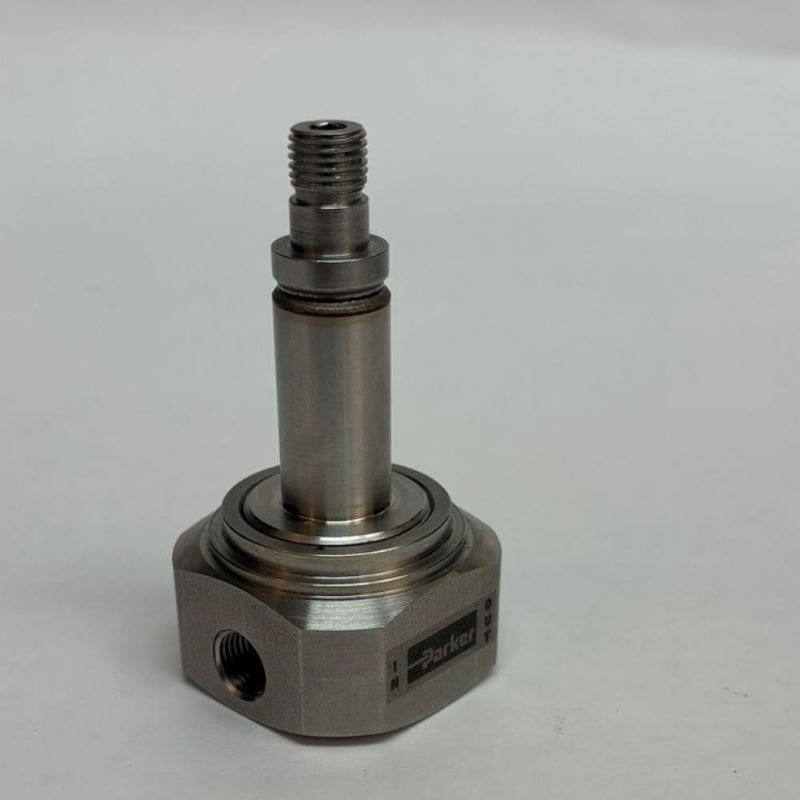

Parker 20CC06TV7 - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 20CC06TV7

$138.83

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Actuation Type	Direct Acting	Minimum Pressure Differential	0 psi
Seal Material	FKM	Body Material	Stainless Steel 303
Configuration	All Ports in Body	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Function	2-Way	Installation	IOM7220
Power Consumption	10 W	Specifications Met	-
Maximum Fluid Temperature	185 °F	Preventive Maintenance Kit	7R003
Maximum Ambient Temperature	150 °F	Coil Specifications Met	Requires G7 Series Coil Kit
Exhaust Flow Coefficient	n/a	Port Size	NPT 3/8 inch
Orifice Size	7/32 inch	Main Flow Coefficient	0.79 Cv
Maximum Pressure Differential	110.0 psig (AC)	Seal Material	FKM
Configuration	Normally Closed	Voltage	Pressure Vessel Only (AC or DC Voltage)
Function	2-Way	Coil Type	Requires G7 Series Coil Kit
Body Material	303 Stainless Steel	Minimum Pressure Differential (psi)	0
Port Size (inch)	3/8 NPT	Orifice Size (inch)	7/32
Maximum Operating Pressure Differential (psig)	110 (AC) / 40 (DC)
