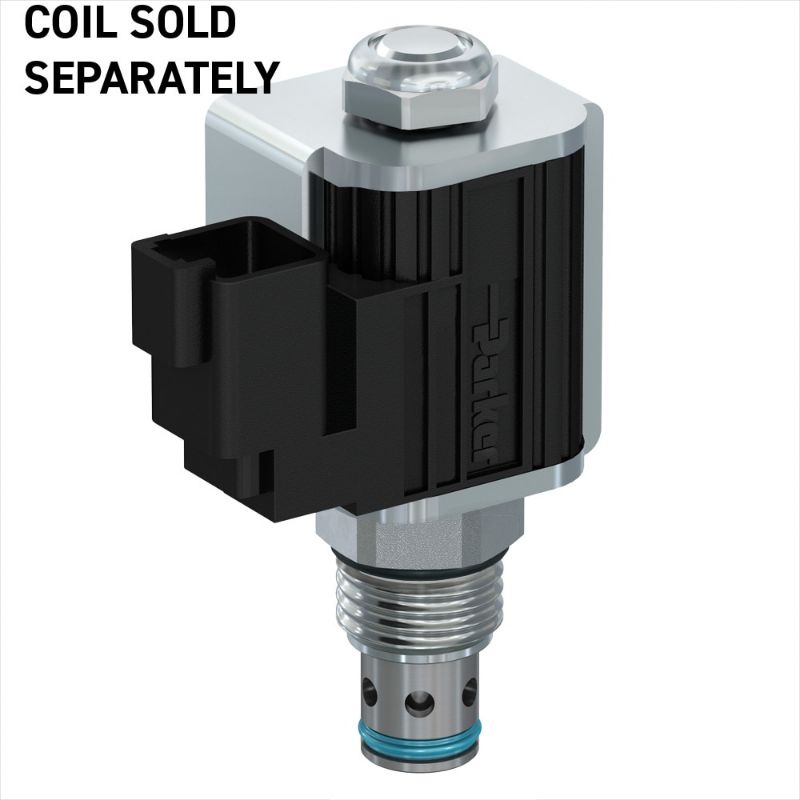

Parker DSH101N - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

AFP Availability:	Quote Required
Partner Available:	22 In Stock

Brand Parker

Part No. DSH101N

$129.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hydraulic Systems Division
Installation Torque	69-75 Nm	Minimum Operating Temperature	-37 °C
Wire Mesh Screen Included	No	Flow Rate	15 Gal/min
Actuation Type	Electrical	Free Reverse Flow	No
Response Time	70 ms	Weight	0.2 kg
Seal Material	D-Ring (Standard)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Coil Nut Tightening Torque	7-10 Nm	Maximum Operating Pressure	350 bar
Flow Direction	Side to Nose (2-1)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	5000 psi	Adjustment Mechanism	N/A
Valve Material	All parts steel. All operating parts hardened steel	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	2-way	Configuration	Normally Open
Cavity Size	C10-2	Override Functionality	N/A
Maximum Operating Temperature	+200 °F	Coil Type	5/8" Super Coil
Leak Rate	5 drops/min	Body Material	N/A
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Operating Temperature	-35 to +200 °F	Operation Type	Solenoid operated
Maximum Flow Rate	60 L/min	Configuration	Normally Open
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	15 GAL/MIN, 60 L/MIN
