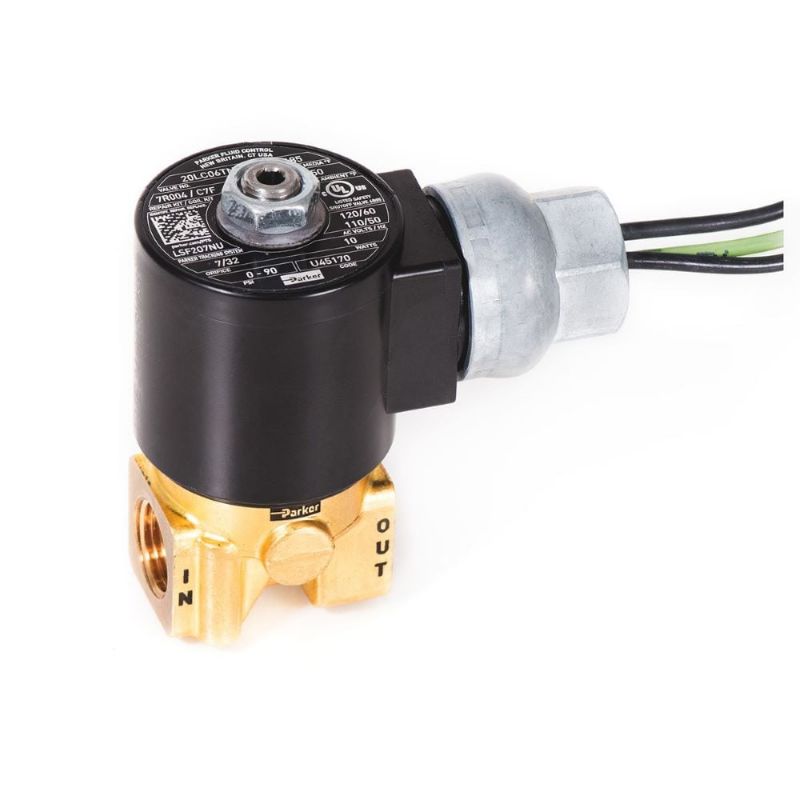

Parker 20LC06TN7C7F - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20LC06TN7C7F

$151.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Seal Material	NBR	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Body Material	Lead-Free Brass
Input Voltage	110/50 VAC	Configuration	All Ports in Body
Specifications Met	CULus Safety Shutoff	Function	2-Way
Installation	IOM7220	Power Consumption	10 W
Maximum Fluid Temperature	185 °F	Maximum Ambient Temperature	150 °F
Coil Specifications Met	IP69	Exhaust Flow Coefficient	n/a
Port Size	NPT 3/8 inch	Orifice Size	7/32 inch
Main Flow Coefficient	0.79 Cv	Maximum Pressure Differential	110 psig
Preventive Maintenance Kit	7R004	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Body Material	Lead-Free Brass
Configuration	Normally Closed	Voltage	120/60, 110/50
Function	2-Way	Minimum Pressure Differential (psi)	0
Port Size (inch)	3/8 NPT	Orifice Size (inch)	7/32
Maximum Operating Pressure Differential (psig)	110
