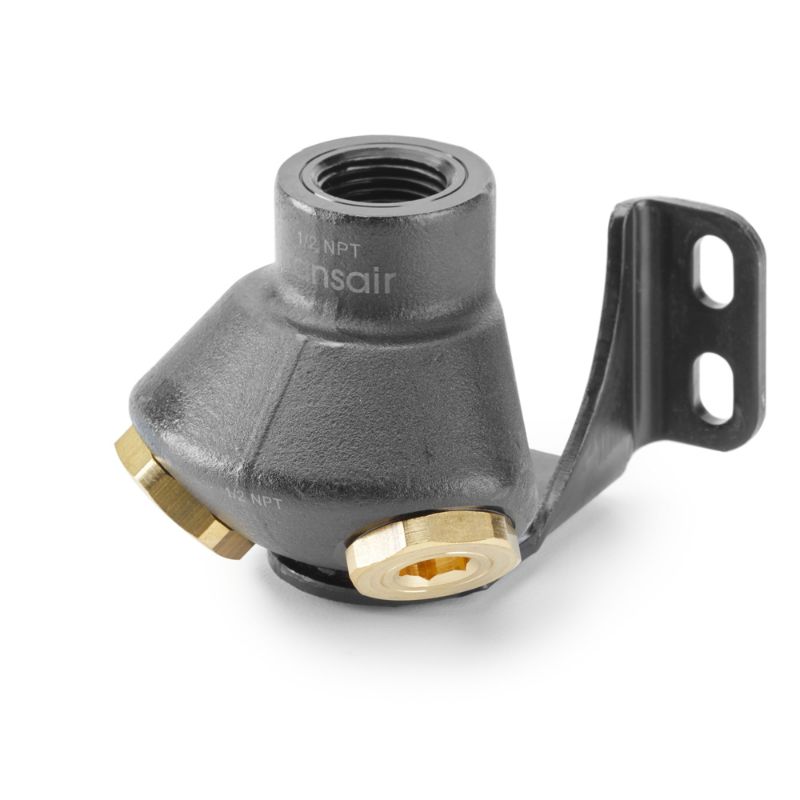

Parker 6691 22 22 - Transair® Wall Brackets for Stainless Steel Pipe

Transair wall brackets for stainless steel pipe are designed for quick connection of tools and machinery to the supply line.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 6691 22 22

$81.39/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Air
Division	Low Pressure Connectors Europe Division	Connection 2 Size	NPT 1/2
Configuration	Port to Port	Assembly	n/a
Connection 2 Type	Female NPT	Connection 1 Size	NPT 1/2
Technology	Pneumatics	Maximum Operating Temperature	185
Quantity per Box	1	Assembly Time	0.15
Division	Fluid System Connectors Division	Shape	Straight
Product Type	Wall Brackets	Application	Compressed Air
Minimum Operating Temperature	-4	Body Material	Technical Polymer
Weight	0,630	Brand	Parker
Industry	General Industrial	Seal Material	NBR
Connection 3 Type	Female NPT	Pipe Outside Diameter	25\|16/5
Maximum Operating Pressure	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c	Connection 1 Type	Female NPT
Specifications Met	CE	Connection 3 Size	NPT 1/4
Pipe O.D. (mm)	N/A	Pipe O.D. (inch)	N/A
Connection Thread Size (inch)	1/2	Connection Type	Female Threaded NPT
Shape	2 Port 45° Threaded Wall Bracket
