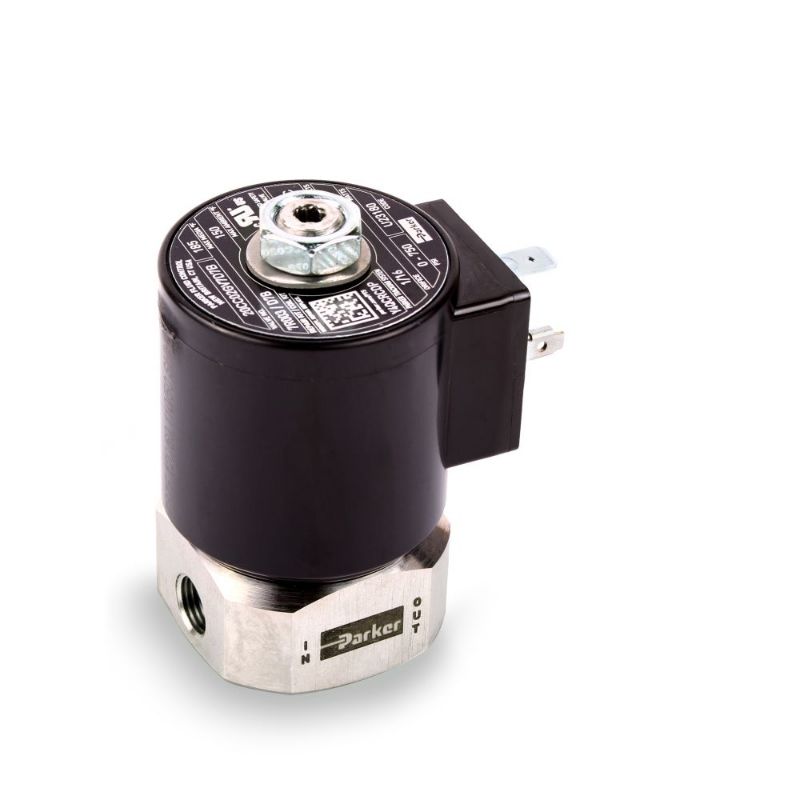

Parker 20CC04GV7D7B - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CC04GV7D7B

$136.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Input Voltage	24.0 VDC	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Seal Material	FKM
Body Material	Stainless Steel 303	Configuration	All Ports in Body
Orifice Size	1/16 inch	Specifications Met	CURus Safety Shutoff
Function	2-Way	Port Size	NPT 1/4 inch
Installation	IOM7220	Power Consumption	10 W
Main Flow Coefficient	0.1 Cv	Maximum Fluid Temperature	185 °F
Preventive Maintenance Kit	7R003	Maximum Ambient Temperature	150 °F
Maximum Pressure Differential	750 psig	Coil Specifications Met	IP65
Exhaust Flow Coefficient	n/a	Coil Type	DIN 43650A / ISO 4400
Seal Material	FKM	Configuration	Normally Closed
Voltage	24 VDC	Function	2-Way
Body Material	303 Stainless Steel	Port Size (inch)	1/4 NPT
Orifice Size (inch)	1/16	Minimum Pressure Differential (psi)	0
Maximum Operating Pressure Differential (psig)	750
