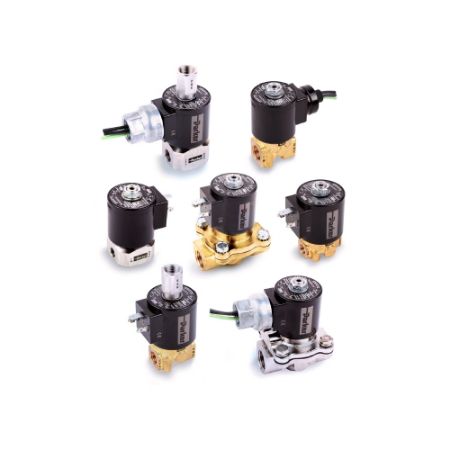

G7 SERIES Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring™ and Skinner® valves have evolved.
The next generation of 2/2 and 3/2 solenoid valves delivers the confidence to get the job done in the most demanding applications.
High performance, Express Ship Program-eligibility, and a host of new and innovative features make doing business easier than ever before.
Ensuring high performance and an optimized total cost of ownership, Parker continues to focus on Engineering Your Success.
Features/ Benefits:
• Engineered for Long Life (up to 20 million cycles)
• Industry-Leading Pressure, Flow, and Temperature ratings - even in DC voltages
• IP69-rated Solenoid Coils
• Corrosion-Resistant Construction
• 24-Hour Express Ship Program
• Durable Laser-Marked Identification
• Innovative Parker Tracking System (PTS)
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Applications
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Commercial and Industrial Plumbing
• Oil Burners
• Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
Read More...The next generation of 2/2 and 3/2 solenoid valves delivers the confidence to get the job done in the most demanding applications.
High performance, Express Ship Program-eligibility, and a host of new and innovative features make doing business easier than ever before.
Ensuring high performance and an optimized total cost of ownership, Parker continues to focus on Engineering Your Success.
Features/ Benefits:
• Engineered for Long Life (up to 20 million cycles)
• Industry-Leading Pressure, Flow, and Temperature ratings - even in DC voltages
• IP69-rated Solenoid Coils
• Corrosion-Resistant Construction
• 24-Hour Express Ship Program
• Durable Laser-Marked Identification
• Innovative Parker Tracking System (PTS)
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Applications
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Commercial and Industrial Plumbing
• Oil Burners
• Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Actuation Type | Minimum Pressure Differential | Seal Material | Input Voltage | Body Material | Configuration | Specifications Met | Function | Port Size | Installation | Orifice Size | Power Consumption | Main Flow Coefficient | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Coil Specifications Met | Exhaust Flow Coefficient | Coil Type | Seal Material | Configuration | Voltage | Function | Body Material | Port Size (inch) | Orifice Size (inch) | Minimum Pressure Differential (psi) | Maximum Operating Pressure Differential (psig) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20CC041V7C7F | Quote Required | 35 In Stock | $149.80/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 110/50 VAC | Stainless Steel 303 | All Ports in Body | CULus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 9/32 inch | 10 W | 1.06 Cv | 185 °F | 7R003 | 150 °F | 40 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 9/32 | 0 | 40 | |
| 20CC041V7D7B | 2 Limited Stock | Quote Required | $140.80/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 24.0 VDC | Stainless Steel 303 | Normally Closed (NC) | CURus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 9/32 inch | 10 W | 1.06 Cv | 185 °F | 7R003 | 150 °F | 15 psig | IP65 | n/a | DIN 43650A / ISO 4400 | FKM | Normally Closed | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 9/32 | 0 | 15 | |
| 20CC04GV7B7A | Quote Required | $148.21/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 12.0 VDC | Stainless Steel 303 | Normally Closed (NC) | CURus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 1/16 inch | 10 W | 0.1 Cv | 185 °F | 7R003 | 150 °F | 750 psig | IP69 | n/a | Leads-only (Incl. Ground Lead) | FKM | Normally Closed | 12 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 1/16 | 0 | 750 | ||
| 20CC04GV7D7B | Quote Required | $139.31/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 24.0 VDC | Stainless Steel 303 | All Ports in Body | CURus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 1/16 inch | 10 W | 0.1 Cv | 185 °F | 7R003 | 150 °F | 750 psig | IP65 | n/a | DIN 43650A / ISO 4400 | FKM | Normally Closed | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 1/16 | 0 | 750 | ||
| 20CC04LV7C7B | Quote Required | $153.57/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 24.0 VDC | Stainless Steel 303 | All Ports in Body | CULus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 3/32 inch | 10 W | 0.18 Cv | 185 °F | 7R003 | 150 °F | 520 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 520 | ||
| 20CC04LV7C7F | Quote Required | $149.42/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 110/50 VAC | Stainless Steel 303 | All Ports in Body | CULus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 3/32 inch | 10 W | 0.18 Cv | 185 °F | 7R003 | 150 °F | 550 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 550 | ||
| 20CC04PV7C7F | Quote Required | $149.76/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 120/60 VAC | Stainless Steel 303 | Normally Closed (NC) | CULus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 1/8 inch | 10 W | 0.29 Cv | 185 °F | 7R003 | 150 °F | 375 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 1/8 | 0 | 375 | ||
| 20CC04QV7B7A | Quote Required | $148.47/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 12.0 VDC | Stainless Steel 303 | All Ports in Body | CURus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 5/32 inch | 10 W | 0.43 Cv | 185 °F | 7R003 | 150 °F | 85 psig | IP69 | n/a | Leads-only (Incl. Ground Lead) | FKM | Normally Closed | 12 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 5/32 | 0 | 85 | ||
| 20CC04TV7C7F | Quote Required | $150.83/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 110/50 VAC | Stainless Steel 303 | Normally Closed (NC) | CULus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 7/32 inch | 10 W | 0.79 Cv | 185 °F | 7R003 | 150 °F | 110 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 1/4 NPT | 7/32 | 0 | 110 | ||
| 20CC06TV7 | Quote Required | 4 In Stock | $133.97/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | Pressure Vessel Only (AC or DC Voltage) | Stainless Steel 303 | All Ports in Body | - | 2-Way | NPT 3/8 inch | IOM7220 | 7/32 inch | 10 W | 0.79 Cv | 185 °F | 7R003 | 150 °F | 110.0 psig (AC) | Requires G7 Series Coil Kit | n/a | Requires G7 Series Coil Kit | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | 303 Stainless Steel | 3/8 NPT | 7/32 | 0 | 110 (AC) / 40 (DC) | |
| 20CC06TV7C7F | Quote Required | $175.87/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 120/60 VAC | Stainless Steel 303 | Normally Closed (NC) | CULus Safety Shutoff | 2-Way | NPT 3/8 inch | IOM7220 | 7/32 inch | 10 W | 0.79 Cv | 185 °F | 7R003 | 150 °F | 110 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | 303 Stainless Steel | 3/8 NPT | 7/32 | 0 | 110 | ||
| 20CF04LV7 | Quote Required | 1 Limited Stock | $142.10/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | Pressure Vessel Only (AC or DC Voltage) | Stainless Steel 303 | Normally Open (NO) | - | 2-Way | NPT 1/4 inch | IOM7220 | 3/32 inch | 10 W | 0.17 Cv | 185 °F | 7R002 | 150 °F | 275 psig | Requires G7 Series Coil Kit | n/a | Requires G7 Series Coil Kit | FKM | Normally Open | Pressure Vessel Only (AC or DC Voltage) | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 275 | |
| 20CF04LV7C7A | Quote Required | $187.99/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 12.0 VDC | Stainless Steel 303 | Pressure In Body - Out Sleeve | CULus General Purpose | 2-Way | NPT 1/4 inch | IOM7220 | 3/32 inch | 10 W | 0.17 Cv | 185 °F | 7R002 | 150 °F | 275 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Open | 12 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 275 | ||
| 20CF04LV7C7B | Quote Required | $187.99/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 24.0 VDC | Stainless Steel 303 | Pressure In Body - Out Sleeve | CULus General Purpose | 2-Way | NPT 1/4 inch | IOM7220 | 3/32 inch | 10 W | 0.17 Cv | 185 °F | 7R002 | 150 °F | 275 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Open | 24 VDC | 2-Way | 303 Stainless Steel | 1/4 NPT | 3/32 | 0 | 275 | ||
| 20LC04QN7 | Quote Required | $90.61/each | EA | Fluid Control Division | Direct Acting | 0 psi | NBR | Pressure Vessel Only (AC or DC Voltage) | Lead-Free Brass | All Ports in Body | - | 2-Way | NPT 1/4 inch | IOM7220 | 5/32 inch | 10 W | 0.43 Cv | 185 °F | 7R004 | 150 °F | 230 psig (AC) | Requires G7 Series Coil Kit | n/a | Requires G7 Series Coil Kit | NBR | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 230 (AC) / 85 (DC) | ||
| 20LC04QV7 | Quote Required | $94.83/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | Pressure Vessel Only (AC or DC Voltage) | Lead-Free Brass | Normally Closed (NC) | - | 2-Way | NPT 1/4 inch | IOM7220 | 5/32 inch | 10 W | 0.43 Cv | 185 °F | 7R003 | 150 °F | 230 psig (AC) | Requires G7 Series Coil Kit | n/a | Requires G7 Series Coil Kit | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 230 (AC) / 85 (DC) | ||
| 20LC04QV7B7B | 10 In Stock | Quote Required | $142.97/each | EA | Fluid Control Division | Direct Acting | 0 | FKM | 24.0 | Lead-Free Brass | Normally Closed (NC) | CURus Safety Shutoff | 2-Way | NPT 1/4 | IOM7220 | 5/32 | 10 | 0.43 | 185 | 7R003 | 150 | 85 | IP69 | n/a | Leads-only (Incl. Ground Lead) | FKM | Normally Closed | 24 VDC | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 85 | |
| 20LC04QV7C7F | Quote Required | $138.93/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | 120/60 VAC | Lead-Free Brass | All Ports in Body | CULus Safety Shutoff | 2-Way | NPT 1/4 inch | IOM7220 | 5/32 inch | 10 W | 0.43 Cv | 185 °F | 7R003 | 150 °F | 230 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | FKM | Normally Closed | 120/60, 110/50 | 2-Way | Lead-Free Brass | 1/4 NPT | 5/32 | 0 | 230 | ||
| 20LC04TV7 | Quote Required | $94.82/each | EA | Fluid Control Division | Direct Acting | 0 psi | FKM | Pressure Vessel Only (AC or DC Voltage) | Lead-Free Brass | All Ports in Body | - | 2-Way | NPT 1/4 inch | IOM7220 | 7/32 inch | 10 W | 0.79 Cv | 185 °F | 7R003 | 150 °F | 110.0 psig (AC) | Requires G7 Series Coil Kit | n/a | Requires G7 Series Coil Kit | FKM | Normally Closed | Pressure Vessel Only (AC or DC Voltage) | 2-Way | Lead-Free Brass | 1/4 NPT | 7/32 | 0 | 110 (AC) / 40 (DC) | ||
| 20LC06TN7C7F | Quote Required | $156.20/each | EA | Fluid Control Division | Direct Acting | 0 psi | NBR | 110/50 VAC | Lead-Free Brass | All Ports in Body | CULus Safety Shutoff | 2-Way | NPT 3/8 inch | IOM7220 | 7/32 inch | 10 W | 0.79 Cv | 185 °F | 7R004 | 150 °F | 110 psig | IP69 | n/a | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NBR | Normally Closed | 120/60, 110/50 | 2-Way | Lead-Free Brass | 3/8 NPT | 7/32 | 0 | 110 |
