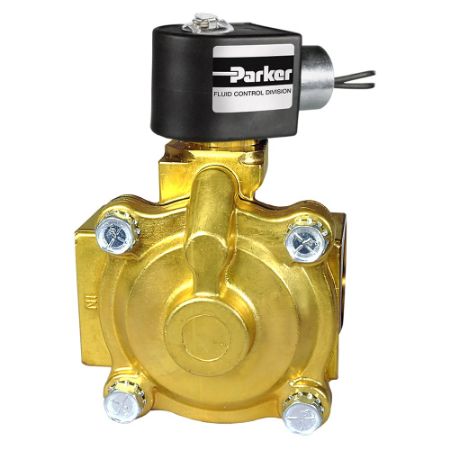

24 Series - General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
High Flow General Purpose Solenoid Valves
Read More...| Action | Part No. | Availability | Partner Available | Price | Division | Maximum Ambient Temperature | Media | Insulation Class | Coil Type | Installation | Preventive Maintenance Kit | Function | Maximum Fluid Temperature | Port Type | Power Consumption | Orifice Size | Specifications Met | Seal Material | Maximum Pressure Differential | Actuation Type | Input Voltage | Main Flow Coefficient | Port Size | Ingress Protection Rating | Minimum Pressure Differential | Body Material | Valve Configuration | Port Type | Body Material | Seal Material | Coil Type | Media | Function | Input Voltage | Actuation Type | Insulation Class | Power Consumption | Valve Configuration | Ingress Protection Rating | Maximum Fluid Temperature | Maximum Ambient Temperature | Minimum Pressure Differential | Port Size | Orifice Size | Installation | Specifications Met | Main Flow Coefficient | Preventive Maintenance Kit | Maximum Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12F24C2148A3F4C80 | Quote Required | $386.38/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 12F24C2148A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 3/4 inch | CE - Low Voltage, EMC | NBR | 125.0 psi | Internally Piloted | 24.0 VDC | 6.5 Cv | 3/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148A3FR | 125.0 | ||
| 12F24C2148A3FPH80 | Quote Required | $387.19/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 12F24C2148A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 3/4 inch | CE - Low Voltage, EMC | NBR | 125.0 psi | Internally Piloted | 120/60, 110/50 VAC | 6.5 Cv | 3/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148A3FR | 125.0 | ||
| 12F24C2148AAF | Quote Required | $315.61/each | Fluid Control Division | 130.0 °F | General Purpose | N/A | Requires Coil from Chart 1 | IOM 7235 | 12F24C2148AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 3/4 inch | UL, CSA Listed General Purpose Valve | NBR | 250 / 150 (Water) psi | Internally Piloted | Pressure Vessel Only | 6.5 Cv | 3/4 inch | N/A | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | Requires Coil from Chart 1 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | 2 Way | N/A | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148AAFR | 250 / 150 (Water) | ||
| 12F24C2148AAF4C05 | Quote Required | $382.89/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 12F24C2148AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 3/4 inch | CE - Low Voltage, EMC | NBR | 250 / 150 (Water) psi | Internally Piloted | 120/60, 110/50 VAC | 6.5 Cv | 3/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148AAFR | 250 / 150 (Water) | ||
| 12F24C2148AAF4C15 | Quote Required | $382.98/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 12F24C2148AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 3/4 inch | UL, CSA Listed General Purpose Valve | NBR | 250 / 150 (Water) psi | Internally Piloted | 120/60, 110/50 VAC | 6.5 Cv | 3/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148AAFR | 250 / 150 (Water) | ||
| 12F24C2248AAFPH05 | Quote Required | $409.50/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | DIN 43650A / ISO 4400 | IOM 7235 | 12F24C2248AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 3/4 inch | CE - Low Voltage, EMC | FKM | 250 / 150 (Water) psi | Internally Piloted | 120/60, 110/50 VAC | 6.5 Cv | 3/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | FKM | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2248AAFR | 250 / 150 (Water) | ||
| 12F24C2248AAFPH15 | Quote Required | $409.10/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | DIN 43650A / ISO 4400 | IOM 7235 | 12F24C2248AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 3/4 inch | CE - Low Voltage, EMC | FKM | 250 / 150 (Water) psi | Internally Piloted | 240/60, 220/50 VAC | 6.5 Cv | 3/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | FKM | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 240/60, 220/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2248AAFR | 250 / 150 (Water) | ||
| 16F24C2164A3F | Quote Required | 1 Limited Stock | $388.28/each | Fluid Control Division | 77.0 °F | General Purpose | N/A | Requires Coil from Chart 6 | IOM 7235 | 16F24C2164A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 1 inch | UL, CSA Listed General Purpose Valve | NBR | 125.0 psi | Internally Piloted | Pressure Vessel Only | 13.0 Cv | 1 inch | N/A | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | Requires Coil from Chart 6 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 11.5 | 2 Way | N/A | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164A3FR | 125.0 | |
| 16F24C2164A3F4C80 | Quote Required | $469.88/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 16F24C2164A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 1 inch | CE - Low Voltage, EMC | NBR | 125.0 psi | Internally Piloted | 24.0 VDC | 13.0 Cv | 1 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164A3FR | 125.0 | ||
| 16F24C2164A3FPH80 | Quote Required | $457.94/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | DIN 43650A / ISO 4400 | IOM 7235 | 16F24C2164A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 1 inch | CE - Low Voltage, EMC | NBR | 125.0 psi | Internally Piloted | 24.0 VDC | 13.0 Cv | 1 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164A3FR | 125.0 | ||
| 16F24C2164AAF | Quote Required | 3 In Stock | $388.21/each | Fluid Control Division | 130.0 °F | General Purpose | N/A | Requires Coil from Chart 1 | IOM 7235 | 16F24C2164AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 1 inch | UL, CSA Listed General Purpose Valve | NBR | 150 (100 Light Oil) psi | Internally Piloted | Pressure Vessel Only | 13.0 Cv | 1 inch | N/A | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | Requires Coil from Chart 1 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | 2 Way | N/A | 180.0 | 130.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164AAFR | 150 (100 Light Oil) | |
| 16F24C2164AAF4C05 | Quote Required | 1 Limited Stock | $452.91/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 16F24C2164AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 1 inch | UL, CSA Listed General Purpose Valve | NBR | 150 (100 Light Oil) psi | Internally Piloted | 120/60, 110/50 VAC | 13.0 Cv | 1 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164AAFR | 150 (100 Light Oil) | |
| 16F24O2164A3F4C75 | Quote Required | $675.16/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 16F24O2164A3FR | Normally Open | 150.0 °F | NPT | 11.5 W | 1 inch | CE - Low Voltage, EMC | NBR | 125.0 psi | Internally Piloted | 12.0 VDC | 13.0 Cv | 1 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Open | 12.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24O2164A3FR | 125.0 | ||
| 16F24O2164A3F4C80 | Quote Required | $675.24/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 16F24O2164A3FR | Normally Open | 150.0 °F | NPT | 11.5 W | 1 inch | UL, CSA Listed General Purpose Valve | NBR | 125.0 psi | Internally Piloted | 24.0 VDC | 13.0 Cv | 1 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Open | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24O2164A3FR | 125.0 | ||
| 16F24O2164ACFPH05 | Quote Required | $677.03/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | DIN 43650A / ISO 4400 | IOM 7235 | 16F24O2164ACFR | Normally Open | 180.0 °F | NPT | 11.0 W | 1 inch | UL, CSA Recognized General Purpose Valve | NBR | 125.0 psi | Internally Piloted | 120/60, 110/50 VAC | 13.0 Cv | 1 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Open | 120/60, 110/50 | Internally Piloted | Class F | 11.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24O2164ACFR | 125.0 | ||
| 20F24C2172A3FPH80 | Quote Required | $529.42/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | DIN 43650A / ISO 4400 | IOM 7235 | 20F24C2172A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 1-1/8 inch | UL, CSA Recognized General Purpose Valve | NBR | 125.0 psi | Internally Piloted | 24.0 VDC | 15.0 Cv | 1-1/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1-1/4 | 1-1/8 | IOM 7235 | CE - Low Voltage, EMC | 15.0 | 20F24C2172A3FR | 125.0 | ||
| 20F24C2172AAF4C05 | Quote Required | $524.34/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | IOM 7235 | 20F24C2172AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 1-1/8 inch | CE - Low Voltage, EMC | NBR | 150 (100 Light Oil) psi | Internally Piloted | 120/60, 110/50 VAC | 15.0 Cv | 1-1/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1-1/4 | 1-1/8 | IOM 7235 | CE - Low Voltage, EMC | 15.0 | 20F24C2172AAFR | 150 (100 Light Oil) | ||
| 20F24C2172AAFPH05 | Quote Required | $527.28/each | Fluid Control Division | 130.0 °F | General Purpose | Class F | DIN 43650A / ISO 4400 | IOM 7235 | 20F24C2172AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 1-1/8 inch | CE - Low Voltage, EMC | NBR | 150 (100 Light Oil) psi | Internally Piloted | 120/60, 110/50 VAC | 15.0 Cv | 1-1/4 inch | NEMA 4,4X | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1-1/4 | 1-1/8 | IOM 7235 | CE - Low Voltage, EMC | 15.0 | 20F24C2172AAFR | 150 (100 Light Oil) | ||
| 24F24C2180A3FSB80 | Quote Required | $775.02/each | Fluid Control Division | 77.0 °F | General Purpose | Class F | Splice Box w/ 6" Leads | IOM 7235 | 24F24C2180A3FR | Normally Closed | 150.0 °F | NPT | 11.5 W | 1-1/4 inch | CE - Low Voltage, EMC | NBR | 125.0 psi | Internally Piloted | 24.0 VDC | 22.5 Cv | 1-1/2 inch | NEMA 1 | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | Splice Box w/ 6" Leads | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 1 | 150.0 | 77.0 | 5.0 | 1-1/2 | 1-1/4 | IOM 7235 | CE - Low Voltage, EMC | 22.5 | 24F24C2180A3FR | 125.0 | ||
| 24F24C2180AAF | Quote Required | $687.34/each | Fluid Control Division | 130.0 °F | General Purpose | N/A | Requires Coil from Chart 1 | IOM 7235 | 24F24C2180AAFR | Normally Closed | 180.0 °F | NPT | 6.0 W | 1-1/4 inch | N/A | NBR | 150 (100 Light Oil) psi | Internally Piloted | Pressure Vessel Only | 22.5 Cv | 1-1/2 inch | N/A | 5.0 psi | Brass | 2 Way | NPT | BRASS | NBR | Requires Coil from Chart 1 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | 2 Way | N/A | 180.0 | 130.0 | 5.0 | 1-1/2 | 1-1/4 | IOM 7235 | N/A | 22.5 | 24F24C2180AAFR | 150 (100 Light Oil) |
