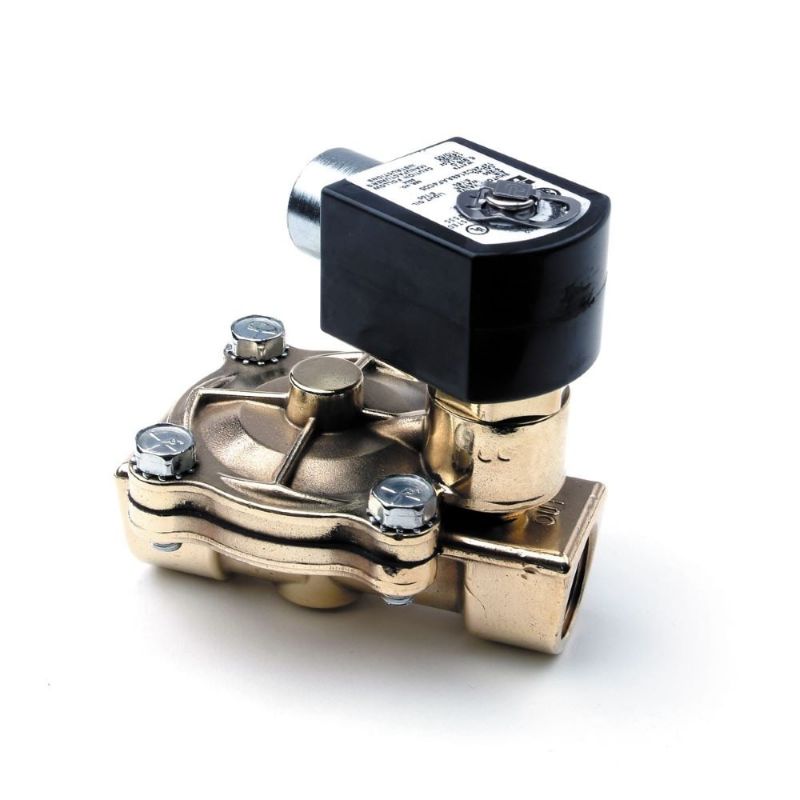

Parker 12F24C2148AAF4C05 - 24 Series - General Purpose Solenoid Valves

AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. 12F24C2148AAF4C05
$382.89/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort TypeNPT
Orifice Size3/4 inchMaximum Fluid Temperature180.0 °F
Specifications MetCE - Low Voltage, EMCPower Consumption6.0 W
Seal MaterialNBRActuation TypeInternally Piloted
Maximum Pressure Differential250 / 150 (Water) psiInput Voltage120/60, 110/50 VAC
Minimum Pressure Differential5.0 psiPort Size3/4 inch
Body MaterialBrassMain Flow Coefficient6.5 Cv
Valve Configuration2 WayDivisionFluid Control Division
Insulation ClassClass FMediaGeneral Purpose
Maximum Ambient Temperature130.0 °FIngress Protection RatingNEMA 4,4X
Coil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)InstallationIOM 7235
Preventive Maintenance Kit12F24C2148AAFRFunctionNormally Closed
Port TypeNPTBody MaterialBRASS
Seal MaterialNBRCoil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
MediaGeneral PurposeFunctionNormally Closed
Input Voltage120/60, 110/50Actuation TypeInternally Piloted
Insulation ClassClass FPower Consumption6.0
Valve Configuration2 WayIngress Protection RatingNEMA 4,4X
Maximum Fluid Temperature180.0Maximum Ambient Temperature130.0
Minimum Pressure Differential5.0Port Size3/4
Orifice Size3/4InstallationIOM 7235
Specifications MetCE - Low Voltage, EMCMain Flow Coefficient6.5
Preventive Maintenance Kit12F24C2148AAFRMaximum Pressure Differential250 / 150 (Water)
