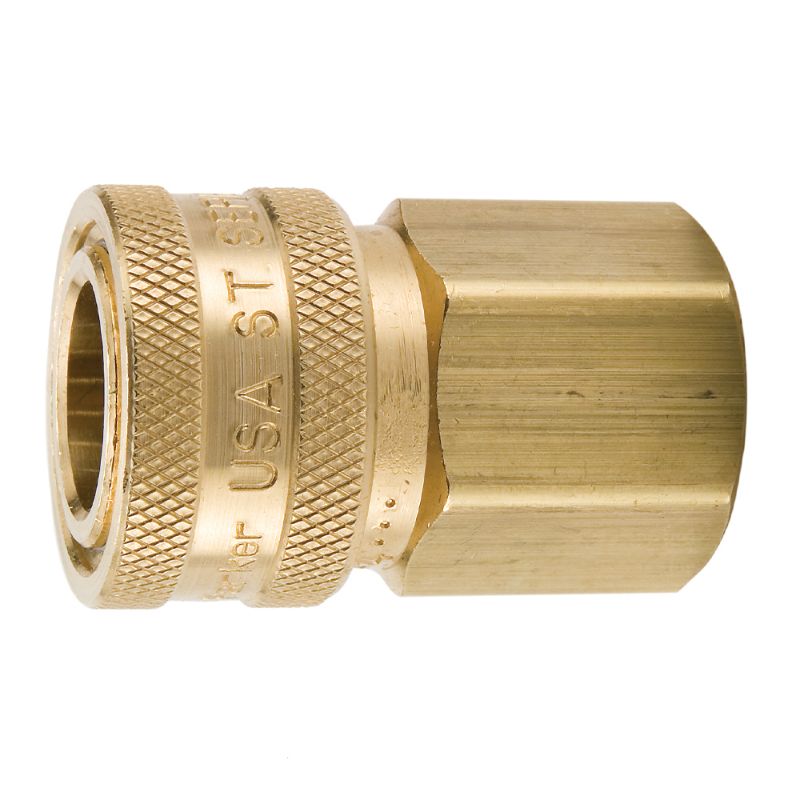

Parker BST-12 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. BST-12

$280.84/each

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.6232014388489209 lb	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Hex Size	2.50 inch
Body Material	Brass	Minimum Operating Temperature	-40 °F
Product Type	Push to Connect	Application	Hydraulics
Flow Rate	100 Gal/min	Seal Material	Nitrile
Valve Type	Unvalved	Connection Thread Size (inch)	1 1/2 - 11 1/2
Coupling Half	Female Coupler	Maximum Operating Pressure	1400
Connection Type	Female NPTF	Body Material	BRASS
Body Size (inch)	1 1/2
