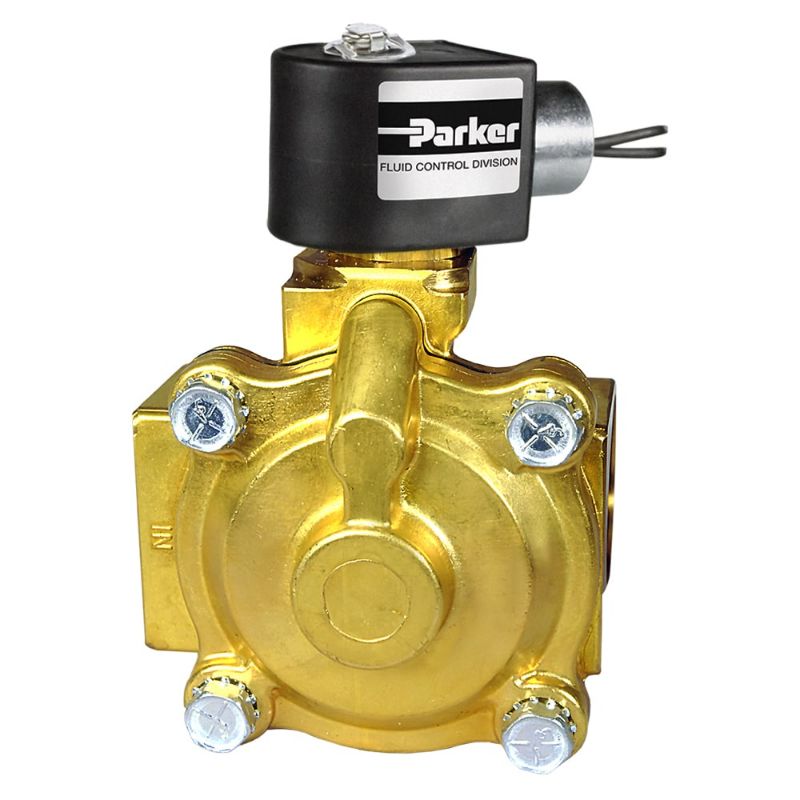

Parker 16F24C2164AAF4C05 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 16F24C2164AAF4C05

$452.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Brass
Division	Fluid Control Division	Media	General Purpose
Function	Normally Closed	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	1 inch	Port Type	NPT
Installation	IOM 7235	Orifice Size	1 inch
Input Voltage	120/60, 110/50 VAC	Seal Material	NBR
Actuation Type	Internally Piloted	Insulation Class	Class F
Power Consumption	6.0 W	Specifications Met	UL, CSA Listed General Purpose Valve
Valve Configuration	2 Way	Main Flow Coefficient	13.0 Cv
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	180.0 °F
Preventive Maintenance Kit	16F24C2164AAFR	Maximum Ambient Temperature	130.0 °F
Maximum Pressure Differential	150 (100 Light Oil) psi	Minimum Pressure Differential	5.0 psi
Body Material	BRASS	Seal Material	NBR
Media	General Purpose	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	1
Port Type	NPT	Installation	IOM 7235
Orifice Size	1	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Insulation Class	Class F
Power Consumption	6.0	Specifications Met	CE - Low Voltage, EMC
Valve Configuration	2 Way	Main Flow Coefficient	13.0
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	180.0
Preventive Maintenance Kit	16F24C2164AAFR	Maximum Ambient Temperature	130.0
Maximum Pressure Differential	150 (100 Light Oil)	Minimum Pressure Differential	5.0
