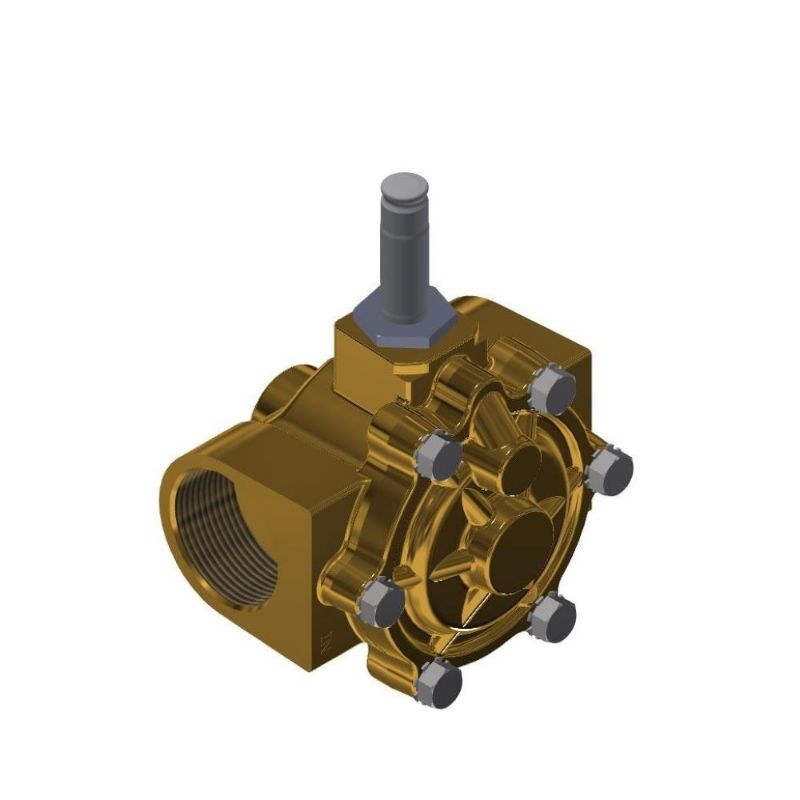

Parker 12F24C2148AAF - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12F24C2148AAF

$298.42

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	3/4 inch
Division	Fluid Control Division	Seal Material	NBR
Media	General Purpose	Function	Normally Closed
Coil Type	Requires Coil from Chart 1	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Power Consumption	6.0 W
Maximum Fluid Temperature	180.0 °F	Minimum Pressure Differential	5.0 psi
Insulation Class	N/A	Valve Configuration	2 Way
Ingress Protection Rating	N/A	Maximum Ambient Temperature	130.0 °F
Orifice Size	3/4 inch	Installation	IOM 7235
Specifications Met	UL, CSA Listed General Purpose Valve	Main Flow Coefficient	6.5 Cv
Preventive Maintenance Kit	12F24C2148AAFR	Maximum Pressure Differential	250 / 150 (Water) psi
Port Type	NPT	Body Material	BRASS
Seal Material	NBR	Coil Type	Requires Coil from Chart 1
Media	General Purpose	Function	Normally Closed
Input Voltage	Pressure Vessel Only	Actuation Type	Internally Piloted
Insulation Class	N/A	Power Consumption	6.0
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Maximum Fluid Temperature	180.0	Maximum Ambient Temperature	130.0
Minimum Pressure Differential	5.0	Port Size	3/4
Orifice Size	3/4	Installation	IOM 7235
Specifications Met	CE - Low Voltage, EMC	Main Flow Coefficient	6.5
Preventive Maintenance Kit	12F24C2148AAFR	Maximum Pressure Differential	250 / 150 (Water)
