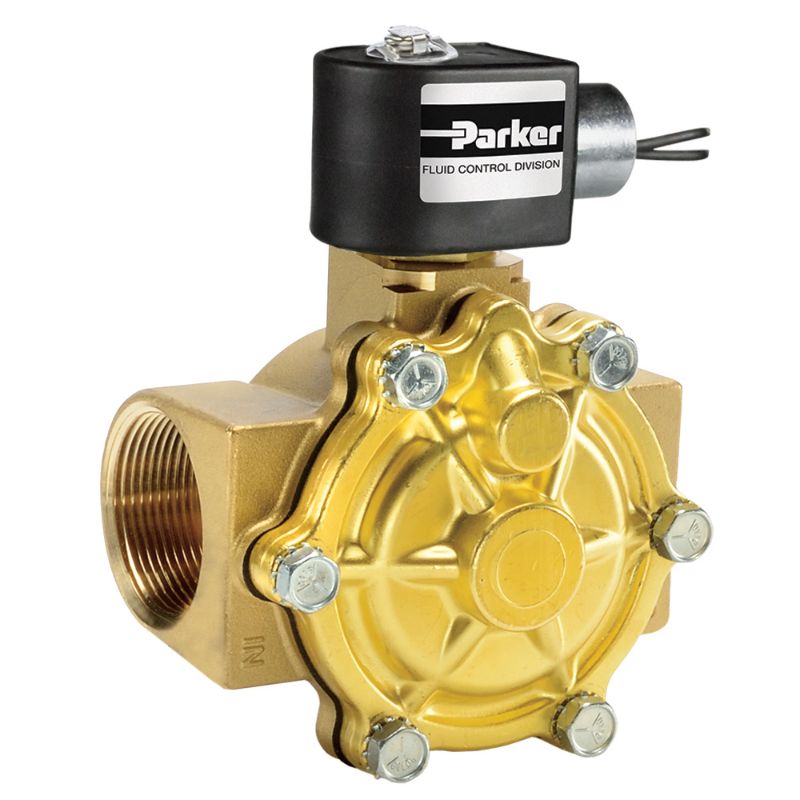

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 24F24C2180A3FSB80 - 24 Series - General Purpose Solenoid Valves

High Flow General Purpose Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24F24C2180A3FSB80

$755.79

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1-1/2 inch
Division	Fluid Control Division	Input Voltage	24.0 VDC
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Coil Type	Splice Box w/ 6" Leads
Actuation Type	Internally Piloted	Power Consumption	11.5 W
Maximum Fluid Temperature	150.0 °F	Minimum Pressure Differential	5.0 psi
Insulation Class	Class F	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 1	Maximum Ambient Temperature	77.0 °F
Installation	IOM 7235	Specifications Met	CE - Low Voltage, EMC
Maximum Pressure Differential	125.0 psi	Orifice Size	1-1/4 inch
Main Flow Coefficient	22.5 Cv	Preventive Maintenance Kit	24F24C2180A3FR
Port Type	NPT	Body Material	BRASS
Seal Material	NBR	Coil Type	Splice Box w/ 6" Leads
Media	General Purpose	Function	Normally Closed
Input Voltage	24.0	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	11.5
Valve Configuration	2 Way	Ingress Protection Rating	NEMA 1
Maximum Fluid Temperature	150.0	Maximum Ambient Temperature	77.0
Minimum Pressure Differential	5.0	Installation	IOM 7235
Specifications Met	CE - Low Voltage, EMC	Maximum Pressure Differential	125.0
Port Size	1-1/2	Orifice Size	1-1/4
Main Flow Coefficient	22.5	Preventive Maintenance Kit	24F24C2180A3FR

Product resources

Literature and Reference Materials

Tube Seal (PDF)
