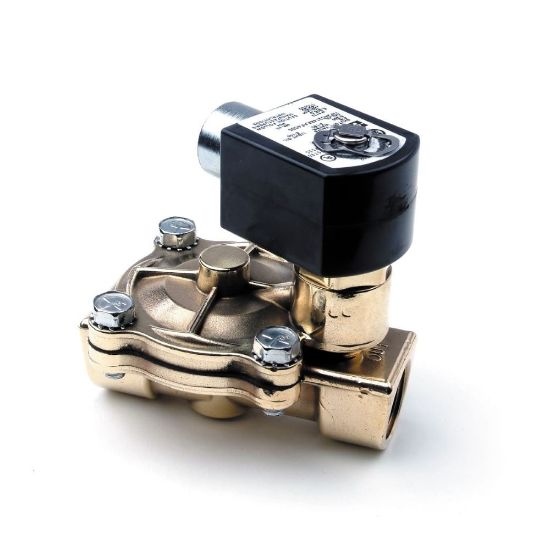

Parker 12F24C2148A3F4C80 - 24 Series - General Purpose Solenoid Valves

AFP Availability:
Partner Available:Quote Required
Brand Parker
Part No. 12F24C2148A3F4C80
$386.38/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionFluid Control Division
Maximum Ambient Temperature77.0 °FMediaGeneral Purpose
Insulation ClassClass FCoil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
InstallationIOM 7235Preventive Maintenance Kit12F24C2148A3FR
FunctionNormally ClosedMaximum Fluid Temperature150.0 °F
Port TypeNPTPower Consumption11.5 W
Orifice Size3/4 inchSpecifications MetCE - Low Voltage, EMC
Seal MaterialNBRMaximum Pressure Differential125.0 psi
Actuation TypeInternally PilotedInput Voltage24.0 VDC
Main Flow Coefficient6.5 CvPort Size3/4 inch
Ingress Protection RatingNEMA 4,4XMinimum Pressure Differential5.0 psi
Body MaterialBrassValve Configuration2 Way
Port TypeNPTBody MaterialBRASS
Seal MaterialNBRCoil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
MediaGeneral PurposeFunctionNormally Closed
Input Voltage24.0Actuation TypeInternally Piloted
Insulation ClassClass FPower Consumption11.5
Valve Configuration2 WayIngress Protection RatingNEMA 4,4X
Maximum Fluid Temperature150.0Maximum Ambient Temperature77.0
Minimum Pressure Differential5.0Port Size3/4
Orifice Size3/4InstallationIOM 7235
Specifications MetCE - Low Voltage, EMCMain Flow Coefficient6.5
Preventive Maintenance Kit12F24C2148A3FRMaximum Pressure Differential125.0
