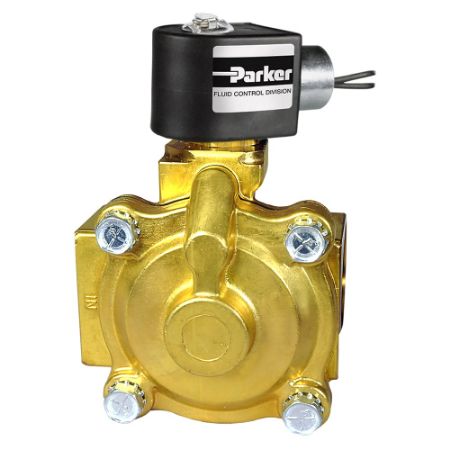

24 Series - General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
High Flow General Purpose Solenoid Valves
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Body Material | Port Size | Division | Input Voltage | Seal Material | Media | Function | Coil Type | Actuation Type | Power Consumption | Maximum Fluid Temperature | Minimum Pressure Differential | Insulation Class | Valve Configuration | Ingress Protection Rating | Maximum Ambient Temperature | Orifice Size | Installation | Specifications Met | Main Flow Coefficient | Preventive Maintenance Kit | Maximum Pressure Differential | Port Type | Body Material | Seal Material | Coil Type | Media | Function | Input Voltage | Actuation Type | Insulation Class | Power Consumption | Valve Configuration | Ingress Protection Rating | Maximum Fluid Temperature | Maximum Ambient Temperature | Minimum Pressure Differential | Port Size | Orifice Size | Installation | Specifications Met | Main Flow Coefficient | Preventive Maintenance Kit | Maximum Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12F24C2148A3F4C80 | Quote Required | $386.38/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | 24.0 VDC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 3/4 inch | IOM 7235 | CE - Low Voltage, EMC | 6.5 Cv | 12F24C2148A3FR | 125.0 psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148A3FR | 125.0 | ||
| 12F24C2148A3FPH80 | Quote Required | $387.19/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 3/4 inch | IOM 7235 | CE - Low Voltage, EMC | 6.5 Cv | 12F24C2148A3FR | 125.0 psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148A3FR | 125.0 | ||
| 12F24C2148AAF | Quote Required | $315.61/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | Pressure Vessel Only | NBR | General Purpose | Normally Closed | Requires Coil from Chart 1 | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | N/A | 2 Way | N/A | 130.0 °F | 3/4 inch | IOM 7235 | UL, CSA Listed General Purpose Valve | 6.5 Cv | 12F24C2148AAFR | 250 / 150 (Water) psi | NPT | BRASS | NBR | Requires Coil from Chart 1 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | 2 Way | N/A | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148AAFR | 250 / 150 (Water) | ||
| 12F24C2148AAF4C05 | Quote Required | $382.89/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 3/4 inch | IOM 7235 | CE - Low Voltage, EMC | 6.5 Cv | 12F24C2148AAFR | 250 / 150 (Water) psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148AAFR | 250 / 150 (Water) | ||
| 12F24C2148AAF4C15 | Quote Required | $382.98/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 3/4 inch | IOM 7235 | UL, CSA Listed General Purpose Valve | 6.5 Cv | 12F24C2148AAFR | 250 / 150 (Water) psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2148AAFR | 250 / 150 (Water) | ||
| 12F24C2248AAFPH05 | Quote Required | $409.50/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | 120/60, 110/50 VAC | FKM | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 3/4 inch | IOM 7235 | CE - Low Voltage, EMC | 6.5 Cv | 12F24C2248AAFR | 250 / 150 (Water) psi | NPT | BRASS | FKM | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2248AAFR | 250 / 150 (Water) | ||
| 12F24C2248AAFPH15 | Quote Required | $409.10/each | EA | NPT | Brass | 3/4 inch | Fluid Control Division | 240/60, 220/50 VAC | FKM | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 3/4 inch | IOM 7235 | CE - Low Voltage, EMC | 6.5 Cv | 12F24C2248AAFR | 250 / 150 (Water) psi | NPT | BRASS | FKM | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 240/60, 220/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 3/4 | 3/4 | IOM 7235 | CE - Low Voltage, EMC | 6.5 | 12F24C2248AAFR | 250 / 150 (Water) | ||
| 16F24C2164A3F | Quote Required | 1 Limited Stock | $388.28/each | EA | NPT | Brass | 1 inch | Fluid Control Division | Pressure Vessel Only | NBR | General Purpose | Normally Closed | Requires Coil from Chart 6 | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | N/A | 2 Way | N/A | 77.0 °F | 1 inch | IOM 7235 | UL, CSA Listed General Purpose Valve | 13.0 Cv | 16F24C2164A3FR | 125.0 psi | NPT | BRASS | NBR | Requires Coil from Chart 6 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 11.5 | 2 Way | N/A | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164A3FR | 125.0 | |
| 16F24C2164A3F4C80 | Quote Required | $469.88/each | EA | NPT | Brass | 1 inch | Fluid Control Division | 24.0 VDC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 1 inch | IOM 7235 | CE - Low Voltage, EMC | 13.0 Cv | 16F24C2164A3FR | 125.0 psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164A3FR | 125.0 | ||
| 16F24C2164A3FPH80 | Quote Required | $457.94/each | EA | NPT | Brass | 1 inch | Fluid Control Division | 24.0 VDC | NBR | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 1 inch | IOM 7235 | CE - Low Voltage, EMC | 13.0 Cv | 16F24C2164A3FR | 125.0 psi | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164A3FR | 125.0 | ||
| 16F24C2164AAF | Quote Required | 1 Limited Stock | $388.21/each | EA | NPT | Brass | 1 inch | Fluid Control Division | Pressure Vessel Only | NBR | General Purpose | Normally Closed | Requires Coil from Chart 1 | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | N/A | 2 Way | N/A | 130.0 °F | 1 inch | IOM 7235 | UL, CSA Listed General Purpose Valve | 13.0 Cv | 16F24C2164AAFR | 150 (100 Light Oil) psi | NPT | BRASS | NBR | Requires Coil from Chart 1 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | 2 Way | N/A | 180.0 | 130.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164AAFR | 150 (100 Light Oil) | |
| 16F24C2164AAF4C05 | Quote Required | 1 Limited Stock | $452.91/each | EA | NPT | Brass | 1 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 1 inch | IOM 7235 | UL, CSA Listed General Purpose Valve | 13.0 Cv | 16F24C2164AAFR | 150 (100 Light Oil) psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24C2164AAFR | 150 (100 Light Oil) | |
| 16F24O2164A3F4C75 | Quote Required | $675.16/each | EA | NPT | Brass | 1 inch | Fluid Control Division | 12.0 VDC | NBR | General Purpose | Normally Open | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 1 inch | IOM 7235 | CE - Low Voltage, EMC | 13.0 Cv | 16F24O2164A3FR | 125.0 psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Open | 12.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24O2164A3FR | 125.0 | ||
| 16F24O2164A3F4C80 | Quote Required | $675.24/each | EA | NPT | Brass | 1 inch | Fluid Control Division | 24.0 VDC | NBR | General Purpose | Normally Open | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 1 inch | IOM 7235 | UL, CSA Listed General Purpose Valve | 13.0 Cv | 16F24O2164A3FR | 125.0 psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Open | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24O2164A3FR | 125.0 | ||
| 16F24O2164ACFPH05 | Quote Required | $677.03/each | EA | NPT | Brass | 1 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Open | DIN 43650A / ISO 4400 | Internally Piloted | 11.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 1 inch | IOM 7235 | UL, CSA Recognized General Purpose Valve | 13.0 Cv | 16F24O2164ACFR | 125.0 psi | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Open | 120/60, 110/50 | Internally Piloted | Class F | 11.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1 | 1 | IOM 7235 | CE - Low Voltage, EMC | 13.0 | 16F24O2164ACFR | 125.0 | ||
| 20F24C2172A3FPH80 | Quote Required | $529.42/each | EA | NPT | Brass | 1-1/4 inch | Fluid Control Division | 24.0 VDC | NBR | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 77.0 °F | 1-1/8 inch | IOM 7235 | UL, CSA Recognized General Purpose Valve | 15.0 Cv | 20F24C2172A3FR | 125.0 psi | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 4,4X | 150.0 | 77.0 | 5.0 | 1-1/4 | 1-1/8 | IOM 7235 | CE - Low Voltage, EMC | 15.0 | 20F24C2172A3FR | 125.0 | ||
| 20F24C2172AAF4C05 | Quote Required | $524.34/each | EA | NPT | Brass | 1-1/4 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 1-1/8 inch | IOM 7235 | CE - Low Voltage, EMC | 15.0 Cv | 20F24C2172AAFR | 150 (100 Light Oil) psi | NPT | BRASS | NBR | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1-1/4 | 1-1/8 | IOM 7235 | CE - Low Voltage, EMC | 15.0 | 20F24C2172AAFR | 150 (100 Light Oil) | ||
| 20F24C2172AAFPH05 | Quote Required | $527.28/each | EA | NPT | Brass | 1-1/4 inch | Fluid Control Division | 120/60, 110/50 VAC | NBR | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | Class F | 2 Way | NEMA 4,4X | 130.0 °F | 1-1/8 inch | IOM 7235 | CE - Low Voltage, EMC | 15.0 Cv | 20F24C2172AAFR | 150 (100 Light Oil) psi | NPT | BRASS | NBR | DIN 43650A / ISO 4400 | General Purpose | Normally Closed | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | 2 Way | NEMA 4,4X | 180.0 | 130.0 | 5.0 | 1-1/4 | 1-1/8 | IOM 7235 | CE - Low Voltage, EMC | 15.0 | 20F24C2172AAFR | 150 (100 Light Oil) | ||
| 24F24C2180A3FSB80 | Quote Required | $775.02/each | EA | NPT | Brass | 1-1/2 inch | Fluid Control Division | 24.0 VDC | NBR | General Purpose | Normally Closed | Splice Box w/ 6" Leads | Internally Piloted | 11.5 W | 150.0 °F | 5.0 psi | Class F | 2 Way | NEMA 1 | 77.0 °F | 1-1/4 inch | IOM 7235 | CE - Low Voltage, EMC | 22.5 Cv | 24F24C2180A3FR | 125.0 psi | NPT | BRASS | NBR | Splice Box w/ 6" Leads | General Purpose | Normally Closed | 24.0 | Internally Piloted | Class F | 11.5 | 2 Way | NEMA 1 | 150.0 | 77.0 | 5.0 | 1-1/2 | 1-1/4 | IOM 7235 | CE - Low Voltage, EMC | 22.5 | 24F24C2180A3FR | 125.0 | ||
| 24F24C2180AAF | Quote Required | $687.34/each | EA | NPT | Brass | 1-1/2 inch | Fluid Control Division | Pressure Vessel Only | NBR | General Purpose | Normally Closed | Requires Coil from Chart 1 | Internally Piloted | 6.0 W | 180.0 °F | 5.0 psi | N/A | 2 Way | N/A | 130.0 °F | 1-1/4 inch | IOM 7235 | N/A | 22.5 Cv | 24F24C2180AAFR | 150 (100 Light Oil) psi | NPT | BRASS | NBR | Requires Coil from Chart 1 | General Purpose | Normally Closed | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | 2 Way | N/A | 180.0 | 130.0 | 5.0 | 1-1/2 | 1-1/4 | IOM 7235 | N/A | 22.5 | 24F24C2180AAFR | 150 (100 Light Oil) |
