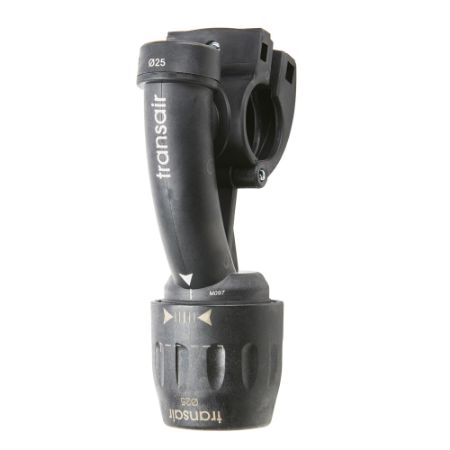

Transair® Drop Brackets for Aluminum Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair Drops brackets make installing drops lines in an existing compressed air or industrial/inert gas system quick and easy. To install a drop bracket, you only need a drill, Transair drill bit (dependent on the bracket being installed), and a Transair drilling jig to precisely drill the hole. Transair offers multiple styles of brackets to fit the space requirements of the existing system. For scenarios where the compressed air system cannot be shut down for modifications, Parker Transair offers the pressurized system (Hot Tap) bracket that can be installed under pressure.
When installing the drop brackets, Parker suggests drilling the hole at the top of the pipe to prevent moisture and debris from entering the drop line. Drilling the hole on the top can be avoided with the use of the quick assembly bracket. Due to the placement of the seal, the quick assembly bracket can be installed in the side of the pipe and still prevent moisture and debris from entering the drop line. The pressurized system bracket requires a hot tap drill (pn: EA98 06 00) to install the bracket into a pressurized compressed air line.
The “full bore” design of Transair drop brackets, paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. All drop brackets are 100% recyclable, silicone free, and made from materials with no propagation of flame. All drop brackets conform to the UL94HB standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.
For full installation instructions, download our installation manual, or watch our installation videos.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features / Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Full-bore design
• Optimum flow rate
• 100% recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Industrial/Inert Gasses (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2” to 4”: 232psi (15,9bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6”: 188psi (12,9 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature (1/2” to 4”):
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower
| Action | Part No. | Availability | Partner Available | Price | Product Style | Shape | Minimum Operating Temperature | Division | Connection 1 Size | Body Material | Connection 2 Type | Connection 1 Type | Silicone Free | Product Type | Application | Specifications Met | Vacuum Pressure Rating | Connection 2 Size | Configuration | Assembly | Weight | Maximum Operating Pressure | Brand | Industry | Technology | Quantity per Box | Maximum Operating Temperature | Division | Assembly Time | For Fluid Type | Body Material | Connection 1 Size | Connection 2 Size | Connection 2 Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6662 25 00 | Quote Required | 91 In Stock | $45.82/each | Quick Assembly Bracket | Swan Neck | -4 °F | Fluid System Connectors Division | 25 mm | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | In Plant Pneumatic | ASME B31.1 - 31.9 | 0.03 inch-Hg 99,9% (absolute pressure) | 25 mm | Pipe to Pipe | Drop | 0.124 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par | Parker | General Industrial | Pneumatics | 10 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 1" (25 mm) | 1" (25 mm) | Quick Assembly Bracket | |
| 6662 25 17 | Quote Required | 55 In Stock | $39.86/each | Quick Assembly Bracket | Swan Neck | -4 °F | Low Pressure Connectors Europe Division | 1 inch | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | Industrial Gas | ISO 9001 | 0.03 inch-Hg | 1/2 inch | Pipe to Pipe | Drop | 0.22 lb | 232 psi | Transair | General Industrial | Fluid & Gas Handling | 10 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Air Compressed Air, Inert Gas, Vacuum | Technical Polymer | 1" (25 mm) | 1/2" (16.5 mm) | Quick Assembly Bracket | |
| 6662 40 17 | Quote Required | 47 In Stock | $52.87/each | Quick Assembly Bracket | Swan Neck | -20 °C | Low Pressure Connectors Europe Division | 1-1/2 inch | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | Industrial Gas | EN 573.3 | 1.0 mbar | 16.5 mm | Pipe to Pipe | Drop | 0.30 lb | 232 psi | Transair | General Industrial | Fluid & Gas Handling | 10 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 1-1/2" (40 mm) | 1/2" (16.5 mm) | Quick Assembly Bracket | |
| 6662 40 25 | Quote Required | 152 In Stock | $59.01/each | Quick Assembly Bracket | Swan Neck | -4 °F | Low Pressure Connectors Europe Division | 40 mm | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | Inert Gases | ASME B31.1 - 31.9 | 1.0 mbar | 25 mm | Pipe to Pipe | Drop | 0,145 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par | Parker | General Industrial | Fluid & Gas Handling | 10 | 85 °C | Low Pressure Connectors Europe Division | 0.07 Hours | Air Compressed Air, Inert Gas, Vacuum | Technical Polymer | 1-1/2" (40 mm) | 1" (25 mm) | Quick Assembly Bracket | |
| 6662 50 25 | Quote Required | 149 In Stock | $64.15/each | Quick Assembly Bracket | Swan Neck | -20 °C | Low Pressure Connectors Europe Division | 50 mm | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | Compressed Air | EN 573.3 | 0.03 inch-Hg | 1 inch | Pipe to Pipe | Drop | 0.155 kg | 16 bar | Parker | General Industrial | Fluid & Gas Handling | 5 | 85 °C | Low Pressure Connectors Europe Division | 0.07 Hours | Air Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2" (50 mm) | 1" (25 mm) | Quick Assembly Bracket | |
| 6662 63 25 | Quote Required | 48 In Stock | $72.03/each | Quick Assembly Bracket | Swan Neck | -20 °C | Fluid System Connectors Division | 63 mm | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | In Plant Pneumatic | ISO 8573 (Air Quality) | 1.0 mbar | 1 inch | Pipe to Pipe | Drop | 0.17 kg | 16 bar | Transair | General Industrial | Pneumatics | 5 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2-1/2" (63 mm) | 1" (25 mm) | Quick Assembly Bracket | |
| 6663 25 22 | Quote Required | 107 In Stock | $42.29/each | Quick Assembly Bracket | Swan Neck | -4 °F | Low Pressure Connectors Europe Division | 1 inch | Technical Polymer | NPT | Pipe | Yes | Compressed Air Piping | Industrial Gas | ASME B31.1 - 31.9 | 1.0 mbar 99,9% (absolute pressure) | 1/2 inch | Pipe to Port | Drop | 0.26 lb | 232 psi | Transair | General Industrial | Pneumatics | 10 | 85 °C | Fluid System Connectors Division | 0.05 Hours | Industrial Gas | Technical Polymer | 1" (25 mm) | 1/2" | Female Threaded NPT Quick Assembly Bracket | |
| 6663 40 22 | Quote Required | 60 In Stock | $54.96/each | Quick Assembly Bracket | Swan Neck | -20 °C | Low Pressure Connectors Europe Division | 40 mm | Technical Polymer | NPT | Pipe | Yes | Compressed Air Piping | Industrial Gas | ISO 8573 (Air Quality) | 0.03 Inch-Hg 99,9% (absolute pressure) | 1/2 inch | Pipe to Port | Drop | 0,34 kg | 232 psi | Parker | General Industrial | Fluid & Gas Handling | 10 | 85 °C | Fluid System Connectors Division | 0.05 Hours | Industrial Gas | Technical Polymer | 1-1/2" (40 mm) | 1/2" | Female Threaded NPT Quick Assembly Bracket | |
| 6663 50 22 | Quote Required | 22 In Stock | $64.48/each | Quick Assembly Bracket | Swan Neck | -20 °C | Fluid System Connectors Division | 50 mm | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | Inert Gases | CE 2014/68/EU | 1.0 mbar | 1/2 inch | Pipe to Port | Drop | 0,52 lb | 232 psi | Transair | General Industrial | Fluid & Gas Handling | 5 | 85 °C | Fluid System Connectors Division | 0.05 Hours | Air Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2" (50 mm) | 1/2" | Female Threaded NPT Quick Assembly Bracket | |
| 6663 50 28 | Quote Required | 14 In Stock | $60.93/each | Quick Assembly Bracket | Swan Neck | -4 °F | Low Pressure Connectors Europe Division | 2 inch | Technical Polymer | NPT | Pipe | Yes | Compressed Air Piping | In Plant Pneumatic | EN 755.8 | 0.03 inch-Hg 99,9% (absolute pressure) | 3/4 inch | Pipe to Port | Drop | 0.56 lb | 232 psi | Parker | General Industrial | Pneumatics | 5 | 185 °F | Low Pressure Connectors Europe Division | 0.05 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2" (50 mm) | 3/4" | Female Threaded NPT Quick Assembly Bracket | |
| 6663 63 22 | Quote Required | 28 In Stock | $68.51/each | Quick Assembly Bracket | Swan Neck | -4 °F | Fluid System Connectors Division | 2-1/2 inch | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | Inert Gases | EN 573.3 | 0.03 inch-Hg 99,9% (absolute pressure) | 1/2 inch | Pipe to Port | Drop | 1,04 kg | 232 psi | Transair | General Industrial | Pneumatics | 5 | 185 °F | Fluid System Connectors Division | 0.05 Hours | Air | Technical Polymer | 2-1/2" (63 mm) | 1/2" | Female Threaded NPT Quick Assembly Bracket | |
| 6663 63 28 | Quote Required | 167 In Stock | $75.45/each | Quick Assembly Bracket | Swan Neck | -4 °F | Fluid System Connectors Division | 2-1/2 inch | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | Industrial Gas | ISO 9001 | 0.03 inch-Hg | 3/4 inch | Pipe to Port | Drop | 1,13 kg | 16 bar | Transair | General Industrial | Pneumatics | 5 | 85 °C | Fluid System Connectors Division | 0.05 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2-1/2" (63 mm) | 3/4" | Female Threaded NPT Quick Assembly Bracket | |
| 6668 25 22 | 4 In Stock | 13 In Stock | $72.05/each | Quick Assembly Bracket | Swan Neck | -4 °F | Low Pressure Connectors Europe Division | 1 inch | Technical Polymer | NPT | Pipe | Yes | Compressed Air Piping | Industrial Gas | TUV | 1.0 mbar | 1/2 inch | Pipe to Port | Drop | 0.95 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par | Parker | General Industrial | Pneumatics | 5 | 85 °C | Fluid System Connectors Division | 0.05 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 1" (25 mm) | 1/2" | Quick Assembly Bracket w/ Ball Valve | |
| 6668 40 22 | Quote Required | 207 In Stock | $78.95/each | Quick Assembly Bracket | Swan Neck | -4 °F | Fluid System Connectors Division | 40 mm | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | In Plant Pneumatic | EN 755.8 | 1.0 mbar | 1/2 inch | Pipe to Port | Drop | 0.99 lb | 16 bar | Transair | General Industrial | Pneumatics | 5 | 185 °F | Fluid System Connectors Division | 0.05 Hours | Industrial Gas | Technical Polymer | 1-1/2" (40 mm) | 1/2" | Quick Assembly Bracket w/ Ball Valve | |
| 6668 63 28 | Quote Required | 29 In Stock | $89.63/each | Quick Assembly Bracket | Swan Neck | -20 °C | Fluid System Connectors Division | 63 mm | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | Inert Gases | CE 2014/68/EU | 1.0 mbar | 3/4 inch | Pipe to Port | Drop | 1,72 lb | 232 psi | Transair | General Industrial | Pneumatics | 3 | 85 °C | Low Pressure Connectors Europe Division | 0.05 Hours | Air Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2-1/2" (63 mm) | 3/4" | Quick Assembly Bracket w/ Ball Valve | |
| RA68 25N04 | Quote Required | 9 In Stock | $35.34/each | Quick Assembly Bracket | Simple Reducing | -20 °C | Low Pressure Connectors Europe Division | 1 inch | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | In Plant Pneumatic | ASME B31.1 - 31.9 | 1.0 mbar 99,9% (absolute pressure) | 1/2 inch | Pipe to Port | Drop | 0,385 lb | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca | Parker | General Industrial | Fluid & Gas Handling | 10 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Air | Technical Polymer | 1" (25 mm) | 1/2" | Female Threaded NPT Simple Reducing Bracket | |
| RA68 40N04 | Quote Required | 258 In Stock | $45.41/each | Quick Assembly Bracket | Simple Reducing | -20 °C | Fluid System Connectors Division | 40 mm | Technical Polymer | NPT | Pipe | Yes | Compressed Air Piping | Compressed Air | ASME B31.1 - 31.9 | 1.0 mbar 99,9% (absolute pressure) | 1/2 inch | Pipe to Port | Drop | 0,42 lb | 232 psi | Parker | General Industrial | Pneumatics | 5 | 85 °C | Low Pressure Connectors Europe Division | 0.07 Hours | Air | Technical Polymer | 1-1/2" (40 mm) | 1/2" | Female Threaded NPT Simple Reducing Bracket | |
| RA68 50N04 | Quote Required | $45.36/each | Quick Assembly Bracket | Simple Reducing | -4 °F | Low Pressure Connectors Europe Division | 50 mm | Technical Polymer | NPT | Pipe | Yes | Compressed Air Piping | Inert Gases | EN 573.3 | 1.0 mbar 99,9% (absolute pressure) | 1/2 inch | Pipe to Port | Drop | 0,5 lb | 232 psi | Transair | General Industrial | Pneumatics | 5 | 85 °C | Low Pressure Connectors Europe Division | 0.07 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2" (50 mm) | 1/2" | Female Threaded NPT Simple Reducing Bracket | ||
| RA68 50N08 | Quote Required | 222 In Stock | $74.57/each | Quick Assembly Bracket | Saddle | -4 °F | Low Pressure Connectors Europe Division | 2 inch | Technical Polymer | Female | Pipe | Yes | Compressed Air Piping | Inert Gases | CE 2014/68/EU | 0.03 inch-Hg 99,9% (absolute pressure) | 1 inch | Pipe to Port | Drop | 0,52 lb | 16 bar | Transair | General Industrial | Fluid & Gas Handling | 5 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Industrial Gas Compressed Air, Inert Gas, Vacuum | Technical Polymer | 2" (50 mm) | 1" | Female Threaded NPT Simple Reducing Bracket | |
| RA69 25 17 | Quote Required | 18 In Stock | $31.81/each | Quick Assembly Bracket | Saddle | -20 °C | Fluid System Connectors Division | 1 inch | Technical Polymer | Pipe | Pipe | Yes | Compressed Air Piping | Industrial Gas | EN 755.2 | 1.0 mbar 99,9% (absolute pressure) | 16.5 mm | Pipe to Pipe | Drop | 0.085 kg | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par | Parker | General Industrial | Fluid & Gas Handling | 10 | 185 °F | Low Pressure Connectors Europe Division | 0.07 Hours | Air | Technical Polymer | 1" (25 mm) | 1/2" (16.5 mm) | Simple Reducing Bracket |
