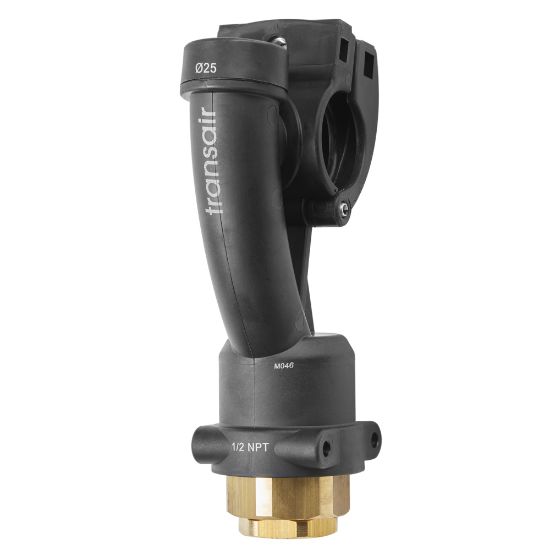

Parker 6663 25 22 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	129 In Stock

Brand Parker

Part No. 6663 25 22

$39.18

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Quantity per Box	10
Brand	Transair	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Division	Fluid System Connectors Division
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Application	Industrial Gas
Technology	Pneumatics	Assembly Time	0.05 Hours
Specifications Met	ASME B31.1 - 31.9	Maximum Operating Pressure	232 psi
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Connection 2 Type	NPT	Connection 2 Size	1/2 inch
Body Material	Technical Polymer	Connection 1 Size	1 inch
Configuration	Pipe to Port	Shape	Swan Neck
Weight	0.26 lb	Product Style	Quick Assembly Bracket
Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)	Assembly	Drop
Silicone Free	Yes	Connection 2 Size	1/2"
Body Material	Technical Polymer	Connection 1 Size	1" (25 mm)
Connection 2 Type	Female Threaded NPT Quick Assembly Bracket
